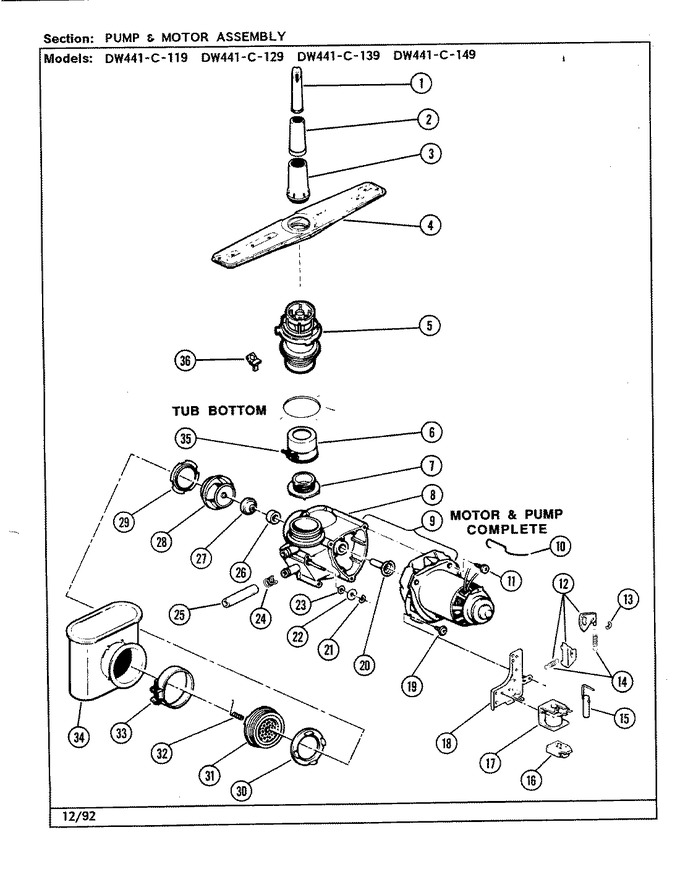

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WD22M19		Tube, Spray Top	1	Appelez-nous	-
2	3175-0001		Tube, Spray Center	1	Appelez-nous	-
3	WD22M17		Base, Spray	1	Appelez-nous	-
4	WD22M15		Arm, Wash	1	Appelez-nous	-
5	WD22M16		Hub Support & Adapter	1	Appelez-nous	-
6	2260-0010		Connector, Pump	1	Appelez-nous	-
7	2735-0005		Nut, Support	1	Appelez-nous	-
8	WG04F00655		Housing Pump Assembly   (Replaces: 2535-0001)	1		Immediately	$ 246.46
9	WG04F00655		Housing Pump Assembly   (Replaces: 2535-0001)	1		Immediately	$ 246.46
10	2510-0002		Hanger	1	Appelez-nous	-
11	3005-0113		Screw	1	Appelez-nous	-
12	2020-0004		Arm Kit, Gate Valve	1	Appelez-nous	-
13	2940-0001		Retainer	1	Appelez-nous	-
14	3070-0002		Spring, Gate Valve	1	Appelez-nous	-
15	2025-0001		Link & Armature	1	Appelez-nous	-
16	2590-0001		Insulator	1	Appelez-nous	-
17	2250-0001		Solenoid, Drain Coil	1	Appelez-nous	-
18	2145-0001		Bracket, Solenoid	1	Appelez-nous	-
19	3005-0014		Screw	1	Appelez-nous	-
20	3050-0001		Shaft Guard, Slinger	1	Appelez-nous	-
20	3040-0008		Sleeve, Centering	1	Appelez-nous	-
21	2735-0041		Nut	1	Appelez-nous	-
22	3280-0024		Washer	1	Appelez-nous	-
23	3010-0002		Seal, Shaft	1	Appelez-nous	-
24	2235-0004		Clamp, Fill Hose	1	Appelez-nous	-
25	2530-0009		Hose, Drain	1	Appelez-nous	-
26	3010-0003		Seal, Seat	1	Appelez-nous	-
27	3010-0004		Seal, Shaft	1	Appelez-nous	-
28	2560-0003		Pump Impeller	1	Appelez-nous	-
29	2945-0001		Wear Ring	1	Appelez-nous	-
30	2085-0001		Base, Wear Ring	1	Appelez-nous	-
31	2465-0002		Grader/nut	1	Appelez-nous	-
32	3070-0001		Spring, Cutter	1	Appelez-nous	-
33	WP696392		Clamp   (Replaces: 2235-0008)	1			$ 8.17
34	2575-0004		Sump-inlet	1	Appelez-nous	-
35	WP696392		Clamp   (Replaces: 2235-0007)	1			$ 8.17
36	WG04F04521		Valve   (Replaces: WD2M49)	1		Immediately	$ 3.64
