SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner


04 - Unit


05 - Ice Maker


06 - Shelf, Optional

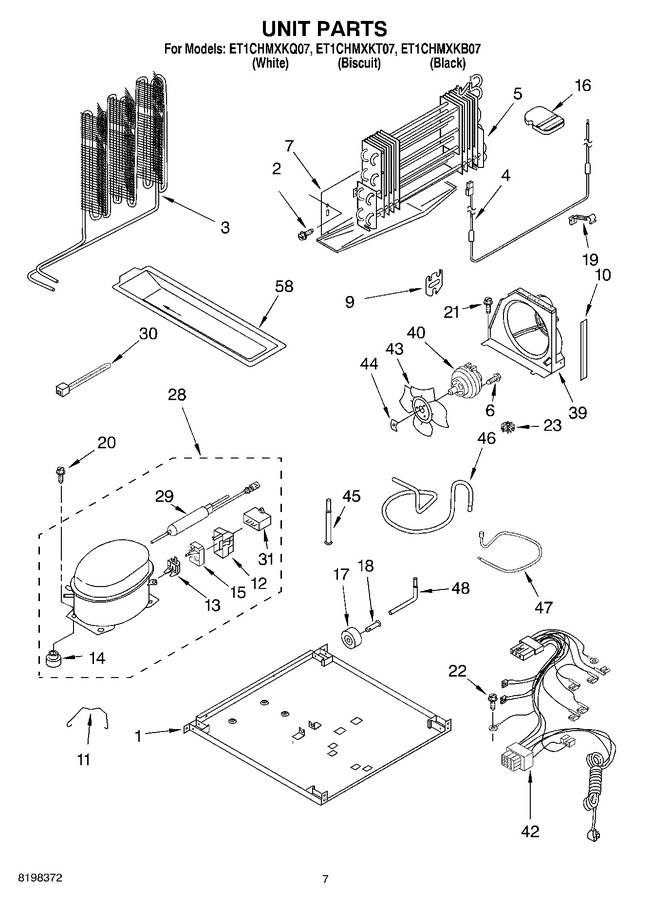

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2205340		Plate, Unit Mounting		Appelez-nous	-
2	WP489478		Screw   (Replaces: 489478)				$ 7.75
3	2210454		Condenser		Appelez-nous	-
4	WP2315530		Heater, Defrost   (Replaces: 2166124)				$ 160.18
5	2195390		Evaporator Assy.				$ 228.01
6	WP8281196		Screw   (Replaces: 489494)			Immediately	$ 7.19
7	2172620		Drain Pan		Appelez-nous	-
9	2176301		Bracket, Heater				$ 6.37
10	2163780		Extension, Air Baffle		Appelez-nous	-
11	2212997		Strap		Appelez-nous	-
12	WP2162358		Cover Service Only)   (Replaces: 4387731)				$ 90.75
13	4387913		Overload (includes Relay) (service Only)   (Replaces: 4387766)			Immediately	$ 84.39
14	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
14	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
15	8201647		Start-device Combination (start Relay And Overload For Production Compressor Only)   (Replaces: 2212963)				$ 180.03
16	2201185		Support Block				$ 8.21
17	WPW10475495		Roller (2)   (Replaces: 2150304)			Immediately	$ 32.06
18	W11594405		Rivet   (Replaces: 981126)			Immediately	$ 18.21
19	2182338		Clip, Heater				$ 6.62
20	876811		Screw   (Replaces: 489373)				$ 7.42
21	3400518		Screw				$ 12.98
22	WP489128		Screw   (Replaces: 488500)				$ 10.88
23	531933		Grommet				$ 5.70
28	W10309988		Compressor (includes Items 12,13,14,29 & 31) (also Order   (Replaces: 2218966)			Immediately	$ 559.32
28	876765		Tube Kit			Immediately	$ 86.33
28	482801		Installation Kit				$ 119.50
29	W10843121		Drier (service)   (Replaces: 4387019)			Immediately	$ 52.57
29	W10843121		Drier (production)   (Replaces: 2199167)			Immediately	$ 52.57
30	WPW10339879		Clamp   (Replaces: 2155774)				$ 7.90
31	WPW10662129		Capacitator (production)   (Replaces: 2169373)			Immediately	$ 58.86
31	WP4387764		Capacitator (service)   (Replaces: 4387764)				$ 177.04
39	2198921		Bracket		Appelez-nous	-
40	W10822259		Motor, Condenser   (Replaces: 2188537)			Immediately	$ 221.30
42	2187384		Wire Assembly Unit		Appelez-nous	-
43	2190685		Fan, Blade				$ 52.00
44	WP486692		Nut   (Replaces: 486692)				$ 7.82
45	2212603		Tube, Transition		Appelez-nous	-
46	2205533		Tube, Discharge		Appelez-nous	-
47	2214924		Tube, Suction   (Replaces: 2214990)				$ 98.29
48	2154109		Tube, Process				$ 72.63
58	876764		Valve, Access(3/16``)			Immediately	$ 91.35
58	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
58	978028		Valve, Access (1/2)		Appelez-nous	-
58	978029		Valve Access (5/8``)				$ 93.85
58	978030		Valve, Access (3/4``)				$ 130.71
58	2210451		Tray, Evaporator				$ 66.37
58	978026		Valve, Access (5/16``)			Immediately	$ 128.09
58	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64

    View Diagram in Separate Window       Print Part List
