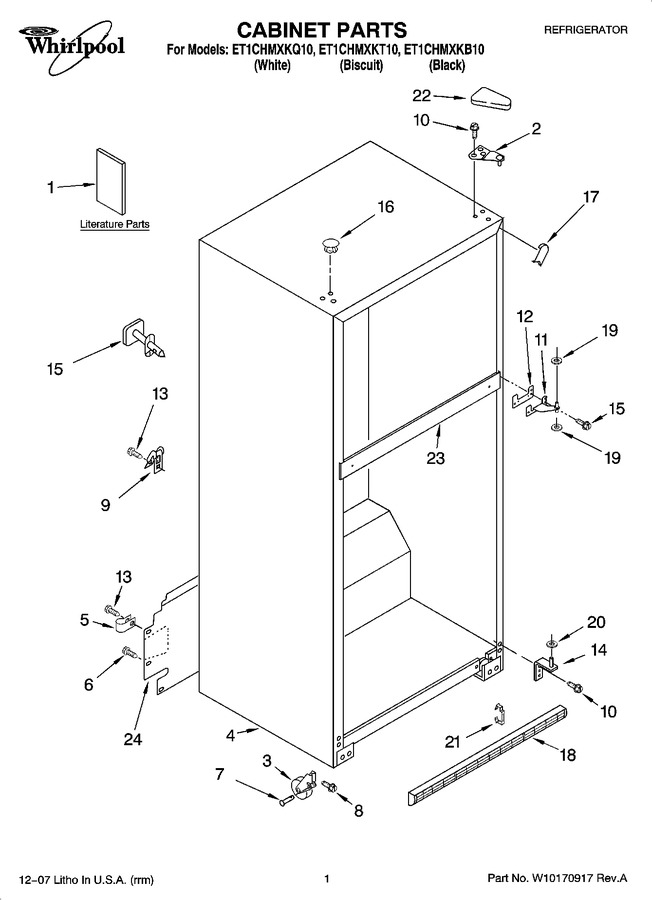

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 677969 | Do-it-yourself Manual Ref./frz. |
|
$ 30.30 | |||||
| 1 | W10142142 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10167443 | Energy Label |
|
- | |||||
| 1 | W10131409 | Use & Care Guide (bilingual) |
|
- | |||||
| 1 | W10131417 | Use & Care Guide (trilingual) |
|
- | |||||
| 1 | 2225623 | Modular Icemaker Service Sheet |
|
- | |||||
| 2 | WP2261963 | Hinge (top) (Replaces: 2189410) |
|
Immediately | $ 99.45 | ||||
| 3 | WP2166108 | Roller-front (2) (Replaces: 2166108) |
|
Immediately | $ 34.76 | ||||
| 5 | WP488366 | Clamp, Tube (water Supply Line) (Replaces: 489385) |
|
$ 11.18 | |||||
| 6 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.47 | |||||
| 7 | W11594405 | Rivet (Replaces: 2179826) |
|
Immediately | $ 18.21 | ||||
| 8 | WP3400504 | Screw (Replaces: 3400504) |
|
$ 7.19 | |||||
| 9 | 549193 | Clamp-cord |
|
$ 13.39 | |||||
| 10 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 11 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 87.64 | ||||
| 12 | WP2183854 | Shim, Hinge Center (Replaces: 2183854) |
|
$ 10.89 | |||||
| 13 | WP489464 | Screw (Replaces: 8281265) |
|
Immediately | $ 7.83 | ||||
| 14 | WP2254473 | Hinge Butt (Replaces: 2254473) |
|
$ 8.47 | |||||
| 16 | WP2183998 | Hole Plug (6) (black) (Replaces: 2183998) |
|
$ 18.10 | |||||
| 16 | WP2151652 | Hole Plug (6) (white) (Replaces: 2201012) |
|
$ 21.78 | |||||
| 16 | 2200924 | Hole Plug (6) (biscuit) |
|
- | |||||
| 17 | W11252732 | Corner Filler (2) (black) (Replaces: 2201017) |
|
$ 12.45 | |||||
| 17 | W10283958 | Corner Filler (2) (biscuit) (Replaces: 2200926) |
|
$ 24.41 | |||||
| 17 | WPW10283959 | Corner Filler (2) (white) (Replaces: 2201014) |
|
$ 7.82 | |||||
| 18 | 2254315 | Grille (includes Illus. 21) (black) |
|
$ 41.54 | |||||
| 18 | 2254313 | Grille (includes Illus. 21) (white) |
|
$ 41.62 | |||||
| 18 | 2254316 | Grille (includes Illus. 21) (biscuit) |
|
- | |||||
| 19 | WP489467 | Washer (Replaces: 489341) |
|
Immediately | $ 10.88 | ||||
| 20 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 21 | 2189356 | Clip-grille (2) |
|
$ 5.70 | |||||
| 22 | WP2213363 | Cover, Hinge (black) (Replaces: 2213363) |
|
Immediately | $ 18.21 | ||||
| 22 | 2213364 | Cover-hinge (biscuit) |
|
$ 17.80 | |||||
| 22 | WP2213360 | Cover-hinge (white) (Replaces: 2213360) |
|
$ 19.23 | |||||
| 24 | 2254576 | Cover, Unit |
|
$ 48.13 |
