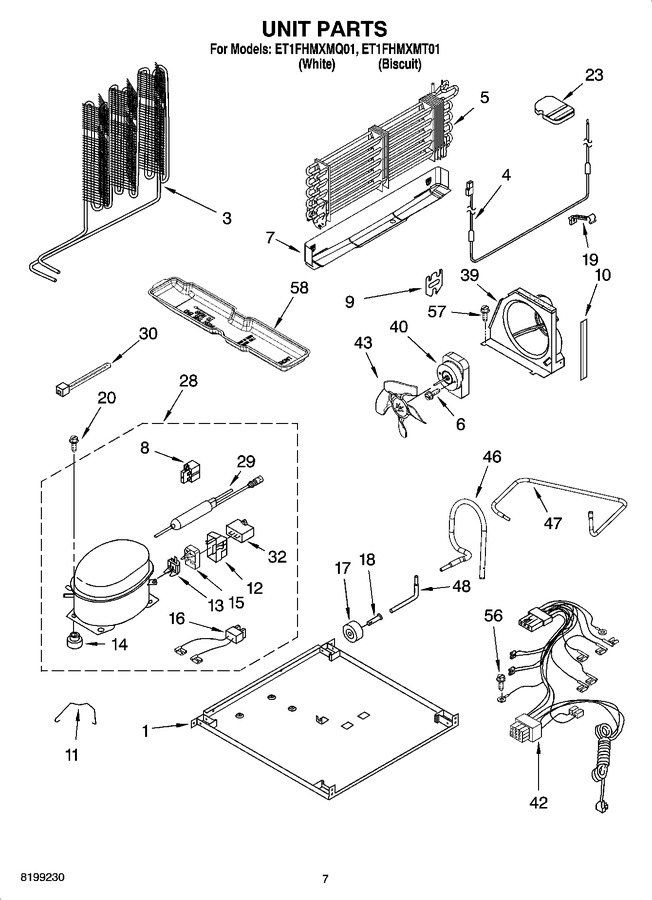

04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2225596 | Plate, Unit Mounting |
|
- | |||||
| 3 | 2214960 | Condenser |
|
$ 141.57 | |||||
| 4 | WP2315530 | Heater, Defrost (Replaces: 2166124) |
|
$ 160.18 | |||||
| 5 | 2254249 | Evaporator Assy |
|
$ 239.15 | |||||
| 6 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 11.06 | ||||
| 7 | 2254295 | Drain Pan |
|
$ 74.91 | |||||
| 8 | 2183454 | Relay (service Only) |
|
- | |||||
| 9 | 2176301 | Bracket, Heater |
|
$ 6.37 | |||||
| 10 | 2300638 | Extension, Air Baffle |
|
$ 52.69 | |||||
| 11 | 2212996 | Strap (Replaces: 2255113) |
|
$ 12.11 | |||||
| 12 | WP2162358 | Cover Service Only) (Replaces: 4387731) |
|
$ 90.75 | |||||
| 13 | WP2214067 | Overload (service Only) (Replaces: 4390624) |
|
$ 131.66 | |||||
| 14 | 876811 | Grommet (4) (production) (Replaces: 1100826) |
|
$ 7.42 | |||||
| 14 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 6.95 | |||||
| 15 | WP2225785 | Start-device Combination (start Relay And Overload For Production Compressor Only) (Replaces: 2225785) |
|
$ 177.87 | |||||
| 16 | WP2172890 | Wire Assembly (service Only) (Replaces: 4387765) |
|
$ 8.10 | |||||
| 17 | WPW10475495 | Roller (2) (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 18 | W11594405 | Rivet (Replaces: 2221797) |
|
Immediately | $ 18.21 | ||||
| 19 | 2182338 | Clip, Heater |
|
$ 6.62 | |||||
| 20 | 876811 | Screw (Replaces: 489373) |
|
$ 7.42 | |||||
| 23 | 2201185 | Support Block |
|
$ 8.21 | |||||
| 28 | W10309988 | Compressor (includes Items 8,12,13,14,16, 29 & 32) (Replaces: 2225833) |
|
Immediately | $ 559.32 | ||||
| 29 | W10843121 | Drier (production) (Replaces: 2199167) |
|
Immediately | $ 52.57 | ||||
| 29 | W10843121 | Drier (service) (Replaces: 4387019) |
|
Immediately | $ 52.57 | ||||
| 30 | WPW10339879 | Clamp (Replaces: 2155774) |
|
$ 7.90 | |||||
| 32 | WPW10662129 | Capacitor (production) (Replaces: 2169373) |
|
Immediately | $ 58.86 | ||||
| 32 | WPW10662129 | Capacitor (service) (Replaces: 1118576) |
|
Immediately | $ 58.86 | ||||
| 39 | 2302249 | Air Baffle |
|
$ 37.70 | |||||
| 40 | WP2188874 | Motor, Condenser (Replaces: 2188874) |
|
Immediately | $ 113.96 | ||||
| 42 | 2187382 | Wire Assy. Unit |
|
$ 264.30 | |||||
| 43 | W11458267 | Fan Blade (Replaces: 2225834) |
|
Immediately | $ 23.99 | ||||
| 46 | 2225564 | Tube, Discharge |
|
- | |||||
| 47 | 2225565 | Tube, Suction |
|
- | |||||
| 48 | 2154109 | Tube, Process |
|
$ 72.63 | |||||
| 56 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.88 | |||||
| 57 | 3400518 | Screw |
|
$ 12.98 | |||||
| 58 | N/A | Refrigerant Charge 4.00 Ozs. (r134a) |
|
- | |||||
| 58 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 58 | 978030 | Valve, Access (3/4``) |
|
$ 130.71 | |||||
| 58 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 91.35 | ||||
| 58 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 105.25 | ||||
| 58 | 8201826 | Tray, Evaporator (Replaces: 2300635) |
|
$ 156.93 | |||||
| 58 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 128.09 | ||||
| 58 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 58 | 978028 | Valve, Access (1/2) |
|
- |
