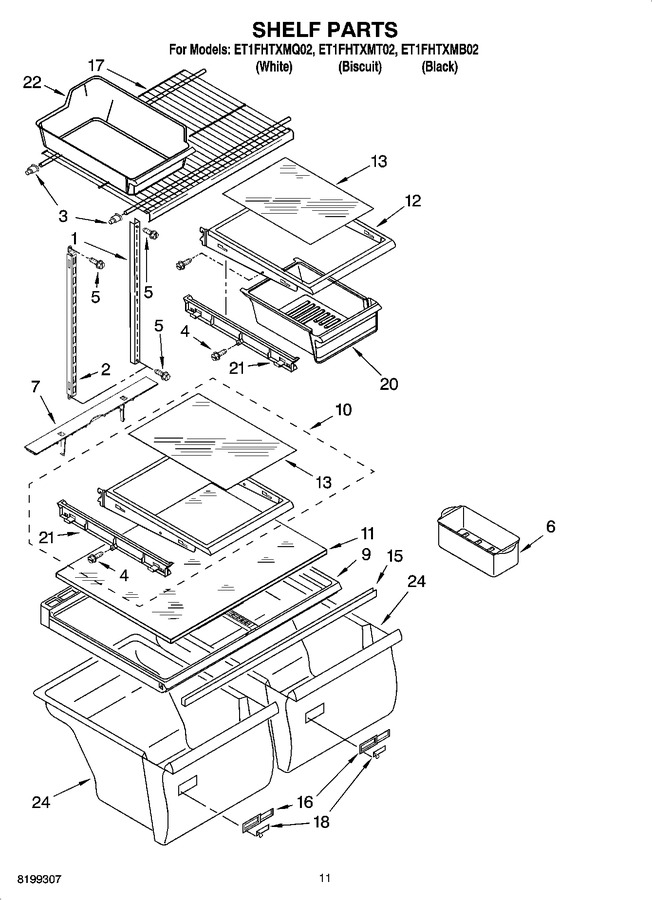

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2210522 | Shelf, Ladder (2) |
|
$ 44.10 | |||||
| 2 | 2300520 | Shelf, Ladder Center |
|
$ 75.36 | |||||
| 3 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 14.00 | ||||
| 4 | WP3400065 | Screw (2) (Replaces: 3400065) |
|
Immediately | $ 7.74 | ||||
| 5 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 6 | W10136387A | Egg Bin (Replaces: 2216624) |
|
$ 18.61 | |||||
| 7 | 2254458 | Deflector, Air (crisper Pan) |
|
$ 68.24 | |||||
| 9 | WP2314549 | Crisper Cover (Replaces: 2210526) |
|
$ 265.81 | |||||
| 10 | 2214911 | Shelf, Cantilever |
|
$ 116.35 | |||||
| 11 | WP2176225 | Insert, Crisper Cover (Replaces: 2210573) |
|
$ 251.82 | |||||
| 12 | 2214909K | Pan, Shelf Cantilever |
|
- | |||||
| 13 | 2214913 | Glass, Shelf |
|
- | |||||
| 15 | WP2172748 | Crisper, Support (Replaces: 2163832) |
|
$ 97.22 | |||||
| 16 | W11819839 | Body, Humidity Control (Replaces: 2212446) |
|
$ 15.06 | |||||
| 17 | 2184667 | Shelf, Freezer |
|
- | |||||
| 18 | WP2176222 | Slide, Humidity Control (Replaces: 2176222) |
|
$ 27.35 | |||||
| 20 | WP2218132K | Pan, Meat (Replaces: 2218132K) |
|
Immediately | $ 159.64 | ||||
| 21 | 2214892 | Track, Pan Slide |
|
- | |||||
| 22 | 2254352A | Bucket, Ice (Replaces: 2254352) |
|
$ 55.85 | |||||
| 24 | W10854037 | Crisper Pan (includes Illus. 16 & 18) (Replaces: 2218141) |
|
Immediately | $ 170.66 |
