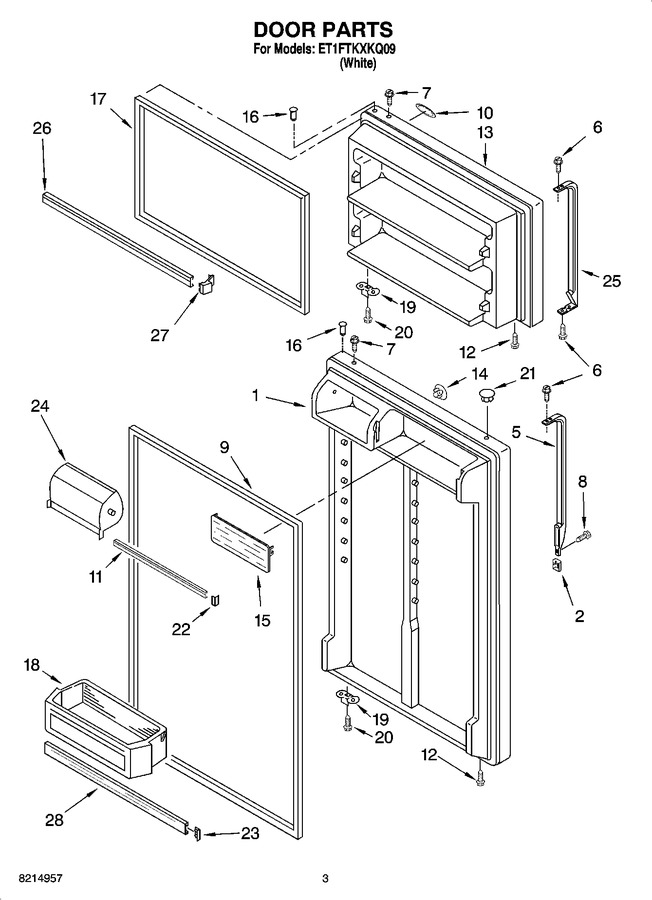

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11023679		Refrigerator Door (includes Illus. 9 & 16)   (Replaces: 2183920)				$ 722.23
2	WP2193353W		Handle, Trim   (Replaces: 2193353W)				$ 8.11
5	4388947		Handle, Refrigerator   (Replaces: 2213112W)				$ 194.73
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.19
7	WP8281206		Screw   (Replaces: 8281206)				$ 7.94
8	WP8281146		Screw   (Replaces: 8281146)				$ 7.56
9	2159061		Door Gasket, Magnetic   (Replaces: 2202875)			Immediately	$ 183.67
10	WP2213265		Nameplate   (Replaces: 2262218)			Immediately	$ 88.74
11	WP2201061		Trim, Door Shelf   (Replaces: 2195378)				$ 118.40
12	WP489427		Screw   (Replaces: 489427)				$ 7.47
13	W11023679		Freezer Door (includes Illus. 16 & 17)   (Replaces: 2182489)				$ 722.23
14	WP2189000		Hole Plug, Handle   (Replaces: 2189000)			Immediately	$ 7.40
15	WP2188236		Shelf, Flip-up   (Replaces: 2188236)				$ 61.31
16	WP2314293		Thimble   (Replaces: 2314293)				$ 7.19
17	2159060		Door Gasket, Magnetic   (Replaces: 2214967)				$ 320.01
18	WP2204812		Bin, Door Shelf   (Replaces: 2204812)				$ 76.62
19	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 13.37
20	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
21	WP2212648		Hole Plug (2)   (Replaces: 2212648)			Immediately	$ 7.80
22	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.65
23	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
24	WP2218118		Compartment Door   (Replaces: 2218118)				$ 78.02
25	4388947		Handle, Freezer   (Replaces: 2213111W)				$ 194.73
26	2195947		Trim-door (2)				$ 50.94
27	WP2195916K		Endcap (4)   (Replaces: 2195916)			Immediately	$ 12.55
28	WPW10421486		Trim, Door   (Replaces: 2195948)				$ 109.28
