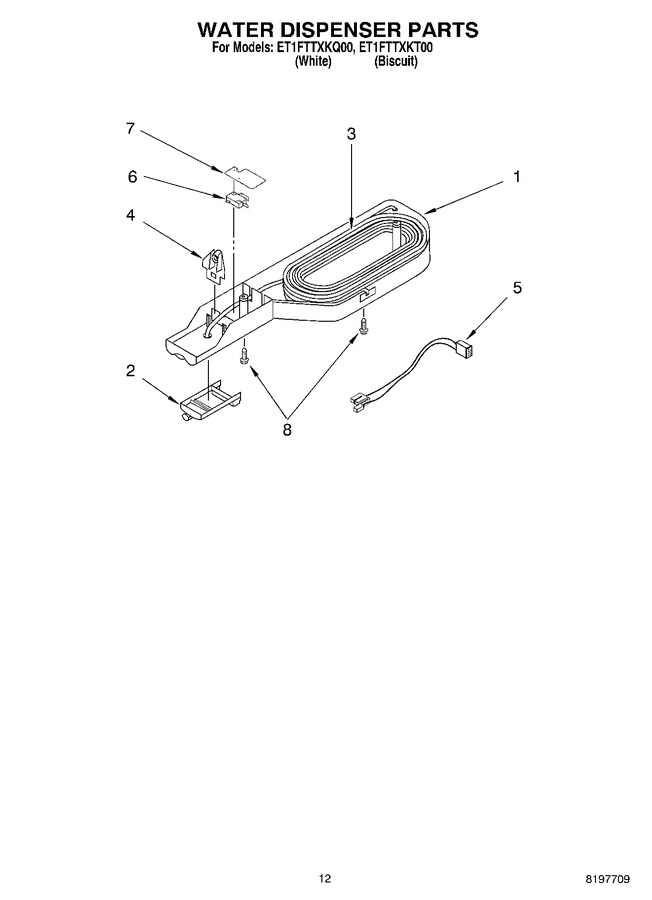

07 - Water Dispenser, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2210500 | Housing, Dispenser |
|
- | |||||
| 2 | 2210567 | Button, Dispenser |
|
- | |||||
| 3 | 2210513 | Reservoir, Tube |
|
- | |||||
| 4 | 2210523 | Flange, Tube |
|
- | |||||
| 5 | 2187291 | Wire Assembly |
|
- | |||||
| 6 | WP2162361 | Switch (Replaces: 2162361) |
|
Immediately | $ 27.34 | ||||
| 7 | 2210547 | Shield, Switch |
|
- | |||||
| 8 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.18 | ||||
| 8 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 231.56 | |||||
| 8 | W11544659 | Screw 8-18 X 1 1/4 (2) (Replaces: 489415) |
|
$ 13.67 | |||||
| 8 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | ||||
| 8 | 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | |||||
| 8 | 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 231.56 | |||||
| 8 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 8 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 49.29 | |||||
| 8 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 78.45 | |||||
| 8 | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 8 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 8 | 350942 | Primer, White (12 Oz. Spray Can) |
|
$ 89.66 | |||||
| 8 | 285006 | Enamel, Black (12 Oz. Spray Can) (Replaces: 350939) |
|
$ 57.04 | |||||
| 8 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | ||||
| 8 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 8 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 8 | 1117510 | Torx Key |
|
$ 5.84 | |||||
| 8 | 833938 | Kit, Terminal Connector |
|
$ 8.07 | |||||
| 8 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 17.91 | |||||
| 8 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 8 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 8 | 350956 | Enamel, Almond (12 Oz. Spray Can) |
|
$ 51.44 | |||||
| 8 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 117.94 | |||||
| 8 | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| 8 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 173.95 | ||||
| 8 | 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 231.56 |
