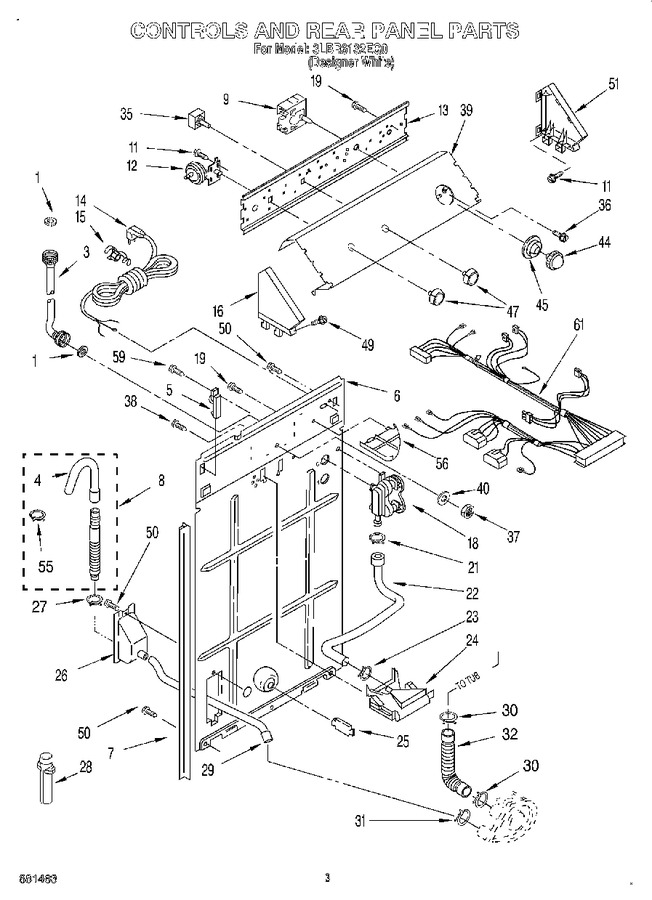

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) (1-1/16 X 5/8) (Replaces: 16123) |
|
$ 8.16 | |||||
| 3 | WPW10489643 | Hose, Water Inlet (2) (hose, Inlet) (Replaces: 3366916) |
|
$ 81.86 | |||||
| 4 | WP3357027 | Nozzle-drain Hose (Replaces: 3357027) |
|
$ 97.86 | |||||
| 5 | 387402 | Hinge, Console (2) |
|
$ 5.84 | |||||
| 6 | 3951136 | Panel, Rear |
|
- | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 27.57 | |||||
| 8 | 285666 | Hose, Drain (9 Ft.) (not Included) (Replaces: 661577) |
|
Immediately | $ 62.34 | ||||
| 8 | 285664 | Hose, Drain (4 Ft.) (Replaces: 3951609) |
|
Immediately | $ 36.89 | ||||
| 8 | 285702 | Extension, Drain Hose (21 Inches) (not Included) (Replaces: 3357090) |
|
Immediately | $ 63.94 | ||||
| 9 | 3950560 | Timer, Control (50 Hz.) (motor Not A Service Part) |
|
$ 181.26 | |||||
| 11 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 12 | WP3356467 | Switch, Water Level (Replaces: 3356468) |
|
$ 178.70 | |||||
| 13 | 3948814 | Bracket, Control |
|
- | |||||
| 14 | 3950970 | Cord, Power |
|
- | |||||
| 15 | 387710 | Strain Relief, Power Cord |
|
- | |||||
| 16 | 3950975 | Cap, End (l.h.) |
|
- | |||||
| 18 | WP3360397 | Valve, Water Mixing (Replaces: 3360397) |
|
$ 302.44 | |||||
| 19 | WP3351614 | Screw, 10-24 X 3/8 (2) (Replaces: 90864) |
|
Immediately | $ 7.30 | ||||
| 21 | WP596669 | Clamp, Hose (Replaces: 370451) |
|
Immediately | $ 8.82 | ||||
| 22 | WP3357328 | Hose, Vacuum Break (Replaces: 62662) |
|
Immediately | $ 24.78 | ||||
| 23 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 8.82 | ||||
| 24 | WP3347034 | Break, Vacuum (Replaces: 3347034) |
|
Immediately | $ 75.28 | ||||
| 25 | WP8519200 | Support, Rear Panel (Replaces: 63290) |
|
Immediately | $ 19.85 | ||||
| 26 | WPW10358149 | Connector, Drain Hose (Replaces: 3355497) |
|
Immediately | $ 48.16 | ||||
| 27 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 28 | 3363920A | Adapter-drain Hose (Replaces: 3363920) |
|
$ 9.23 | |||||
| 29 | 3359816 | Hose, Pump To Drain |
|
- | |||||
| 30 | WP616099 | Clamp, Hose (Replaces: 371504) |
|
Immediately | $ 8.58 | ||||
| 31 | WP371502 | Clamp, Hose (Replaces: 371507) |
|
$ 12.31 | |||||
| 32 | 285871 | Hose, Pump To Tub (Replaces: 3950340) |
|
Immediately | $ 28.99 | ||||
| 35 | WPW10168256 | Switch, Water Temperature (Replaces: 661612) |
|
Immediately | $ 135.25 | ||||
| 36 | W10915367 | Screw, Timer Mounting (10-32 X 1) (2) (Replaces: 3400808) |
|
- | |||||
| 37 | W10080180 | Nut (Replaces: 271166) |
|
$ 14.15 | |||||
| 38 | WP308544 | Screw (Replaces: 274707) |
|
Immediately | $ 8.30 | ||||
| 39 | 3950962 | Panel, Console |
|
- | |||||
| 40 | 138479 | Washer |
|
- | |||||
| 44 | W10807860 | Knob, Timer (Replaces: 3948580) |
|
Immediately | $ 52.47 | ||||
| 45 | WP3957841 | Dial, Timer (Replaces: 3948587) |
|
$ 47.62 | |||||
| 47 | WP3957796 | Knob, Control (Replaces: 3950759) |
|
Immediately | $ 57.57 | ||||
| 49 | WP388326 | Screw, 8-18 (panel To Top) (Replaces: 388326) |
|
$ 9.29 | |||||
| 50 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 8.25 | |||||
| 51 | 3950974 | Cap, End (r.h.) |
|
- | |||||
| 55 | WP3357331 | Clamp, Drain Hose (Replaces: 3366913) |
|
$ 8.19 | |||||
| 56 | 3950571 | Shield, Inlet |
|
- | |||||
| 59 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 61 | 3950852 | Harness, Wiring (for Detail See Wiring Harness Parts Page) Also See Clips. |
|
- |
