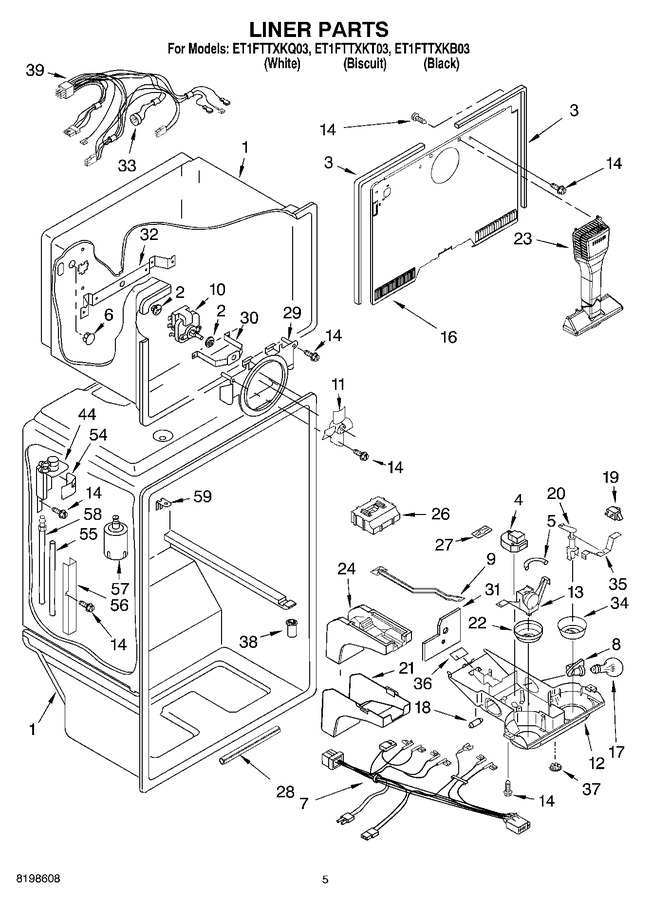

03 - Liner Parts
04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts
07 - Water Dispenser Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP2264462 | Grommet (2) (Replaces: 2197380) |
|
Immediately | $ 43.97 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (2) (Replaces: 2254360) |
|
$ 26.78 | |||||
| 4 | W10822278 | Defrost Timer (Replaces: 2188376) |
|
Immediately | $ 34.44 | ||||
| 5 | 2212485 | Thermostat Tube Barrier |
|
$ 5.92 | |||||
| 6 | WP941839 | Hole, Plug (Replaces: 941839) |
|
$ 7.65 | |||||
| 7 | 2187308 | Wire Assembly Control Box |
|
- | |||||
| 8 | 4387478 | Socket, Light (2) (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 9 | 2179858 | Damper, Air |
|
- | |||||
| 10 | WPW10189703 | Fan Motor (Replaces: 2214986) |
|
Immediately | $ 70.17 | ||||
| 11 | WP2163777 | Fan Blade (Replaces: 2163777) |
|
Immediately | $ 66.15 | ||||
| 12 | 2210530 | Control Box |
|
- | |||||
| 13 | 2210491 | Thermostat Assy. (includes Items 5, 18 & 36) |
|
$ 112.84 | |||||
| 14 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 16 | 2254263 | Cover, Evaporator |
|
- | |||||
| 17 | 8009 | Light Bulb (2) (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 18 | 2200831 | Weight, Thermal |
|
- | |||||
| 19 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 37.23 | ||||
| 20 | 2179859 | Post, Damper |
|
- | |||||
| 21 | 2176281 | Cover, Air Diffuser |
|
$ 41.64 | |||||
| 22 | W10829461 | Knob, Thermostat (Replaces: 2200863) |
|
$ 30.39 | |||||
| 23 | WP2254354 | Air Tower (Replaces: 2254354) |
|
$ 103.09 | |||||
| 24 | WP2189452 | Air Diffuser, Bottom (Replaces: 2189452) |
|
Immediately | $ 124.79 | ||||
| 26 | 2204690 | Air Diffuser, Top |
|
$ 135.07 | |||||
| 27 | 2176341 | Clip, Retaining |
|
- | |||||
| 28 | 2214981 | Insulation, Water Tube |
|
- | |||||
| 29 | 2218696 | Bracket, Fan Motor |
|
- | |||||
| 30 | 2214979 | Bracket, Evap. Fan, Front |
|
$ 56.05 | |||||
| 31 | 2204639 | Shield, Heat |
|
- | |||||
| 32 | 2214976 | Bracket, Evap. Fan, Rear |
|
$ 29.44 | |||||
| 33 | WP4387503 | Defrost Bi-metal (Replaces: 2221677) |
|
Immediately | $ 47.89 | ||||
| 34 | 2176297 | Knob, Damper |
|
- | |||||
| 35 | 2163810 | Bracket, Damper Knob |
|
$ 6.01 | |||||
| 36 | WP2205079 | Seal, Rearthermostat (Replaces: 2205079) |
|
$ 9.53 | |||||
| 37 | 940014 | Hole Plug, Control Box |
|
$ 18.33 | |||||
| 38 | WP2210509 | Valve-tube, Body (Replaces: 2171931) |
|
$ 94.43 | |||||
| 39 | 2187690 | Wire Assembly, Freezer Compartment |
|
- | |||||
| 44 | 2210510 | Bracket Assembly, Water Filter |
|
- | |||||
| 54 | 2210504 | Cover, Filter |
|
- | |||||
| 55 | 2210518 | Tube, Filter Inlet |
|
- | |||||
| 56 | 2210521 | Cover, Tubing |
|
- | |||||
| 57 | 2206039 | Cartridge, Filter |
|
- | |||||
| 58 | W10823511 | Tube, Filter Outlet (Replaces: 2181943) |
|
Immediately | $ 32.41 | ||||
| 59 | 2210563 | Clip, Retainer |
|
- |
