SELECT A DIAGRAM

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts

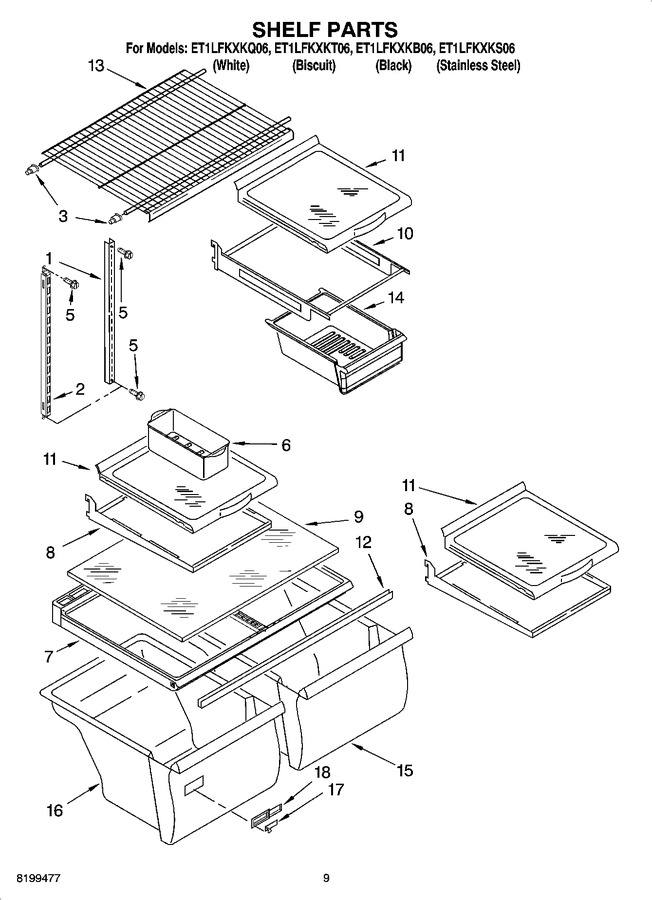

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2210522		Shelf, Ladder (2)				$ 44.10
2	2300520		Shelf, Ladder Center				$ 75.36
3	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.00
5	WP489478		Screw   (Replaces: 489478)				$ 7.75
6	W10136387A		Egg Bin   (Replaces: 2216624)				$ 18.61
7	WP2314549		Crisper Cover   (Replaces: 2210524)				$ 265.81
8	2225698		Frame Assembly, Shelf		Appelez-nous	-
9	WP2176225		Insert, Crisper Cover   (Replaces: 2210573)				$ 251.82
10	2205162		Frame Assembly, Meat Shelf				$ 83.71
11	WP999520		Shelf, Assembly Spillguard   (Replaces: 2225721)				$ 260.59
12	WP2172748		Crisper, Support   (Replaces: 2163832)				$ 97.22
13	2184667		Shelf, Freezer		Appelez-nous	-
14	WP2218132K		Pan, Meat   (Replaces: 2218132K)			Immediately	$ 159.64
15	W10854037		Crisper Pan   (Replaces: 2218124)			Immediately	$ 170.66
16	W10854037		Crisper Pan (includes Illus. 17 & 18)   (Replaces: 2218141)			Immediately	$ 170.66
17	WP2176222		Slide, Humidity Control   (Replaces: 2176222)				$ 27.35
18	W11819839		Body, Humidity Control   (Replaces: 2212446)				$ 15.06
	1117510		Torx Key				$ 5.84
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	350942		Primer, White (12 Oz. Spray Can)				$ 89.66
	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	4392899		Brush Touch-up Kit (biscuit			Immediately	$ 26.45
	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	833938		Kit, Terminal Connector				$ 8.07
	W11729596		Eckmf-94   (Replaces: 2155469)			Immediately	$ 150.98
	N/A		Torx Screw Wrench		Appelez-nous	-
	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56

    View Diagram in Separate Window       Print Part List
