01 - Cabinet Parts
02 - Door Parts

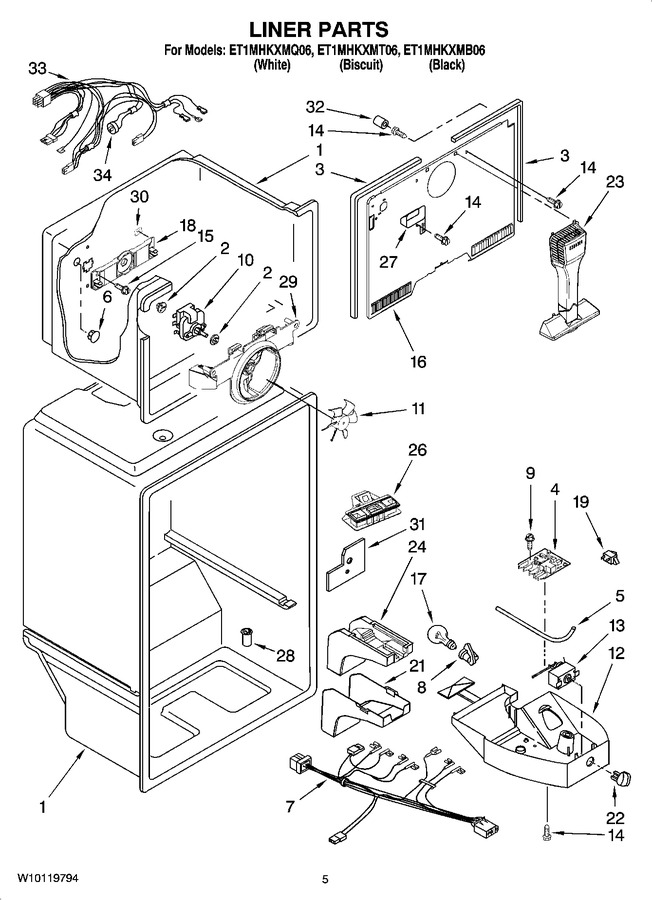

03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP2264462 | Grommet (2) (Replaces: 2197380) |
|
Immediately | $ 43.97 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (2) (Replaces: 2254360) |
|
$ 26.78 | |||||
| 4 | WP2304099 | Defrost Timer (Replaces: 2304099) |
|
Immediately | $ 296.24 | ||||
| 5 | WP2196003 | Thermostat Tube, Barrier (Replaces: 2204640) |
|
$ 7.95 | |||||
| 6 | WP941839 | Hole, Plug (Replaces: 941839) |
|
$ 7.65 | |||||
| 7 | 2310077 | Wire Assembly, Control Box |
|
- | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 9 | 8534009 | Screw (2) |
|
- | |||||
| 10 | WPW10189703 | Fan Motor (Replaces: 2214986) |
|
Immediately | $ 70.17 | ||||
| 11 | WP2163777 | Fan Blade (Replaces: 2163777) |
|
Immediately | $ 66.15 | ||||
| 12 | 2218380 | Control Box |
|
- | |||||
| 13 | WP2204605 | Thermostat (Replaces: 2225460) |
|
Immediately | $ 99.88 | ||||
| 14 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 15 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.54 | |||||
| 16 | 2254263 | Cover, Evaporator |
|
- | |||||
| 17 | W10887190 | Light Bulb (Replaces: 2160708) |
|
Immediately | $ 18.31 | ||||
| 18 | 2254454 | Bracket, Evap. Fan, Rear |
|
Immediately | $ 75.44 | ||||
| 19 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 37.23 | ||||
| 21 | 2176281 | Cover, Air Diffuser |
|
$ 41.64 | |||||
| 22 | WP2202885 | Knob, Thermostat (Replaces: 2202885) |
|
$ 26.38 | |||||
| 23 | WP2254354 | Air Tower (Replaces: 2254354) |
|
$ 103.09 | |||||
| 24 | WP2189452 | Air Diffuser, Bottom (Replaces: 2189452) |
|
Immediately | $ 124.79 | ||||
| 26 | 2212439 | Air Separator Assembly |
|
- | |||||
| 27 | 2205003 | Cover, Hole |
|
- | |||||
| 28 | WP2210509 | Valve, Tube-body (Replaces: 2210509) |
|
$ 94.43 | |||||
| 29 | 2254453 | Bracket Fan Motor |
|
$ 45.87 | |||||
| 30 | 2320183 | Retainer-screw |
|
- | |||||
| 31 | 2204639 | Shield, Heat |
|
- | |||||
| 32 | WP487996 | Cap (Replaces: 487996) |
|
$ 8.26 | |||||
| 33 | 2310099 | Wire Assembly Freezer Compartment (includes Item 34) |
|
- | |||||
| 34 | WP2321800 | Defrost, Bi-metal (Replaces: 2319915) |
|
Immediately | $ 120.87 |
