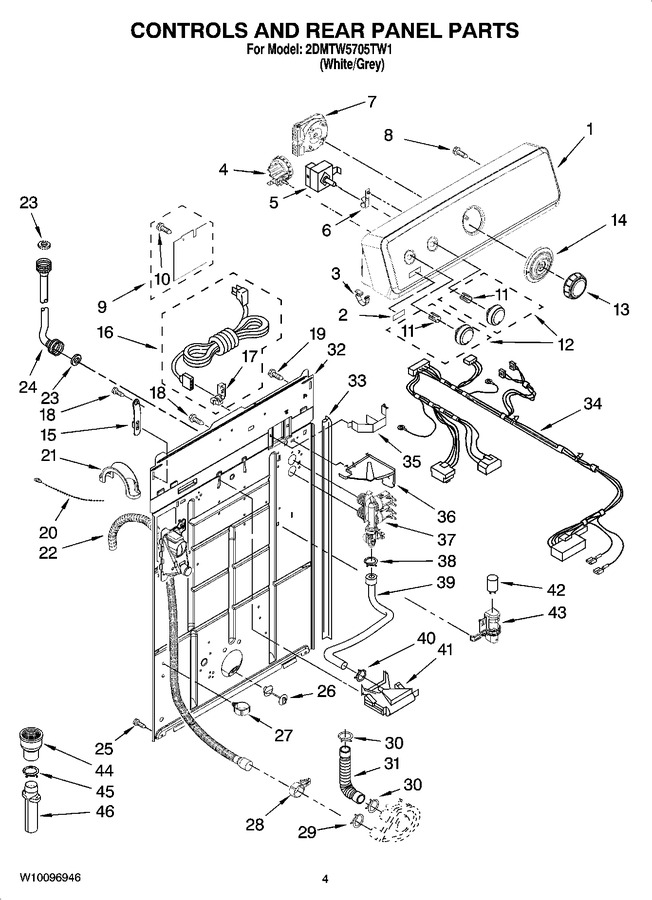

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10096815 | Console & Shell Assembly (includes Items 2 & 3) |
|
- | |||||
| 2 | W10203949 | Badge Assembly |
|
$ 72.04 | |||||
| 3 | WP8312709 | Clip-console (2) (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 4 | W10339251 | Switch, Water Level (Replaces: 8577844) |
|
Immediately | $ 307.01 | ||||
| 5 | 8578338 | Switch, Water Temperature |
|
$ 58.59 | |||||
| 6 | 8317975 | Retainer, Harness |
|
$ 5.86 | |||||
| 7 | W10113771 | Timer (motor Not A Service Part) |
|
- | |||||
| 8 | 3400073 | Screw, Ground |
|
- | |||||
| 9 | W10093726 | Shield Assembly |
|
- | |||||
| 10 | W10000080 | Rivet |
|
- | |||||
| 11 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 12 | WPW10110035 | Knob, Control (Replaces: W10110035) |
|
$ 60.98 | |||||
| 13 | WPW10110033 | Knob, Timer (Replaces: W10110033) |
|
$ 67.07 | |||||
| 14 | W10112571 | Dial, Timer |
|
$ 50.94 | |||||
| 15 | WP8568314 | Strap, Console (Replaces: 8568314) |
|
$ 8.17 | |||||
| 16 | W10820044 | Cord, Power (Replaces: 8578842) |
|
$ 149.87 | |||||
| 17 | 3952821 | Strain Relief, Power Cord |
|
- | |||||
| 18 | WP9740848 | Screw, 8-18 X 1/2 (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 19 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 7.30 | ||||
| 20 | WPW10339879 | Cable Tie (Replaces: 3347868) |
|
$ 8.30 | |||||
| 21 | WP8577378 | U-bend, Drain Hose (Replaces: 8577378) |
|
$ 8.37 | |||||
| 22 | WPW10096921 | Drain Hose Assembly (includes Items 27 & 28) (Replaces: W10096921) |
|
Immediately | $ 67.38 | ||||
| 23 | WP16123 | Washer, Water Inlet Hose (4) (Replaces: W10242307) |
|
$ 8.16 | |||||
| 24 | WP89503 | Hose, Water Inlet (cold Water) (Replaces: W10194208) |
|
Immediately | $ 24.09 | ||||
| 24 | WP89503 | Hose, Water Inlet (hot Water) (Replaces: 8571378) |
|
Immediately | $ 24.09 | ||||
| 25 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 8.25 | |||||
| 26 | WP8519200 | Support, Rear Panel (Replaces: 8519200) |
|
Immediately | $ 19.85 | ||||
| 27 | 8541667 | Clamp, Hose |
|
$ 5.86 | |||||
| 28 | 8541668 | Clamp, Hose |
|
$ 22.32 | |||||
| 29 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.81 | ||||
| 30 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 8.58 | ||||
| 31 | 285871 | Hose, Pump To Tub (includes Item 30) (Replaces: 3951449) |
|
Immediately | $ 28.99 | ||||
| 32 | 8318015 | Panel, Rear |
|
$ 148.59 | |||||
| 33 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 27.57 | |||||
| 34 | W10113810 | Harness, Wiring (for Detail See Pages 10 & 11) |
|
$ 212.74 | |||||
| 35 | 8055003 | Clip, Harness & Pressure Hose |
|
$ 36.24 | |||||
| 36 | 8539874 | Shield, Suds |
|
$ 7.01 | |||||
| 37 | WP8578343 | Valve, Water Inlet W/bi-metal (Replaces: 8578343) |
|
Immediately | $ 187.31 | ||||
| 38 | WP596669 | Clamp, Hose (Replaces: 301958) |
|
Immediately | $ 8.82 | ||||
| 39 | WP8317926 | Hose, Vacuum Break (Replaces: 8317974) |
|
Immediately | $ 24.87 | ||||
| 40 | WP596669 | Clamp, Hose (Replaces: 370450) |
|
Immediately | $ 8.82 | ||||
| 41 | WP3360977 | Break, Vacuum (Replaces: 387606) |
|
Immediately | $ 50.46 | ||||
| 42 | WP8572717 | Capacitor, Motor Start (Replaces: W10244889) |
|
Immediately | $ 80.14 | ||||
| 43 | 8318046 | Clip, Capacitor |
|
$ 79.31 | |||||
| 44 | WP8577375 | Coupler, Drain Hose (Replaces: 8577375) |
|
$ 8.47 | |||||
| 45 | WP285655 | Clamp, Hose (2) (Replaces: 285655) |
|
Immediately | $ 8.81 | ||||
| 46 | 3363920A | Adapter, Drain Hose (Replaces: 3363920) |
|
$ 9.23 |
