New Model Search:

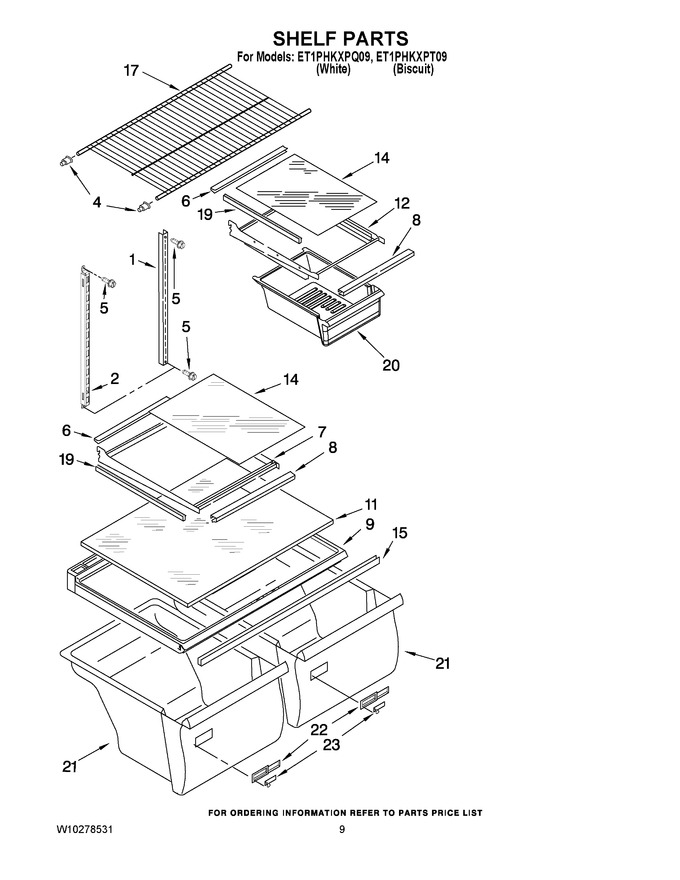

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2210522 | Shelf, Ladder (2) |
|
$ 44.10 | |||||
| 2 | 2300520 | Shelf, Ladder Center |
|
$ 75.36 | |||||
| 4 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 14.00 | ||||
| 5 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 6 | WP2188689 | Trim, Shelf Rear (Replaces: 2188687) |
|
$ 115.76 | |||||
| 7 | W10282498 | Shelf, Cantilever |
|
- | |||||
| 8 | 2188685 | Trim, Shelf Front |
|
- | |||||
| 9 | WP2314549 | Crisper Cover (Replaces: 2314502) |
|
$ 265.81 | |||||
| 11 | WP2176225 | Insert, Crisper Cover (Replaces: 2210573) |
|
$ 251.82 | |||||
| 12 | W10282500 | Pan Shelf, Cantilever |
|
- | |||||
| 14 | 2200987 | Glass, Shelf |
|
- | |||||
| 15 | WP2172748 | Crisper Support (Replaces: 2314478) |
|
$ 97.22 | |||||
| 17 | 2189454 | Shelf, Freezer |
|
- | |||||
| 19 | 2188711 | Trim, Shelf Side |
|
- | |||||
| 20 | WP2218132K | Pan, Meat (Replaces: 2218132K) |
|
Immediately | $ 159.64 | ||||
| 21 | W10854037 | Crisper Pan (includes 22 & 23) (Replaces: 2218130) |
|
Immediately | $ 170.66 | ||||
| 22 | W11819839 | Body, Humidity Control (Replaces: 2212446) |
|
$ 15.06 | |||||
| 23 | WP2176222 | Slide, Humidity Control (Replaces: 2176222) |
|
$ 27.35 |
