SELECT A DIAGRAM
01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts

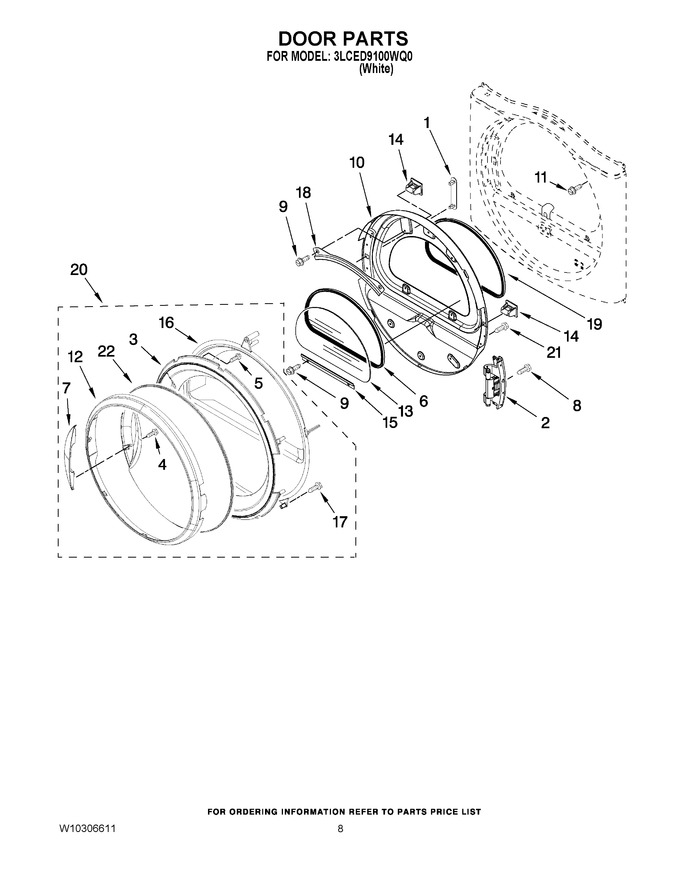

04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8565119 | Plug Strip (inner Door) |
|
$ 93.64 | |||||
| 2 | WPW10304672 | Door Hinge Assembly (Replaces: W10304672) |
|
Immediately | $ 221.41 | ||||
| 3 | 8565111 | Assembly, Door Intermediate |
|
- | |||||
| 4 | W10080840 | Screw, 8-18 X 5/8 |
|
- | |||||
| 5 | 3400618 | Screw, 6-32 X 3/8 |
|
$ 64.70 | |||||
| 6 | W11706993 | Seal, Window (Replaces: 8579663) |
|
$ 26.88 | |||||
| 7 | 8576578 | Handle, Door (includes Illus. 20.) |
|
$ 50.30 | |||||
| 8 | WPW10159996 | Screw, 10-24 X 3/64 (Replaces: W10159996) |
|
$ 7.68 | |||||
| 9 | W10080720 | Screw, 10-16 |
|
- | |||||
| 10 | WPW10164062 | Door Assembly (inner) (includes Illus. 1,14 & 19) (Replaces: W10259900) |
|
$ 337.21 | |||||
| 11 | W10080340 | Screw, 8-18 X 11/16 |
|
- | |||||
| 12 | 8576577 | Door, Outer Ring |
|
$ 328.52 | |||||
| 13 | WPW10286878 | Window (Replaces: W10286878) |
|
$ 261.68 | |||||
| 14 | 279570 | Door Catch Assembly (Replaces: 690081) |
|
Immediately | $ 8.89 | ||||
| 15 | W10822054 | Retainer (lower) (Replaces: 8519354) |
|
Immediately | $ 17.15 | ||||
| 16 | WP8580059 | Door, Intermediate (Replaces: 8580059) |
|
$ 102.38 | |||||
| 17 | WP8534022 | Screw (Replaces: 8534022) |
|
$ 7.94 | |||||
| 18 | 8519356 | Retainer (upper) |
|
- | |||||
| 19 | WPW10163915 | Door Seal (Replaces: W10163915) |
|
Immediately | $ 87.42 | ||||
| 20 | W10306556 | Door, Outer Assembly |
|
- | |||||
| 21 | W10850046 | Screw, 8-18 X .625 (Replaces: 9742177) |
|
Immediately | $ 7.19 | ||||
| 22 | W10174863 | Door Screen |
|
- |
