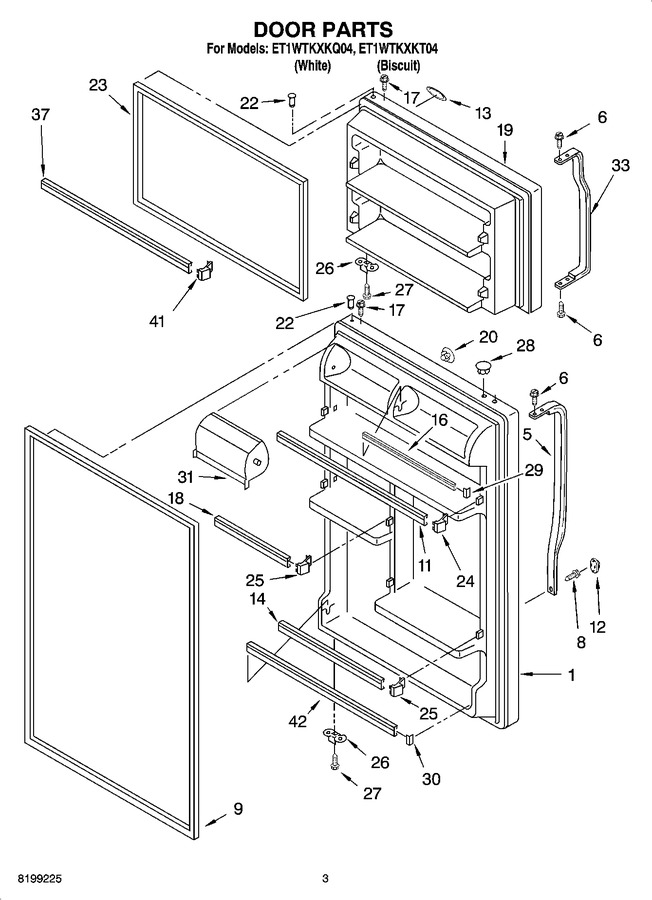

02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2183946 | Refrigerator Door (includes 9 & 22) (white) |
|
- | |||||
| 1 | 2205283 | Refrigerator Door (includes 9 & 22) (biscuit) |
|
- | |||||
| 5 | WP2202807W | Handle Center (white) (Replaces: 2202807W) |
|
$ 155.22 | |||||
| 5 | 2202807T | Handle Center (biscuit) |
|
$ 64.39 | |||||
| 6 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.19 | ||||
| 8 | WP8281146 | Screw (Replaces: 8281146) |
|
$ 7.56 | |||||
| 9 | 2159061 | Door Gasket, Magnetic (Replaces: 2202875) |
|
Immediately | $ 183.67 | ||||
| 11 | WP2201061 | Trim, Door Shelf (Replaces: 2201061) |
|
$ 118.40 | |||||
| 12 | 2202819T | Cover, Screw (biscuit) |
|
$ 8.02 | |||||
| 12 | WP2202819W | Cover, Screw (white) (Replaces: 2202819W) |
|
Immediately | $ 7.75 | ||||
| 13 | WP2213265 | Nameplate (Replaces: 2262218) |
|
Immediately | $ 88.74 | ||||
| 14 | WP2195943 | Trim, Door Shelf (Replaces: 2195943) |
|
$ 87.41 | |||||
| 16 | WP2201061 | Trim, Door Shelf (Replaces: 2195378) |
|
$ 118.40 | |||||
| 17 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.94 | |||||
| 18 | WP2201062 | Trim, Door Shelf (Replaces: 2201062) |
|
$ 8.42 | |||||
| 19 | W11023679 | Freezer Door (includes 22 & 23) (white) (Replaces: 2182489) |
|
$ 722.23 | |||||
| 19 | W11023688 | Freezer Door (includes 22 & 23) (biscuit) (Replaces: 2204686) |
|
- | |||||
| 20 | WP2189000 | Hole Plug (white) (Replaces: 2189000) |
|
Immediately | $ 7.40 | ||||
| 20 | WP2200936 | Hole Plug (biscuit) (Replaces: 2200936) |
|
$ 7.59 | |||||
| 22 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.75 | |||||
| 23 | 2159060 | Door Gasket, Magnetic (Replaces: 2214967) |
|
$ 320.01 | |||||
| 24 | WP2195915 | Endcap-trim (2) (Replaces: 2195915) |
|
$ 13.07 | |||||
| 25 | WP2156003 | Endcap, Trim (4) (Replaces: 2156003) |
|
Immediately | $ 12.62 | ||||
| 26 | W11745278 | Bracket, Door Stop (2) (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 27 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.75 | ||||
| 28 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 7.80 | ||||
| 28 | WP2212649 | Hole Plug (biscuit) (Replaces: 2212649) |
|
$ 7.61 | |||||
| 29 | WP2156007 | Plug, Trim (Replaces: 2156007) |
|
Immediately | $ 7.65 | ||||
| 30 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 12.18 | ||||
| 31 | WP2218118 | Compartment Door (Replaces: 2218118) |
|
$ 78.02 | |||||
| 33 | WP2202806W | Handle, F.c. (white) (Replaces: 2202806W) |
|
$ 148.00 | |||||
| 33 | 2202806T | Handle, F.c. (biscuit) |
|
$ 63.61 | |||||
| 37 | WP2201060 | Trim-door (2) (Replaces: 2201060) |
|
$ 114.49 | |||||
| 41 | WP2156003 | Endcap (4) (Replaces: 2156003) |
|
Immediately | $ 12.62 | ||||
| 42 | WPW10421486 | Trim, Door (Replaces: 2195948) |
|
$ 109.28 |
