02 - Cabinet


03 - Liner


04 - Breaker And Partition


05 - Unit


06 - Door, Lit/optional

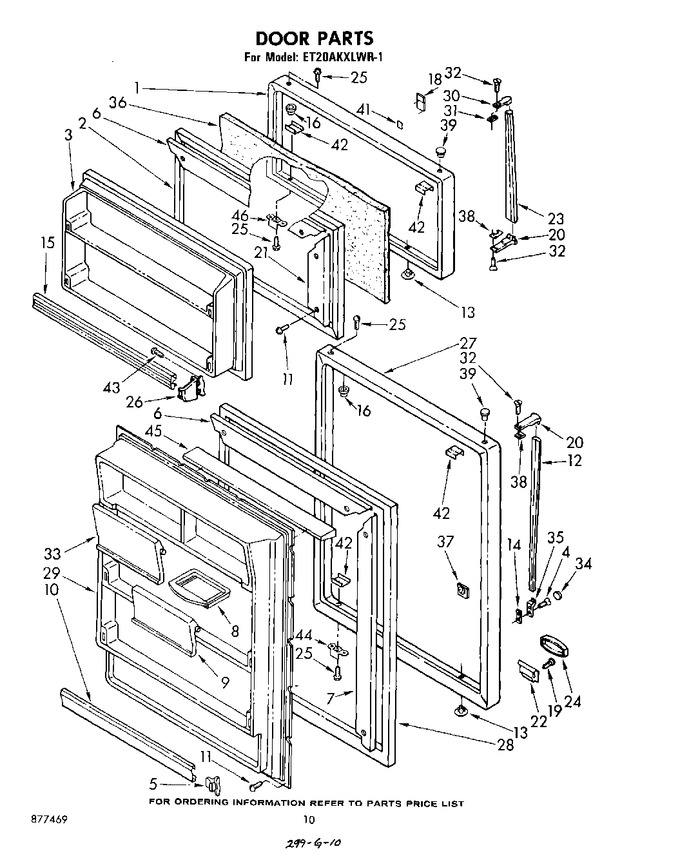

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	944316		Door, Freezer (also Order Item 36) (golden Harvest)		Appelez-nous	-
1	944315		Door, Freezer (also Order Item 36) (coffee)		Appelez-nous	-
1	944317		Door, Freezer (also Order Item 36) (new Avocado)		Appelez-nous	-
1	944318		Door, Freezer (also Order Item 36) (almond)		Appelez-nous	-
1	944314		Door, Freezer (also Order Item 36) (white)		Appelez-nous	-
2	2188460A		Gasket, Freezer Door   (Replaces: 942933)				$ 231.51
3	943163		Panel, Interior		Appelez-nous	-
4	WP488729		Screw, 8 X 1/2   (Replaces: 487875)			Immediately	$ 8.28
5	943125		Retainer, Trim (4)		Appelez-nous	-
6	836118		Retainer, Top & Bottom (2)		Appelez-nous	-
7	836117		Retainer, Side (2)		Appelez-nous	-
8	520747		Tray, Butter		Appelez-nous	-
9	935208		Door, Butter		Appelez-nous	-
10	935919		Trim, Shelf (2)		Appelez-nous	-
11	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
11	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
12	982946		Handle, Center		Appelez-nous	-
13	534927		Plug, Hole (2)		Appelez-nous	-
14	992872		Shim, Handle		Appelez-nous	-
15	943195		Trim, Shelf (2)		Appelez-nous	-
16	509929		Cap, Hinge Sleeve		Appelez-nous	-
18	945118		Insert, Nameplate		Appelez-nous	-
19	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
20	943182		Cap, Handle		Appelez-nous	-
21	836119		Retainer, Side (2)		Appelez-nous	-
22	843213		Clip, Medallion		Appelez-nous	-
23	982944		Handle, Center		Appelez-nous	-
24	989901		Medallion (coffee)		Appelez-nous	-
24	848382		Medallion (white)		Appelez-nous	-
24	989904		Medallion (almond)		Appelez-nous	-
24	989902		Medallion (new Avocado)		Appelez-nous	-
24	989903		Medallion (golden Harvest)		Appelez-nous	-
25	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
25	488930		Screw (repair)		Appelez-nous	-
26	943135		Retainer, Trim (4)		Appelez-nous	-
27	944309		Door, Refrigerator (coffee)		Appelez-nous	-
27	944312		Door, Refrigerator (almond)		Appelez-nous	-
27	944310		Door, Refrigerator (golden Harvest)		Appelez-nous	-
27	944308		Door, Refrigerator (white)		Appelez-nous	-
27	944311		Door, Refrigerator (new Avocado)		Appelez-nous	-
28	2188450A		Gasket, Refrigerator Door   (Replaces: 942931)				$ 284.09
29	943161		Panel, Interior		Appelez-nous	-
30	WP2191882		Cap, Handle   (Replaces: 943184)				$ 62.77
31	943187		Shim, Handle				$ 25.14
32	488923		Screw (repair)		Appelez-nous	-
32	WP488920		Screw, 8 X 5/8   (Replaces: 488920)				$ 7.98
33	935209		Door, Utility		Appelez-nous	-
34	WP1101634		Cover, Screw   (Replaces: 981182)				$ 9.68
35	WP2183139		Cap, Handle   (Replaces: 983542)			Immediately	$ 51.98
36	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
37	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
38	943188		Spacer				$ 7.80
39	989894		Plug, Hole (new Avocado)		Appelez-nous	-
39	WP2212648		Plug, Hole (golden Harvest)   (Replaces: 989893)			Immediately	$ 8.19
39	989196		Plug, Hole (almond)		Appelez-nous	-
39	WP2212648		Plug, Hole (white)   (Replaces: 844478)			Immediately	$ 8.19
39	989892		Plug, Hole (coffee)		Appelez-nous	-
41	991259		Tape		Appelez-nous	-
42	943185		Plate, Tap (4)		Appelez-nous	-
43	WP488729		Screw, 8 X 1/2   (Replaces: 488783)			Immediately	$ 8.28
44	944036		Bracket, Door Stop		Appelez-nous	-
45	849802		Support, Dike Top		Appelez-nous	-
46	877469		List, Parts		Appelez-nous	-
46	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
46	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
46	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
46	876370		Fiberglass Insulation (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
46	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
46	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
46	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
46	944035		Bracket, Door Stop		Appelez-nous	-
46	943167		Consumer Buy Guide		Appelez-nous	-
46	943387		Tech Sheet		Appelez-nous	-
46	943009		Energy Label		Appelez-nous	-
46	942935		Guide, Use & Care		Appelez-nous	-
46	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
46	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
46	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
46	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
46	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
46	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
46	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
46	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
46	261889		Enamel, New Avocado (1 Qt. Uncut)		Appelez-nous	-
46	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
46	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
46	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
46	479502		Tape, Vinyl (1/4`` X 108``)				$ 66.77
46	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
46	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
46	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
46	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
46	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	261888		Xenamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
	261886		Xenamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
