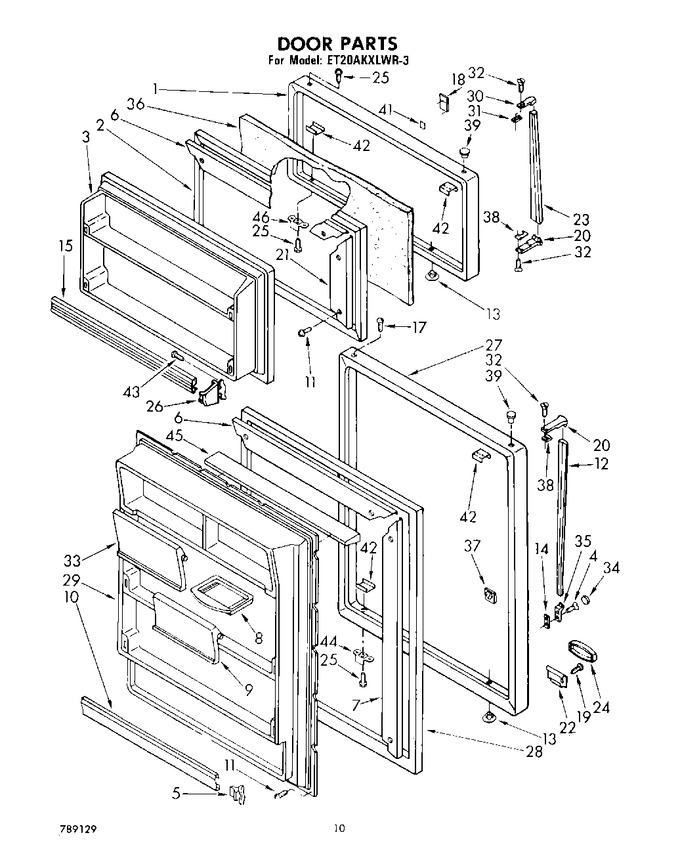

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 943175 | Door, Freezer (also Order Item 36) (white) |
|
- | |||||
| 1 | 1100312 | Door, Freezer (also Order Item 36) (platinum) |
|
- | |||||
| 1 | 1100311 | Door, Freezer (also Order Item 36) (toast) |
|
- | |||||
| 1 | 943179 | Door, Freezer (also Order Item 36) (almond) |
|
- | |||||
| 1 | 943177 | Door, Freezer (also Order Item 36) (golden Harvest) |
|
- | |||||
| 1 | 943178 | Door, Freezer (also Order Item 36) (new Avocado) |
|
- | |||||
| 1 | 943176 | Door, Freezer (also Order Item 36) (coffee) |
|
- | |||||
| 2 | 2188460A | Gasket, Freezer Door (for Platinum Model Only) (Replaces: 986703) |
|
$ 231.51 | |||||
| 2 | 2188460A | Gasket, Freezer Door (Replaces: 942933) |
|
$ 231.51 | |||||
| 3 | 943163 | Panel, Interior |
|
- | |||||
| 3 | 1100332 | Panel, Interior (for Platinum Model Only) |
|
- | |||||
| 4 | WP488729 | Screw, 8 X 1/2 (Replaces: 487875) |
|
Immediately | $ 8.28 | ||||
| 5 | 839904 | Retainer, Trim (for Platinum Model Only) |
|
$ 5.65 | |||||
| 5 | 943125 | Retainer, Trim (4) |
|
- | |||||
| 6 | 836118 | Retainer, Top & Bottom (2) |
|
- | |||||
| 7 | 836117 | Retainer, Side (2) |
|
- | |||||
| 8 | 520747 | Tray, Butter |
|
- | |||||
| 9 | 935208 | Door, Butter |
|
- | |||||
| 10 | 935919 | Trim, Shelf (2) |
|
- | |||||
| 11 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 11 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 12 | 982946 | Handle, Center |
|
- | |||||
| 13 | 534927 | Plug, Hole (2) |
|
- | |||||
| 14 | 992872 | Shim, Handle |
|
- | |||||
| 15 | 943195 | Trim, Shelf (2) |
|
- | |||||
| 17 | WP8281206 | Screw, 8-15 X 1/2 (Replaces: 489028) |
|
$ 8.37 | |||||
| 18 | 945118 | Insert, Nameplate |
|
- | |||||
| 19 | WP488729 | Screw, 8 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 20 | 943182 | Cap, Handle |
|
- | |||||
| 21 | 836119 | Retainer, Side (2) |
|
- | |||||
| 22 | 843213 | Clip, Medallion |
|
- | |||||
| 23 | 982944 | Handle, Center |
|
- | |||||
| 24 | 989902 | Medallion (new Avocado) |
|
- | |||||
| 24 | 989901 | Medallion (coffee) |
|
- | |||||
| 24 | 848382 | Medallion (white) |
|
- | |||||
| 24 | 989903 | Medallion (golden Harvest) |
|
- | |||||
| 24 | 989904 | Medallion (almond) |
|
- | |||||
| 24 | 1100194 | Medallion (toast) |
|
- | |||||
| 24 | 1100195 | Medallion (platinum) |
|
- | |||||
| 25 | 488930 | Screw (repair) |
|
- | |||||
| 25 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 26 | 1100334 | Retainer, Trim (for Platinum Model Only) |
|
- | |||||
| 26 | 943135 | Retainer, Trim |
|
- | |||||
| 27 | 1100310 | Door, Refrigerator (platinum) |
|
- | |||||
| 27 | 943169 | Door, Refrigerator (white) |
|
- | |||||
| 27 | 943170 | Door, Refrigerator (coffee) |
|
- | |||||
| 27 | 943172 | Door, Refrigerator (new Avocado) |
|
- | |||||
| 27 | 943171 | Door, Refrigerator (golden Harvest) |
|
- | |||||
| 27 | 943173 | Door, Refrigerator (almond) |
|
- | |||||
| 27 | 1100309 | Door, Refrigerator (toast) |
|
- | |||||
| 28 | 2188450A | Gasket, Refrigerator Door (for Platinum Model Only) (Replaces: 986702) |
|
$ 284.09 | |||||
| 28 | 2188450A | Gasket, Refrigerator Door (Replaces: 942931) |
|
$ 284.09 | |||||
| 29 | 943161 | Panel, Interior |
|
- | |||||
| 29 | 938745 | Panel, Interior (for Platinum Model Only) |
|
- | |||||
| 30 | WP2191882 | Cap, Handle (Replaces: 943184) |
|
$ 62.77 | |||||
| 31 | 943187 | Shim, Handle |
|
$ 25.14 | |||||
| 32 | WP488920 | Screw, 8 X 5/8 (Replaces: 488920) |
|
$ 7.98 | |||||
| 32 | 488923 | Screw (repair) |
|
- | |||||
| 33 | 935209 | Door, Utility |
|
- | |||||
| 34 | WP1101634 | Cover, Screw (Replaces: 981182) |
|
$ 9.68 | |||||
| 35 | WP2183139 | Cap, Handle (Replaces: 983542) |
|
Immediately | $ 51.98 | ||||
| 36 | 876029 | Kit, Foam Slab (required When Replacing Exterior Door Panel) |
|
- | |||||
| 37 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.88 | |||||
| 38 | 943188 | Spacer |
|
$ 7.80 | |||||
| 39 | 989894 | Plug, Hole (new Avocado) |
|
- | |||||
| 39 | WP2212648 | Plug, Hole (golden Harvest) (Replaces: 989893) |
|
Immediately | $ 8.19 | ||||
| 39 | 1100188 | Hole Plug (toast) |
|
- | |||||
| 39 | 1100189 | Hole Plug (platinum) |
|
- | |||||
| 39 | 989196 | Plug, Hole (almond) |
|
- | |||||
| 39 | WP2212648 | Plug, Hole (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 39 | 989892 | Plug, Hole (coffee) |
|
- | |||||
| 41 | 991259 | Tape |
|
- | |||||
| 42 | 943185 | Plate, Tap (4) |
|
- | |||||
| 43 | WP488729 | Screw, 8 X 1/2 (Replaces: 488783) |
|
Immediately | $ 8.28 | ||||
| 44 | 944036 | Bracket, Door Stop |
|
- | |||||
| 45 | 849802 | Support, Dike Top |
|
- | |||||
| 46 | 942935 | Guide, Use & Care |
|
- | |||||
| 46 | 799351 | Blend, Thinner (1 Gal.) |
|
- | |||||
| 46 | 261889 | Enamel, New Avocado (1 Qt. Uncut) |
|
- | |||||
| 46 | 261891 | Enamel, Golden Harvest (1 Qt. Uncut) |
|
- | |||||
| 46 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 46 | 261886 | Enamel, Coffee (13 Oz. Spray Can) |
|
- | |||||
| 46 | 261888 | Xenamel, New Avocado (13 Oz. Spray Can) |
|
- | |||||
| 46 | 261890 | Xenamel, Golden Harvest (13 Oz. Spray Can) |
|
- | |||||
| 46 | 285365 | Paint, Spray (13 Oz.) (toast) |
|
- | |||||
| 46 | 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | |||||
| 46 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | ||||
| 46 | 479502 | Tape, Vinyl (1/4`` X 108``) |
|
$ 66.77 | |||||
| 46 | 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 243.14 | |||||
| 46 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 46 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 51.75 | |||||
| 46 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | ||||
| 46 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | ||||
| 46 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | |||||
| 46 | 876370 | Fiberglass Insulation (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 | |||||
| 46 | 350956 | Xenamel, Almond (13 Oz. Spray Can) |
|
$ 54.01 | |||||
| 46 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 46 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 46 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 46 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 82.37 | |||||
| 46 | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 46 | 943167 | Consumer Buy Guide |
|
- | |||||
| 46 | 946646 | Tech Sheet |
|
- | |||||
| 46 | 946866 | Energy Label |
|
- | |||||
| 46 | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| 46 | 944035 | Bracket, Door Stop |
|
- | |||||
| 46 | 350942 | Primer White (13 Oz. Spray Can) |
|
$ 94.14 | |||||
| 46 | 350941 | Leveler, Enamel (13 Oz. Spray Can) |
|
- | |||||
| 46 | 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 59.89 | |||||
| 46 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | ||||
| 46 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 109.25 | |||||
| 46 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 60.28 | |||||
| 46 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | |||||
| 46 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 46 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 117.11 | |||||
| 46 | 28536 | Enamel, Toast (1 Qt. Uncut) |
|
- | |||||
| 46 | 285368 | Enamel, Platinum (1 Qt. Uncut) |
|
- | |||||
| 46 | 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | |||||
| 46 | 261887 | Enamel, Coffee (1 Qt. Uncut) |
|
- | |||||
| 46 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 |
