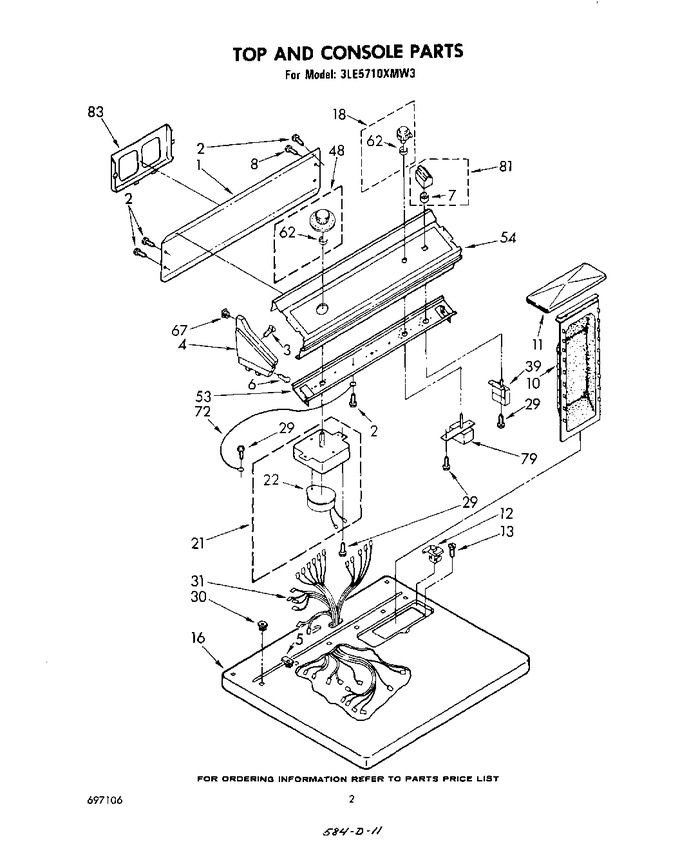

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 359372 | Panel, Rear Console |
|
- | |||||
| 2 | WP489069 | Screw, Hex Washer Head (Replaces: 693994) |
|
Immediately | $ 7.86 | ||||
| 3 | 355326 | Screw, 13-16 X 5/8 |
|
- | |||||
| 4 | 377283 | Cap , End (r.h.) (golden Harvest) |
|
- | |||||
| 4 | 375305 | Cap, End (l.h.) (white) |
|
- | |||||
| 4 | 375313 | Cap, End (l.h.) (almond) |
|
- | |||||
| 4 | 375318 | Cap, End (l.h.) (golden Harvest) |
|
- | |||||
| 4 | 377284 | Cap, End (l.h.) (toast) |
|
- | |||||
| 4 | 377287 | Cap , End (r.h.) (platinum) |
|
- | |||||
| 4 | 377286 | Cap , End (r.h.) (toast) |
|
- | |||||
| 4 | 375315 | Cap , End (r.h.) (almond) |
|
- | |||||
| 4 | 377285 | Cap, End (l.h.) (platinum) |
|
- | |||||
| 4 | 375309 | Cap , End (r.h.) (white) |
|
- | |||||
| 5 | 358472 | Stop, Push-in |
|
- | |||||
| 6 | 358225 | Screw, 8-18 |
|
- | |||||
| 7 | 599530307 | Clip (Replaces: 90015) |
|
- | |||||
| 8 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 10 | 339392V | Screen, Lint (Replaces: 339392) |
|
Immediately | $ 41.91 | ||||
| 11 | 689313 | Cover, Lint Screen (golden Harvest) |
|
- | |||||
| 11 | 695022 | Cover, Lint Screen (toast) |
|
- | |||||
| 11 | 695023 | Cover, Lint Screen (platinum) |
|
- | |||||
| 11 | 688150 | Cover, Lint Screen (white) |
|
- | |||||
| 11 | 689310 | Cover, Lint Screen (almond) |
|
- | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 339230) |
|
$ 7.72 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 339229) |
|
$ 7.72 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 16 | 688479 | Top (white) |
|
- | |||||
| 16 | 689449 | Top (almond) |
|
- | |||||
| 16 | 689452 | Top (golden Harvest) |
|
- | |||||
| 16 | 694983 | Top (toast) |
|
- | |||||
| 16 | 694984 | Top (platinum) |
|
- | |||||
| 18 | 690292 | Control Knob, Temperature |
|
- | |||||
| 21 | 687939 | Timer, 230 Volt (50/60 Hz.) |
|
- | |||||
| 22 | 00685886 | Motor, Timer (Replaces: 685886) |
|
$ 251.71 | |||||
| 29 | WP3390631 | Screw (Replaces: 339554) |
|
$ 7.82 | |||||
| 30 | 358473 | Nut, Push-in (2) |
|
$ 5.84 | |||||
| 31 | 694757 | Harness, Wiring |
|
- | |||||
| 39 | 346364 | Switch, Push-to-start (alt.) |
|
- | |||||
| 39 | 692021 | Switch, Push-to-start (alt.) |
|
- | |||||
| 39 | 660936 | Switch, Push-to-start |
|
- | |||||
| 48 | 690201 | Timer Knob Assembly |
|
- | |||||
| 53 | 359708 | Bracket, Control |
|
- | |||||
| 54 | 690419 | Panel, Control |
|
- | |||||
| 62 | WP688805 | Clip (Replaces: 688805) |
|
Immediately | $ 7.81 | ||||
| 67 | 689559 | Nut, Push-in (4) |
|
- | |||||
| 72 | 690853 | Wire, Ground |
|
- | |||||
| 79 | 348686 | Switch, Temperature |
|
- | |||||
| 81 | 689857 | Button Assembly |
|
- | |||||
| 83 | 357645 | Rack, Literature |
|
- | |||||
| LIT696755 | Use & Care Guide |
|
- | ||||||
