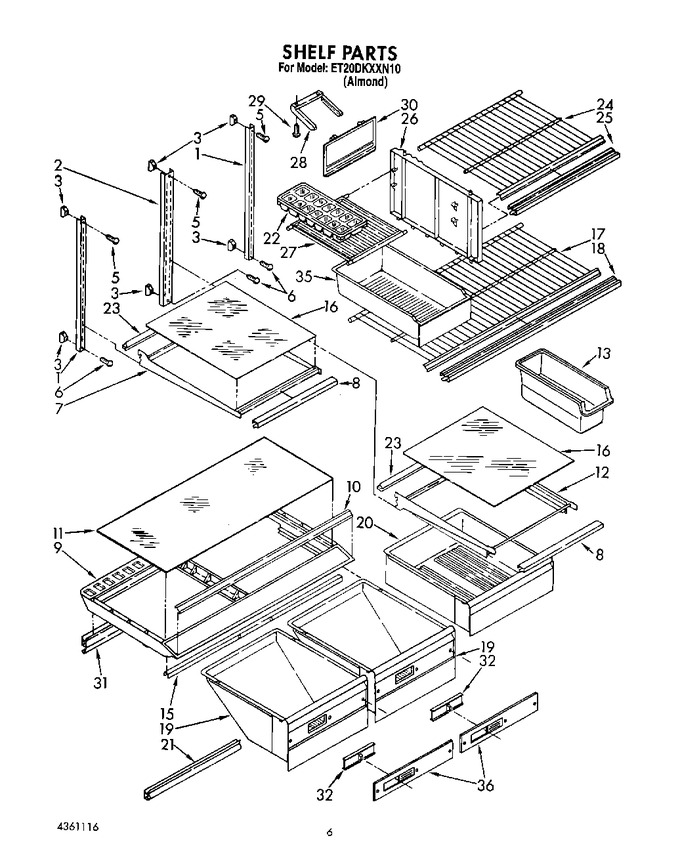

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114466		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (4)				$ 31.35
5	489345		Screw (3)		Appelez-nous	-
6	WP488163		Screw, 8 X 1-1/4 (3)   (Replaces: 488163)				$ 7.92
7	1120435		Shelf, Cantilever		Appelez-nous	-
8	1110741		Trim, Shelf		Appelez-nous	-
9	1119559		Crisper Cover		Appelez-nous	-
10	1105649		Trim, Crisper Cover		Appelez-nous	-
11	1124553		Glass, Crisper Cover		Appelez-nous	-
12	1122729		Pan Shelf, Cantilever		Appelez-nous	-
13	WP982704		Container   (Replaces: 2148079)				$ 32.55
15	WP2172748		Crisper, Support   (Replaces: 1106613)				$ 102.08
16	1124551		Shelf, Glass		Appelez-nous	-
17	1106615		Shelf, Freezer		Appelez-nous	-
18	1106618		Trim, Shelf Front		Appelez-nous	-
19	2148786		Pan, Crisper		Appelez-nous	-
20	2148787		Pan, Meat		Appelez-nous	-
21	1116512		Crisper Gasket, Front (2)		Appelez-nous	-
22	WP841180A		Ice Tray (4)   (Replaces: 841180)			Immediately	$ 47.84
23	1110743		Reflector, Shelf		Appelez-nous	-
24	1106822		Shelf, Freezer (top)		Appelez-nous	-
25	2148451		Trim, Shelf		Appelez-nous	-
26	1127416		Divider		Appelez-nous	-
27	1106624		Shelf, Ice Compartment (2)		Appelez-nous	-
28	1106817		Slide, Ice Compartment		Appelez-nous	-
29	WP488163		Screw, 8 X 1/2 (2)   (Replaces: 488163)				$ 7.92
30	2148731		Door, Ice Compartment		Appelez-nous	-
31	1105653		Crisper Gasket, Rear (2)		Appelez-nous	-
32	1116718		Slide, Humidity Control		Appelez-nous	-
35	W11625904		Pan, Utility   (Replaces: 2148732)				$ 67.83
36	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
36	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
36	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
36	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
36	1117510		Torx Key				$ 5.84
36	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
36	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
36	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
36	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
36	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
36	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
36	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
36	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
36	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
36	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
36	833938		Kit, Terminal Connector				$ 8.47
36	2148815		Crisper Pan, Front		Appelez-nous	-
36	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
36	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
36	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
36	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
36	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
36	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
36	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
36	1129316		Eckmf90			Immediately	$ 149.11
36	350942		Primer White (13 Oz. Spray Can)				$ 94.14
36	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
36	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
36	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
36	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	LIT2160091		Energy Guide		Appelez-nous	-
	LIT4361116		Parts List Rev. A		Appelez-nous	-
	LIT2154075		Service & Wiring Sheet		Appelez-nous	-
	LIT1124256		Care & Use Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
