02 - Cabinet


03 - Liner


04 - Compartment Separator


05 - Shelf, Lit/optional


06 - Unit


07 - Refrigerator Door


08 - Freezer Door

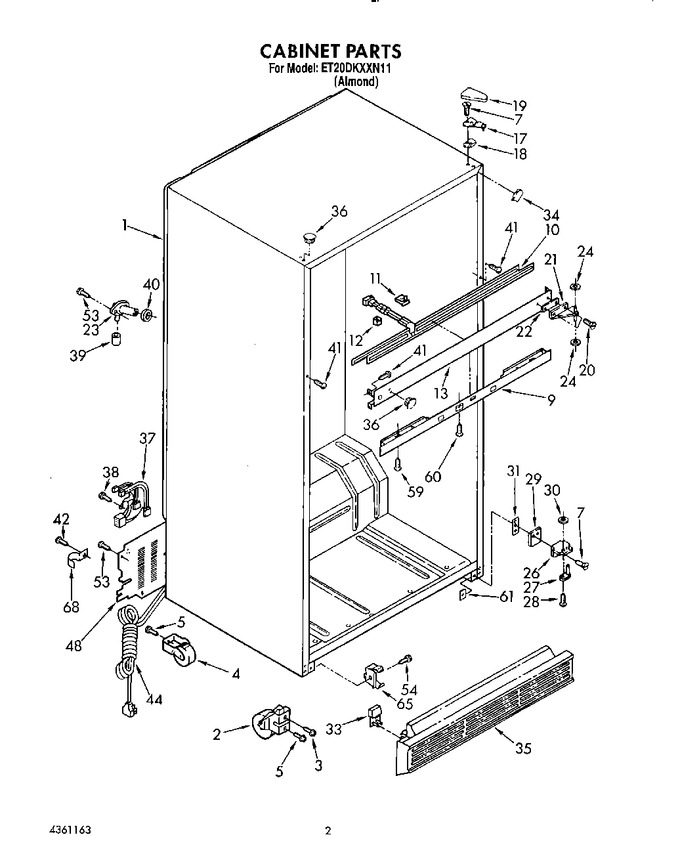

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	2152011		Roller, Front		Appelez-nous	-
3	489333		Screw		Appelez-nous	-
4	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 42.18
5	488454		Screw (6)		Appelez-nous	-
7	489327		Screw		Appelez-nous	-
8	WP489464		Screw (10)   (Replaces: 489337)			Immediately	$ 8.38
9	2148449		Control, Front Cover		Appelez-nous	-
10	2154065		Heater, Mullion		Appelez-nous	-
11	1129018		Clip, Mullion (3)		Appelez-nous	-
12	2149077		Spacer (3)		Appelez-nous	-
13	1122569		Center Rail (almond)		Appelez-nous	-
13	1122566		Center Rail (white)		Appelez-nous	-
17	1123514		Hinge, Top		Appelez-nous	-
18	1123517		Shim, Hinge Top		Appelez-nous	-
19	989194		Hinge Cover (almond)		Appelez-nous	-
20	WP999367		Screw   (Replaces: 489105)				$ 8.56
21	2147335		Hinge, Center		Appelez-nous	-
22	836155		Shim, Hinge Center		Appelez-nous	-
23	WP2196157		Fitting-water Tube   (Replaces: 2154081)			Immediately	$ 12.59
24	WP488296		Washer, 11/64   (Replaces: 488296)			Immediately	$ 7.55
26	1123378		Hinge Butt, Bottom		Appelez-nous	-
27	654366		Hinge Pin, Bottom				$ 27.15
28	N/A		Screw		Appelez-nous	-
29	1123379		Shim, Bottom		Appelez-nous	-
30	489200		Washer, 7/32				$ 7.75
31	1121117		Spacer		Appelez-nous	-
33	1118078		Corner Filler, Grille		Appelez-nous	-
34	1118059		Filler, Wrap Corner (2) (almond)		Appelez-nous	-
35	1129001		Grille		Appelez-nous	-
36	1129062		Hole Plug (4) (white)		Appelez-nous	-
37	2153994		Wiring Assembly, Intermediate		Appelez-nous	-
38	WP250830		Screw, 8-32 X 1/2   (Replaces: 489048)				$ 8.78
39	WP487996		Cap   (Replaces: 487996)				$ 8.67
40	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 10.43
41	WP489478		Screw, 8 X 1/2   (Replaces: 489242)				$ 8.18
42	WP489478		Screw   (Replaces: 489242)				$ 8.18
44	937360		Cord, Service		Appelez-nous	-
48	1105531		Cover, Unit		Appelez-nous	-
53	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
54	WP489478		Screw   (Replaces: 489242)				$ 8.18
59	WP488163		Screw, 8 X 13/16 (2)   (Replaces: 488725)				$ 7.92
60	WP489174		Screw (2)   (Replaces: 489174)				$ 7.30
61	2147310		Tap-plate, Bottom Hinge		Appelez-nous	-
65	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 8.11
68	549193		Clamp				$ 14.06
69	WP489478		Screw   (Replaces: 489242)				$ 8.18
