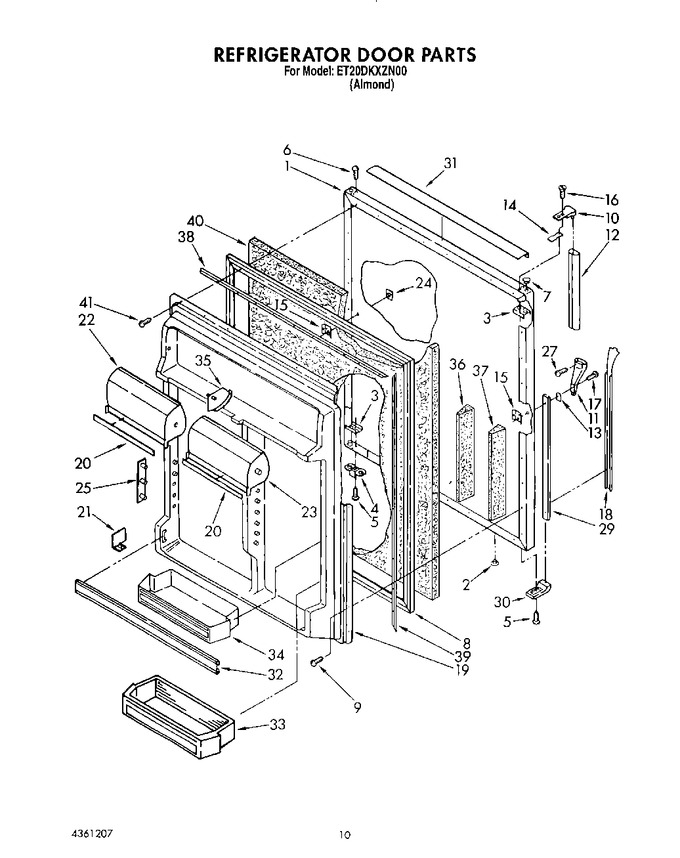

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1122658		Panel, Refrigerator Door (also Order Item 40) (almond)		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	1115910		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	989196		Hole Plug (almond)		Appelez-nous	-
8	2188450A		Door Gasket, Magnetic   (Replaces: 1126756)				$ 284.09
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
10	944157		Handle End		Appelez-nous	-
11	1109189		Handle End, Side		Appelez-nous	-
12	1120781		Handle, Center		Appelez-nous	-
13	935075		Shim, Handle End (side)		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
15	WP939101		Screw Anchor (2)   (Replaces: 2151669)				$ 7.88
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
18	1120830		Insert, Handle		Appelez-nous	-
19	1126757		Interior Door Panel		Appelez-nous	-
20	1124223		Trim, Door Compartment (2)		Appelez-nous	-
21	2152336		Divider, Door Shelf		Appelez-nous	-
22	2148794		Compartment Door, Left Side		Appelez-nous	-
23	2148792		Compartment Door, Right Side		Appelez-nous	-
24	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
25	1116986		Pin Plate (8)				$ 12.10
27	489022		Screw, 6-20 X 3/8		Appelez-nous	-
29	935871		Retainer, Insert		Appelez-nous	-
30	1105804		Endcap, Insert Retainer		Appelez-nous	-
31	1106148		Trim, Door		Appelez-nous	-
32	1114376		Trim, Door Shelf		Appelez-nous	-
33	1124208		Bin, Door Shelf (2)		Appelez-nous	-
34	1124209		Bin, Door Shelf (deep) (2)		Appelez-nous	-
35	WP1118001		Hinge Pin, Center   (Replaces: 1118001)				$ 8.06
36	1122711		Door Dike, Center		Appelez-nous	-
37	1122709		Door Dike, Side (2)		Appelez-nous	-
38	1122552		Gasket Retainer, Top & Bottom		Appelez-nous	-
39	1122551		Gasket Retainer, Side (2)		Appelez-nous	-
40	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
41	WP488729		Corner Screw (8)   (Replaces: 489287)			Immediately	$ 8.28
