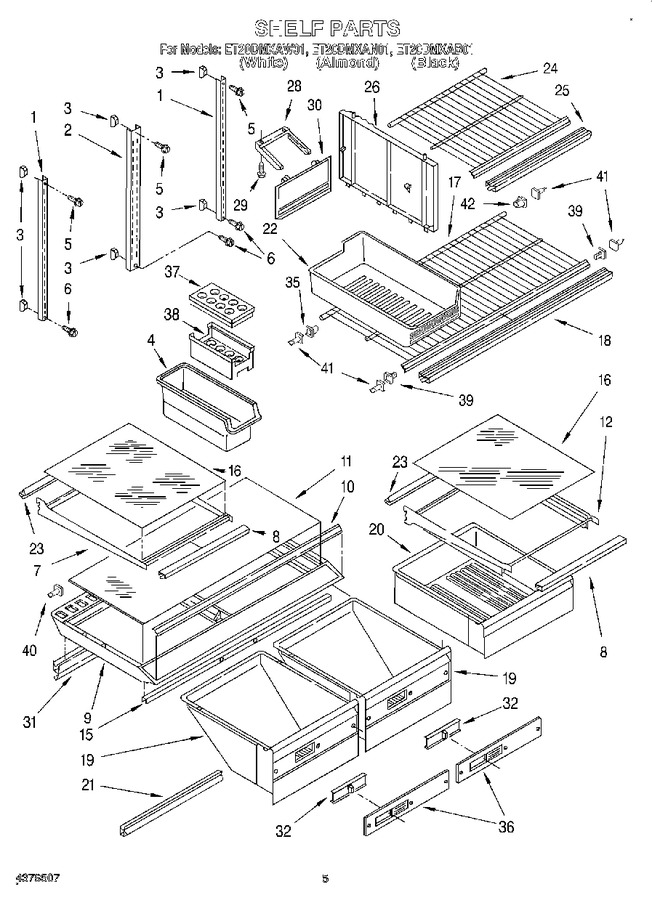

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114466		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (6)				$ 31.35
4	WP982704		Container   (Replaces: 1127196)				$ 32.55
5	489345		Screw,		Appelez-nous	-
6	WP488163		Screw,   (Replaces: 488163)				$ 7.92
7	1120435		Shelf, Cantilever		Appelez-nous	-
8	2148526		Trim, Shelf		Appelez-nous	-
9	2148520		Crisper Cover		Appelez-nous	-
10	2172711		Trim, Crisper Cover		Appelez-nous	-
11	1124553		Glass, Crisper Cover		Appelez-nous	-
12	1122729		Pan Shelf, Cantilever		Appelez-nous	-
15	WP2172748		Support, Crisper   (Replaces: 2172748)				$ 102.08
16	1124551		Shelf, Glass		Appelez-nous	-
17	1106615		Shelf, Freezer		Appelez-nous	-
18	2148535		Trim, Shelf Front		Appelez-nous	-
19	2162717		Pan, Crisper		Appelez-nous	-
20	2162716		Pan, Meat		Appelez-nous	-
21	1116512		Crisper Gasket, Front (2)		Appelez-nous	-
22	W11625904		Pan, Ice Cube   (Replaces: 2148659)				$ 67.83
23	1106768		Reflector, Shelf		Appelez-nous	-
24	1106822		Shelf, Freezer (top)		Appelez-nous	-
25	2148537		Trim, Shelf		Appelez-nous	-
26	1127416		Divider		Appelez-nous	-
28	1106817		Slide, Ice Compartment		Appelez-nous	-
29	WP488163		Screw,   (Replaces: 488163)				$ 7.92
30	2148741		Door, Ice Compartment		Appelez-nous	-
31	1105653		Crisper Gasket, Rear (2)		Appelez-nous	-
32	2148524		Slide, Humidity Control		Appelez-nous	-
35	819091		Shelf Stud, L.s.   (Replaces: 946358)				$ 41.66
36	2148816		Crisper Pan, Front		Appelez-nous	-
37	1107388		Egg Container, Top		Appelez-nous	-
38	1107384		Egg Container, Bottom		Appelez-nous	-
39	946356		Shelf Stud		Appelez-nous	-
40	1106612		Shelf Stud (2)				$ 7.56
41	946355		Support, Stud		Appelez-nous	-
42	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
42	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
42	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
42	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
42	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
42	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
42	819091		Shelf Stud, R.s.   (Replaces: 946357)				$ 41.66
42	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
42	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
42	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
42	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
42	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
42	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
42	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
42	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
42	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
42	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
42	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
42	2148985		Door Reversal Instructions		Appelez-nous	-
42	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
42	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
42	833938		Kit, Terminal Connector				$ 8.47
42	350942		Primer White (13 Oz. Spray Can)				$ 94.14
42	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
42	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
42	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	1117510		Torx Key				$ 5.84
	LIT677971		Do-it-yourself Manual, Icemaker		Appelez-nous	-
	LIT677969		Do-it-yourself Manual Ref./fzr.		Appelez-nous	-
	LIT628370		Modular Icemaker Service Sheet		Appelez-nous	-
	LIT2154075		Service & Wiring Sheet		Appelez-nous	-
	LIT2160152		Use & Care Guide		Appelez-nous	-
	LIT2162810		Energy Guide		Appelez-nous	-
