SELECT A DIAGRAM

01 - Cabinet

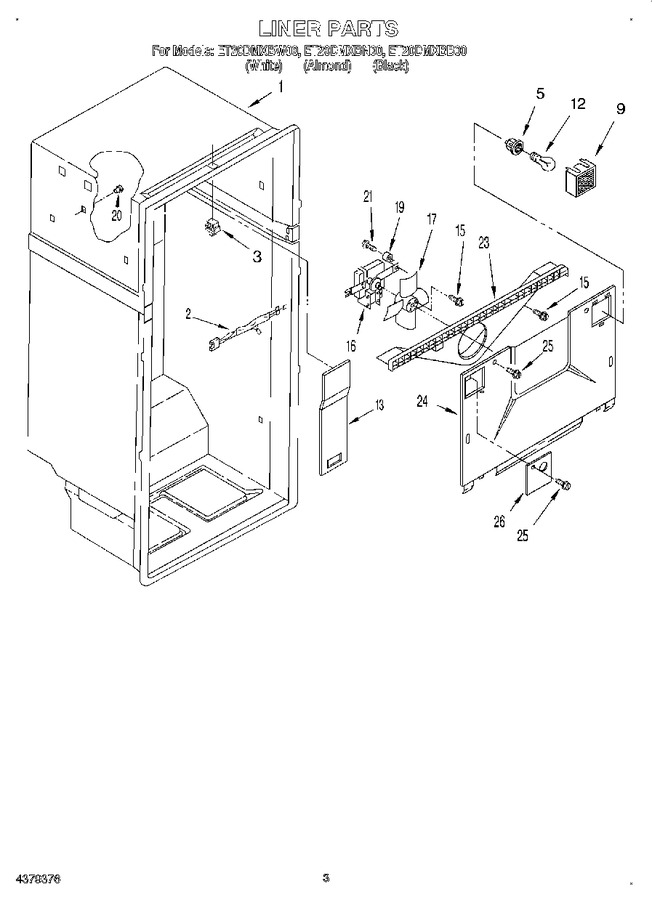

02 - Liner


03 - Compartment Separator


04 - Shelf, Lit/optional


05 - Unit


06 - Refrigerator Door


07 - Icemaker


08 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	1127626		Wiring, Fan Motor		Appelez-nous	-
3	W11384469		Switch, Rocker Arm   (Replaces: 1108112)			Immediately	$ 39.09
5	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 106.16
9	981365		Light Lens		Appelez-nous	-
12	4396822		Bulb, Light   (Replaces: 850166)			Immediately	$ 13.58
13	2157411		Cover, Air Duct		Appelez-nous	-
15	WP489478		Screw   (Replaces: 489242)				$ 8.18
16	482731		Motor, Fan   (Replaces: 2169116)			Immediately	$ 79.05
17	WP1100938		Blade, Fan   (Replaces: 2162448)				$ 92.26
19	531933		Grommet (2)				$ 5.70
20	1110779		Grommet (4)		Appelez-nous	-
21	489168		Screw		Appelez-nous	-
23	2160644		Scroll, Fan		Appelez-nous	-
24	2179450		Evaporator Cover		Appelez-nous	-
25	WP488729		Screw   (Replaces: 489451)			Immediately	$ 8.28
26	WP2217784		Hole Cover, Evaporator   (Replaces: 944760)				$ 47.22

    View Diagram in Separate Window       Print Part List
