1 944314 Door, Freezer (also Order Item 36) (white) Appelez-nous -
1 944316 Door, Freezer (also Order Item 36) (golden Harvest) Appelez-nous -
1 1103194 Door, Freezer (also Order Item 36) (platinum) Appelez-nous -
1 1103193 Door, Freezer (also Order Item 36) (toast) Appelez-nous -
1 944318 Door, Freezer (also Order Item 36) (almond) Appelez-nous -
2 2188460A Gasket, Freezer Door   (Replaces: 986703) Special Order $ 231.51

3 1103184 Panel, Interior Appelez-nous -
4 WP488729 Screw, 8 X 1/2   (Replaces: 487875) In-Stock Immediately $ 8.28

5 839904 Retainer Trim Special Order $ 5.65

6 836118 Retainer, Top & Bottom (2) Appelez-nous -
7 836117 Retainer, Side (2) Appelez-nous -
8 520747 Tray, Butter Appelez-nous -
9 1105741 Door, Butter Appelez-nous -
10 1105743 Trim, Shelf (2) Appelez-nous -
11 WP681414 Screw ((repair))   (Replaces: 488552) In-Stock Immediately $ 8.47

11 WP489069 Screw, 7 X 1/2   (Replaces: 489101) In-Stock Immediately $ 8.40

12 1105758 Handle, Center Appelez-nous -
13 534927 Plug, Hole (2) Appelez-nous -
14 992872 Shim, Handle Appelez-nous -
15 1105745 Trim, Shelf (2) Appelez-nous -
16 509929 Cap, Hinge Sleeve Appelez-nous -
17 WP8281206 Screw, 8-15 X 1/2   (Replaces: 489028) Special Order $ 8.37

18 1104898 Insert, Nameplate Appelez-nous -
19 WP488729 Screw, 8 X 1/2   (Replaces: 487909) In-Stock Immediately $ 8.28

20 943182 Cap, Handle Appelez-nous -
21 836119 Retainer, Side (2) Appelez-nous -
22 843213 Clip, Medallion Appelez-nous -
23 1105765 Handle, Center Appelez-nous -
24 1100194 Medallion (toast) Appelez-nous -
24 989904 Medallion (almond) Appelez-nous -
24 989903 Medallion (golden Harvest) Appelez-nous -
24 1100195 Medallion (platinum) Appelez-nous -
24 848382 Medallion (white) Appelez-nous -
25 488930 Screw (repair) Appelez-nous -
25 WP488921 Screw, 8 X 1/2   (Replaces: 488921) In-Stock Immediately $ 8.24

26 WP849996 Retainer, Trim (4)   (Replaces: 849996) Special Order $ 7.95

27 944308 Door, Refrigerator (also Order Item 36) (white) Appelez-nous -
27 1103192 Door, Refrigerator (also Order Item 36) (platinum) Appelez-nous -
27 1103191 Door, Refrigerator (also Order Item 36) (toast) Appelez-nous -
27 944312 Door, Refrigerator (also Order Item 36) (almond) Appelez-nous -
27 944310 Door, Refrigerator (also Order Item 36) (golden Harvest) Appelez-nous -
28 2188450A Gasket, Refrigerator Door   (Replaces: 986702) Special Order $ 284.09

29 938745 Panel, Interior Appelez-nous -
30 WP2191882 Cap, Handle   (Replaces: 943184) Special Order $ 62.77

31 943187 Shim, Handle Special Order $ 25.14

32 WP488920 Screw, 8 X 5/8   (Replaces: 488920) Special Order $ 7.98

32 488923 Screw (repair) Appelez-nous -
33 1105742 Door, Utility Appelez-nous -
34 WP1101634 Screw, Cover   (Replaces: 1101634) Special Order $ 9.68

35 WP2183139 Handle End Cap   (Replaces: 1101632) In-Stock Immediately $ 51.98

36 876029 Kit, Foam Slab (required When Replacing Exterior Door Panel) Appelez-nous -
37 WP939101 Screw, Anchor   (Replaces: 939101) Special Order $ 7.88

38 943188 Spacer Special Order $ 7.80

39 1100188 Hole Plug (toast) Appelez-nous -
39 989196 Plug, Hole (almond) Appelez-nous -
39 WP2212648 Plug, Hole (golden Harvest)   (Replaces: 989893) In-Stock Immediately $ 8.19

39 1100189 Hole Plug (platinum) Appelez-nous -
39 WP2212648 Plug, Hole (white)   (Replaces: 844478) In-Stock Immediately $ 8.19

41 991259 Tape Appelez-nous -
42 943185 Plate, Tap (4) Appelez-nous -
44 944036 Bracket, Door Stop Appelez-nous -
45 849802 Support, Dike Top Appelez-nous -
46 72032 Paint, Touch-up 1/2 Oz. (black) In-Stock Immediately $ 18.69

46 WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 18.81

46 285368 Enamel, Platinum (1 Qt. Uncut) Appelez-nous -
46 833938 Kit, Terminal Connector Special Order $ 8.47

46 WP503695 Cork, Sealer 1/4 Pound)   (Replaces: 503695) Special Order $ 123.84

46 350956 Xenamel, Almond (13 Oz. Spray Can) Special Order $ 54.01

46 72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

46 876370 Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941) Special Order $ 243.14

46 876370 Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305) Special Order $ 243.14

46 WP505587 Sealer, Mastic (1 Qt.).   (Replaces: 505587) In-Stock Immediately $ 182.65

46 WP542638 Grease, Silicone (1/2 Oz.)   (Replaces: 542638) In-Stock Immediately $ 12.78

46 542639 Cement, Alumilastic 1-1/4 Oz.) Appelez-nous -
46 944035 Bracket, Door Stop Appelez-nous -
46 212643 Sealer, Gum (4 Feet) In-Stock Immediately $ 82.13

46 479502 Tape, Vinyl 3/4 X 108``) Special Order $ 66.77

46 876370 Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) Special Order $ 243.14

46 876029 Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) Appelez-nous -
46 511873 Paint, Touch-up 1/2 Oz. (white Porcelain) Special Order $ 51.75

46 606755 Bag, Insulation (36-5/8`` X 46``) Special Order $ 82.37

46 799833 Kit, Evaporator Repair (aluminum Epoxy) Appelez-nous -
46 799832 Kit. Porcelain Repair (white) Appelez-nous -
46 799908 Silicone (spray) Appelez-nous -
46 350942 Primer White (13 Oz. Spray Can) Special Order $ 94.14

46 350941 Leveler, Enamel (13 Oz. Spray Can) Appelez-nous -
46 285006 Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939) Special Order $ 59.89

46 350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 40.12

46 261890 Xenamel, Gold (13 Oz. Spray Can) Appelez-nous -
46 285365 Paint, Spray (13 Oz.) (toast) Appelez-nous -
46 285366 Paint, Spray (13 Oz.) (platinum) Appelez-nous -
46 DD81-03523A Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110) Special Order $ 137.86

46 72112 Paint, (touch-up 1/2 Oz.) (toast) Appelez-nous -
46 DD81-03496A Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113) Special Order $ 117.11

46 799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

46 261891 Enamel, Gold (1 Qt. Uncut) Appelez-nous -
46 978883 Enamel, Almond (1 Qt. Uncut) Appelez-nous -
46 285367 Enamal, Toast (1 Qt. Uncut) Appelez-nous -
LIT1111898 Energy Guide Appelez-nous -
LIT879624 List, Repair Parts Appelez-nous -
LIT1105251 Service & Wiring Sheet Appelez-nous -
LIT1105749 Care & Use Guide Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

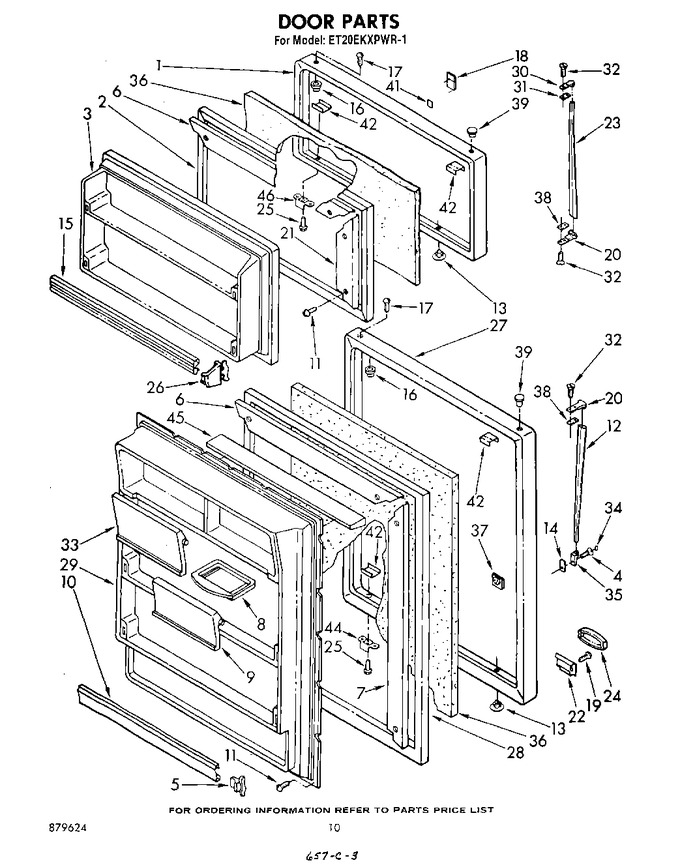

Diagram for ET20EKXPWR1
