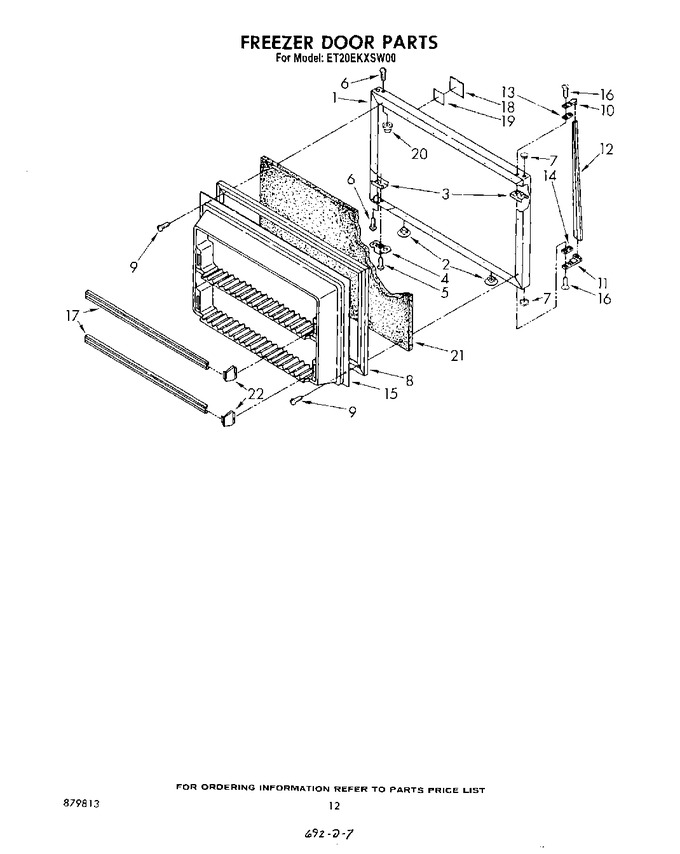

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1105514		Panel, Freezer Door (also Order Item 21) (toast)		Appelez-nous	-
1	1105513		Panel, Freezer Door (also Order Item 21) (platinum)		Appelez-nous	-
1	1105509		Panel, Freezer Door (also Order Item 21) (white)		Appelez-nous	-
1	1105511		Panel, Freezer Door (also Order Item 21) (almond)		Appelez-nous	-
1	1105512		Panel, Freezer Door (also Order Item 21) (golden Harvest)		Appelez-nous	-
2	989879		Hole Plug (2) (golden Harvest)		Appelez-nous	-
2	534927		Hole Plug (2) (white)		Appelez-nous	-
2	989197		Hole Plug (2) (almond)		Appelez-nous	-
2	1100196		Hole Plug (2) (toast)		Appelez-nous	-
2	1100197		Hole Plug (2) (platinum)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
6	488930		Screw (repair)		Appelez-nous	-
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	1100189		Hole Plug (platinum)		Appelez-nous	-
7	1100188		Hole Plug (toast)		Appelez-nous	-
7	WP2212648		Hole Plug (golden Harvest)   (Replaces: 989893)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
8	2188460A		Door Gasket, Magnetic   (Replaces: 1105515)				$ 231.51
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
9	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
10	WP2191882		Handle End, Top   (Replaces: 943184)				$ 62.77
11	943182		Handle End		Appelez-nous	-
12	982944		Handle, Center		Appelez-nous	-
13	943187		Shim, Handle				$ 25.14
14	943188		Spacer, Handle Door				$ 7.80
15	1106865		Interior Door Panel		Appelez-nous	-
16	WP488920		Screw, 8 X 5/8   (Replaces: 488920)				$ 7.98
17	1114327		Trim, Door Shelf (2)		Appelez-nous	-
18	1104898		Nameplate		Appelez-nous	-
19	991259		Strip, Tape		Appelez-nous	-
20	509929		Cap, Hinge Sleeve (4)		Appelez-nous	-
21	876029		Kit, Foam Slab		Appelez-nous	-
22	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
22	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
22	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
22	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
22	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
22	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
22	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
22	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
22	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
22	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
22	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
22	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
22	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
22	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
22	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
22	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
22	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
22	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
22	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
22	261891		Enamel, Gold (1 Qt. Uncut)		Appelez-nous	-
22	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
22	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
22	833938		Kit, Terminal Connector				$ 8.47
22	4386917		End Cap, Trim (4)   (Replaces: 1105685)			Immediately	$ 18.90
22	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
22	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
22	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
22	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
22	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
22	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
22	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
22	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
22	799908		Silicone (spray)		Appelez-nous	-
22	350942		Primer White (13 Oz. Spray Can)				$ 94.14
22	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
22	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
22	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
22	261886		Enamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
22	261890		Xenamel, Gold (13 Oz. Spray Can)		Appelez-nous	-
	LIT879813		Parts List		Appelez-nous	-
	LIT1116324		Energy Guide		Appelez-nous	-
	LIT1116367		Care & Use Guide		Appelez-nous	-
	LIT1114496		Service & Wiring Sheet		Appelez-nous	-
