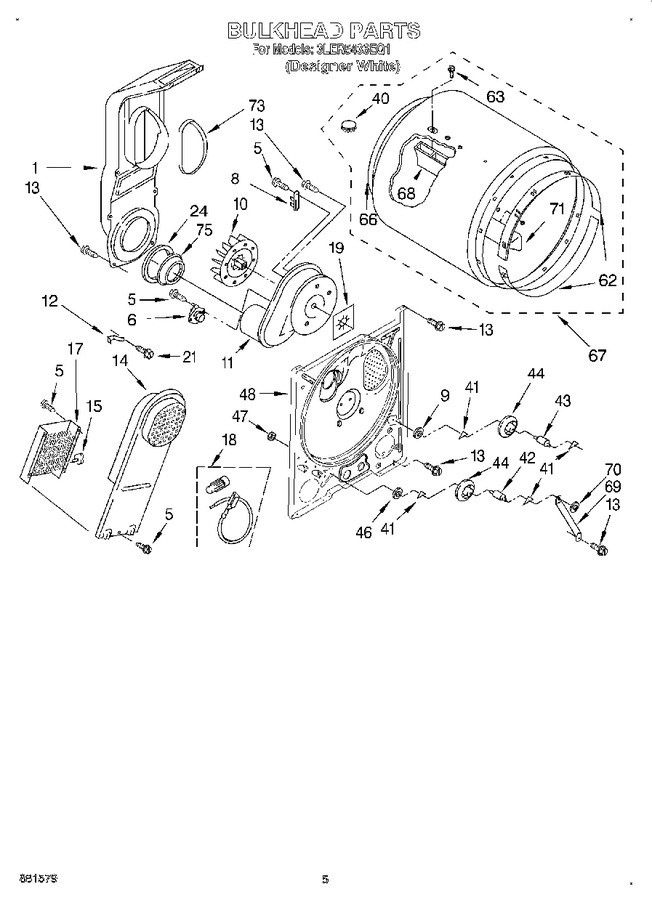

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11117429 | Lint Chute Assembly (Replaces: 348368) |
|
$ 175.01 | |||||
| 5 | WP90767 | Screw, 8 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 6 | WP3387137 | Thermostat, Internal Bias (Replaces: 3387137) |
|
$ 136.38 | |||||
| 8 | WP3392519 | Fuse, Thermal (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 9 | WP3388703 | Washer-support (Replaces: 3388703) |
|
$ 7.47 | |||||
| 10 | WP694089 | Wheel, Blower (includes Illus. No. 19) (Replaces: 694089) |
|
Immediately | $ 37.66 | ||||
| 11 | WP8577230 | Housing, Blower (Replaces: 3405016) |
|
$ 177.95 | |||||
| 12 | 279771 | Clip (Replaces: 3398161) |
|
$ 14.33 | |||||
| 13 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 14 | WP3401380 | Box, Heater (Replaces: 3401380) |
|
Immediately | $ 281.19 | ||||
| 15 | WP3404154 | Thermostat, (high Limit) 200~/160f (Replaces: 3404154) |
|
Immediately | $ 130.15 | ||||
| 17 | WP279843 | Element, Heater (Replaces: 3403586) |
|
Immediately | $ 157.36 | ||||
| 18 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 19 | 3394196 | Seal, Blower |
|
$ 5.65 | |||||
| 21 | WP489463 | Screw, 8-18 X 5/8 (Replaces: 489463) |
|
$ 7.82 | |||||
| 24 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 18.23 | ||||
| 40 | 8066086 | Drum, Hole Plug (Replaces: 3977358) |
|
$ 10.75 | |||||
| 41 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 42 | WPW10359270 | Shaft, L.h. (Replaces: 3399506) |
|
Immediately | $ 72.71 | ||||
| 43 | WPW10359269 | Shaft, R.h. (Replaces: 3399507) |
|
Immediately | $ 47.30 | ||||
| 44 | 349241T | Roller, Support (Replaces: 3397588) |
|
Immediately | $ 29.53 | ||||
| 46 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 7.19 | |||||
| 47 | WP3359452 | Nut, 3/8-16 (Replaces: 3359452) |
|
Immediately | $ 7.19 | ||||
| 48 | W11178667 | Bulkhead (Replaces: 3403491) |
|
$ 225.91 | |||||
| 62 | 279441 | Ring, Bearing (Replaces: 692526) |
|
Immediately | $ 66.22 | ||||
| 63 | WPW10109200 | Screw, 11-16 X 7/8 (Replaces: 97787) |
|
Immediately | $ 8.00 | ||||
| 66 | W10612022 | Seal, Rear Drum (Replaces: 3406130) |
|
Immediately | $ 57.15 | ||||
| 67 | W10899578 | Drum Assembly (Replaces: 695587) |
|
$ 357.65 | |||||
| 68 | WP692490 | Baffle, Drum (2) (Replaces: 692490) |
|
$ 159.27 | |||||
| 69 | W11684613 | Bracket, Support (Replaces: 3976434) |
|
$ 20.94 | |||||
| 70 | WP90296 | Clip (Replaces: 90296) |
|
$ 7.85 | |||||
| 71 | WP3403636 | Baffle, Drum (1) (Replaces: 3403636) |
|
$ 138.66 | |||||
| 73 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 8.63 | ||||
| 75 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 22.29 |
