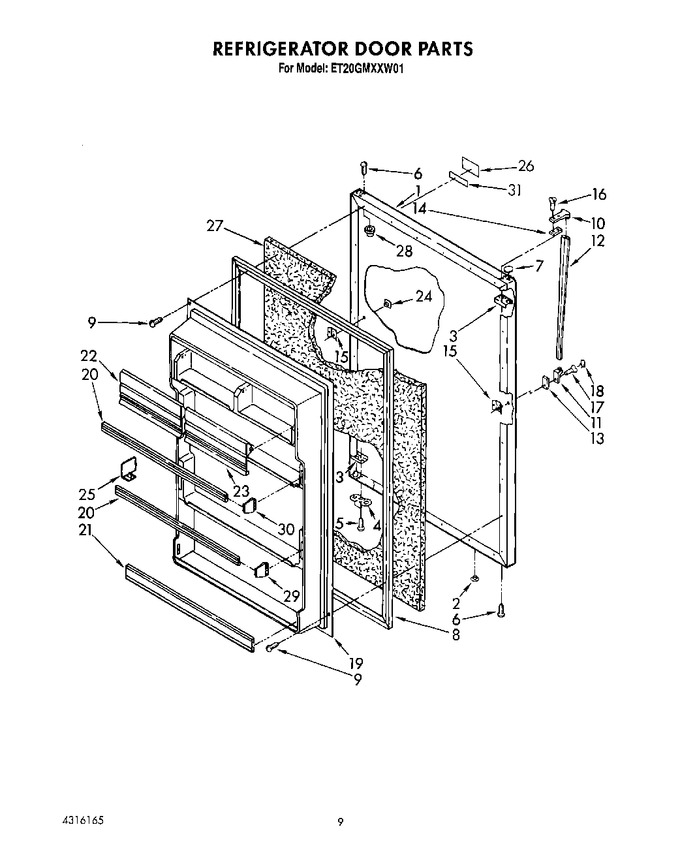

SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf


05 - Freezer Door


06 - Unit


07 - Refrigerator Door


08 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1105500		Panel, Refrigerator Door (white)		Appelez-nous	-
1	1105502		Panel, Refrigerator Door (almond) (also Order Item 27)		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	1115910		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
8	2188450A		Door Gasket, Magnetic   (Replaces: 1119565)				$ 284.09
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
10	2148503		Handle End		Appelez-nous	-
11	WP2183139		Handle End Cap   (Replaces: 1101632)			Immediately	$ 51.98
12	1109166		Handle, Center		Appelez-nous	-
13	992872		Shim, Handle End (side)		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
15	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.88
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
18	WP1101634		Screw Cover   (Replaces: 981182)				$ 9.68
19	1106856		Interior Door Panel		Appelez-nous	-
20	2148750		Trim, Door (2)		Appelez-nous	-
21	2148170		Trim, Door		Appelez-nous	-
22	2148168		Compartment Door, Utility		Appelez-nous	-
23	2148167		Compartment, Butter Door		Appelez-nous	-
24	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 7.77
25	1114380		Divider		Appelez-nous	-
26	944380		Nameplate		Appelez-nous	-
27	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
28	509929		Cap, Hinge Sleeve (4)		Appelez-nous	-
29	4318297		Endcap, Trim (2)   (Replaces: 1106861)				$ 24.43
30	4386917		End Cap, Trim (2)   (Replaces: 1105685)			Immediately	$ 18.90
31	4314268		See Complete Cross-reference Listing Film Card 800-a-1		Appelez-nous	-
31	991259		Tape		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
