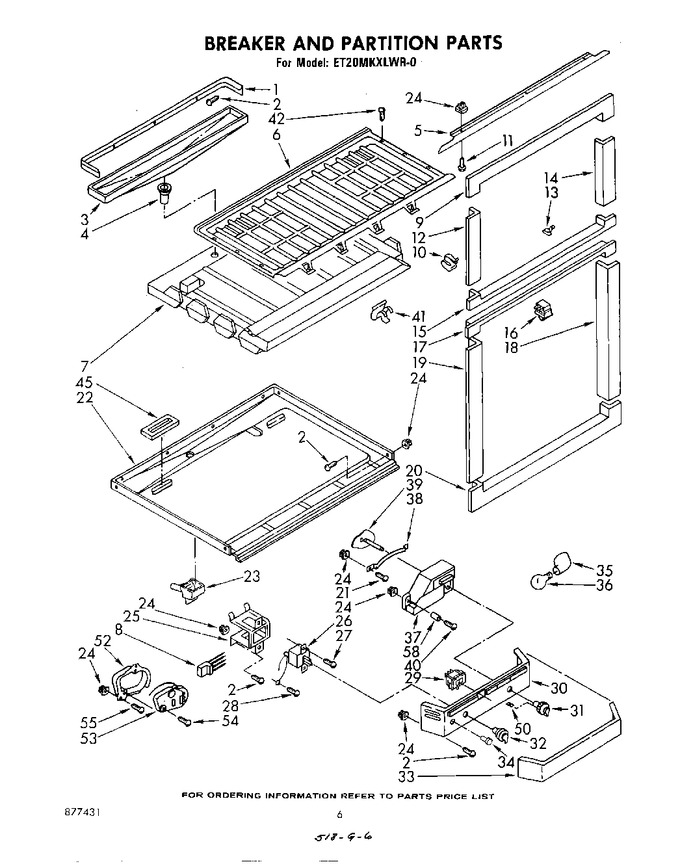

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	843291		Gasket, Drain Pan		Appelez-nous	-
2	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
3	841686		Pan, Evaporator Drain		Appelez-nous	-
4	841770		Fitting, Drain Pan		Appelez-nous	-
5	982582		Baffle, Liner Top		Appelez-nous	-
6	848423		Separator (top)		Appelez-nous	-
7	991173		Insulation, Separator		Appelez-nous	-
8	481782		Wiring, Liner (defrost Timer)		Appelez-nous	-
9	940918		Breaker, Freezer (top)		Appelez-nous	-
10	836090		Clip (2)		Appelez-nous	-
11	486214		Screw, 8-15 X 1/2 (3)		Appelez-nous	-
12	841719		Breaker, Freezer (l.s.)		Appelez-nous	-
13	534365		Clip (8)				$ 14.83
14	841722		Breaker, Freezer (r.s.)		Appelez-nous	-
15	841642		Breaker, Mullion (top)		Appelez-nous	-
16	W11384469		Switch   (Replaces: 549702)			Immediately	$ 39.09
17	841643		Breaker, Mullion Bottom		Appelez-nous	-
18	841724		Breaker, Refrigerator (r.s.)		Appelez-nous	-
19	841721		Breaker, Refrigerator (l.s.)		Appelez-nous	-
20	839829		Breaker, Refrigerator (bottom)		Appelez-nous	-
21	488624		Screw, 8 X 3/8		Appelez-nous	-
22	981738		Separator (bottom)		Appelez-nous	-
23	943918		Cup, Drain		Appelez-nous	-
24	842339		Grommet		Appelez-nous	-
25	848446		Bracket, Thermostat		Appelez-nous	-
26	WP819470		Thermostat & Barrier   (Replaces: 851612)				$ 164.96
27	WP965173		Screw, 8-15 X 3/8 (2)   (Replaces: 487584)			Immediately	$ 11.87
28	WP489128		Screw   (Replaces: 488500)				$ 11.40
29	938049		Toggle, Switch		Appelez-nous	-
30	942214		Panel, Control		Appelez-nous	-
31	837445		Knob, Control (includes Illus. 50)		Appelez-nous	-
32	836482		Knob, Thermostat		Appelez-nous	-
33	983910		Lens, Light		Appelez-nous	-
34	534927		Plug, Hole		Appelez-nous	-
35	4387478		Socket   (Replaces: 851067)			Immediately	$ 115.67
36	8009		Bulb   (Replaces: 527949)			Immediately	$ 18.67
37	836487		Air Diffuser		Appelez-nous	-
38	836493		Retainer		Appelez-nous	-
39	836247		Damper, Air		Appelez-nous	-
40	488357		Screw, 8 X 1-1/4 (2)		Appelez-nous	-
41	939139		Clip, Mullion (2)		Appelez-nous	-
42	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 8.28
45	981725		Gasket, Air Return (2)		Appelez-nous	-
50	837444		Knob, Retainer		Appelez-nous	-
52	983079		Container Timer		Appelez-nous	-
53	850694		Timer, Defrost (8 Hr.) (alternate)		Appelez-nous	-
53	851161		Timer, Defrost (8 Hr.)		Appelez-nous	-
54	488678		Screw, 8 X 1-3/8 (2)		Appelez-nous	-
55	WP489069		Screw, 8 X 1/2 (2)   (Replaces: 488772)			Immediately	$ 8.40
58	836667		Spacer (2)		Appelez-nous	-
