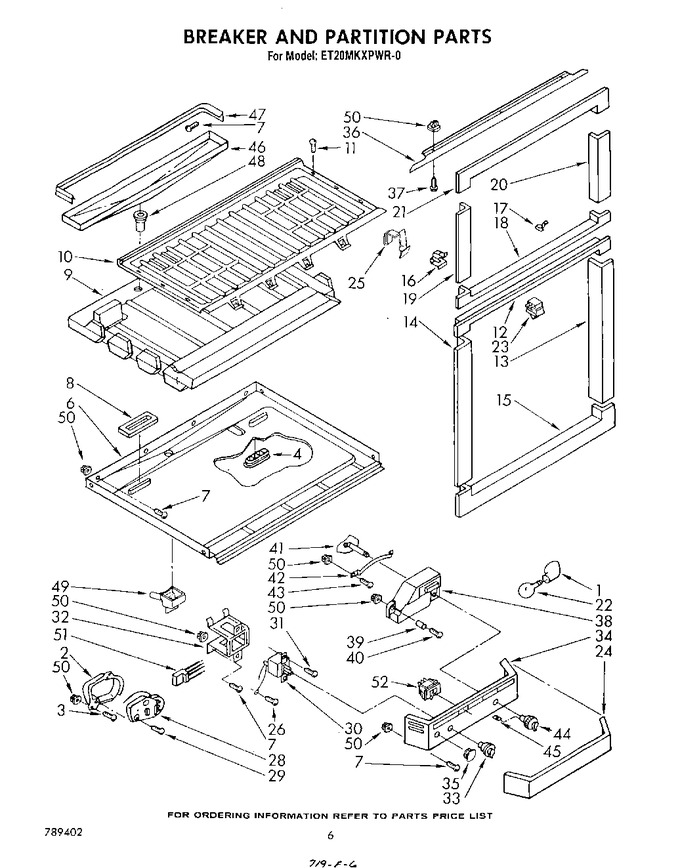

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4387478		Socket   (Replaces: 851067)			Immediately	$ 115.67
2	983079		Container Timer		Appelez-nous	-
3	WP489069		Screw, 8 X 1/2 (2)   (Replaces: 488772)			Immediately	$ 8.40
4	946683		Grommet, Air Return (2)		Appelez-nous	-
6	981738		Separator (bottom)		Appelez-nous	-
7	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
8	981725		Gasket, Air Return		Appelez-nous	-
9	991173		Insulation, Separator		Appelez-nous	-
10	848423		Separator (top)		Appelez-nous	-
11	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 488320)			Immediately	$ 8.28
12	841643		Breaker, Mullion Bottom		Appelez-nous	-
13	841724		Breaker, R.s.		Appelez-nous	-
14	841721		Breaker, L.s.		Appelez-nous	-
15	839829		Breaker, Bottom		Appelez-nous	-
16	836090		Breaker, Clip		Appelez-nous	-
17	534365		Breaker, Trim Clip				$ 14.83
18	841642		Breaker, Mullion (top)		Appelez-nous	-
19	841719		Breaker L.s.		Appelez-nous	-
20	841722		Breaker R.s.		Appelez-nous	-
21	940918		Breaker, Top		Appelez-nous	-
22	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
23	W11384469		Switch, Rocker Arm   (Replaces: 1108112)			Immediately	$ 39.09
24	983910		Light Lens		Appelez-nous	-
25	939139		Clip, Wrap		Appelez-nous	-
26	WP489128		Screw, 8-32 X 3/8   (Replaces: 488500)				$ 11.40
28	943428		Defrost Timer		Appelez-nous	-
29	488678		Screw, 8 X 3/8 (2)		Appelez-nous	-
30	GC506		Thermostat & Barrier Assembly   (Replaces: 850955)				$ 50.44
31	WP965173		Screw, 8-15 X 3/8 (2)   (Replaces: 487584)			Immediately	$ 11.87
32	848446		Bracket, Thermostat		Appelez-nous	-
33	836482		Knob, Temperature Control		Appelez-nous	-
34	942214		Panel, Control		Appelez-nous	-
35	534927		Hole Plug		Appelez-nous	-
36	982582		Air Baffle		Appelez-nous	-
37	WP489069		Screw, 8 X 1/2 (3)   (Replaces: 488772)			Immediately	$ 8.40
38	836487		Air Diffuser		Appelez-nous	-
39	836667		Spacer (2)		Appelez-nous	-
40	488357		Screw, 8 X 1-1/4 (2)		Appelez-nous	-
41	984658		Damper, Air				$ 8.39
42	836493		Retrainer, Air Dampener		Appelez-nous	-
43	488624		Screw, 8 X 3/8		Appelez-nous	-
44	837445		Control Knob		Appelez-nous	-
45	837444		Knob, Retainer		Appelez-nous	-
46	841686		Drain Pan		Appelez-nous	-
47	843291		Gasket, Drain Pan		Appelez-nous	-
48	841770		Fitting, Drain Pan		Appelez-nous	-
49	943918		Cup, Drain		Appelez-nous	-
50	842339		Grommet		Appelez-nous	-
51	481782		Liner Wiring (defrost Timer)		Appelez-nous	-
52	938049		Switch, Toggle		Appelez-nous	-
