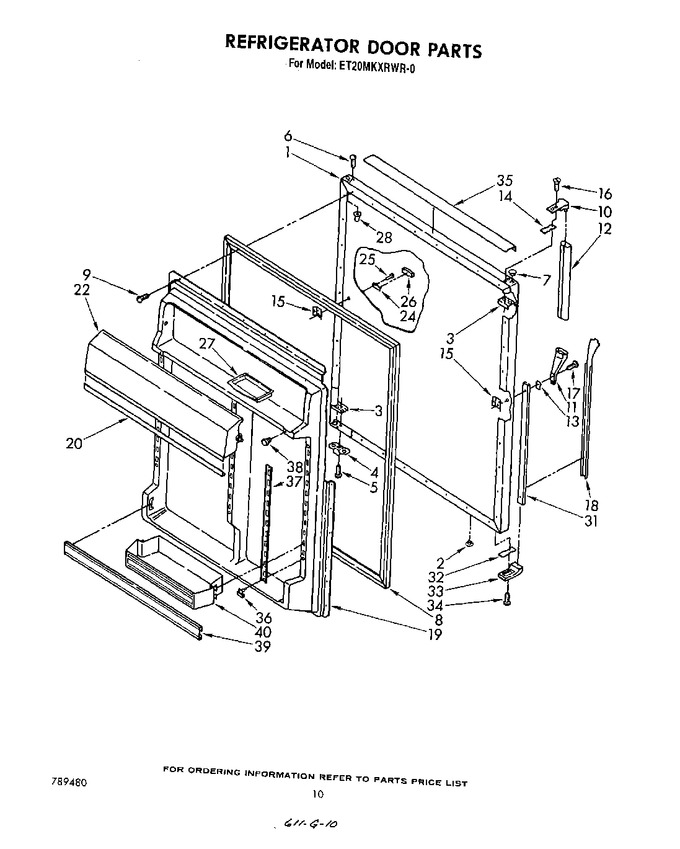

02 - Cabinet
03 - Liner
04 - Compartment Separator
05 - Shelf , Lit/optional
06 - Unit
07 - Refrigerator Door
08 - Freezer Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1105500 | Panel, Refrigerator Door (white) |
|
- | |||||
| 1 | 1105504 | Panel, Refrigerator Door (platinum) |
|
- | |||||
| 1 | 1105505 | Panel, Refrigerator Door (toast) |
|
- | |||||
| 1 | 1105503 | Panel, Refrigerator Door (golden Harvest) |
|
- | |||||
| 1 | 1105502 | Panel, Refrigerator Door (almond) |
|
- | |||||
| 2 | 534927 | Hole Plug (2) |
|
- | |||||
| 3 | 943185 | Plate, Tap (4) |
|
- | |||||
| 4 | 944036 | Bracket, Door Stop |
|
- | |||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 6 | WP8281206 | Screw, 8-15 X 1/2 (Replaces: 489028) |
|
$ 8.37 | |||||
| 6 | 488930 | Screw (repair) |
|
- | |||||
| 7 | 1100188 | Hole Plug (toast) |
|
- | |||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 7 | 1100189 | Hole Plug (platinum) |
|
- | |||||
| 7 | 989196 | Hole Plug (almond) |
|
- | |||||
| 7 | WP2212648 | Hole Plug (golden Harvest) (Replaces: 989893) |
|
Immediately | $ 8.19 | ||||
| 8 | 2188450A | Door Gasket, Magnetic (Replaces: 1105497) |
|
$ 284.09 | |||||
| 9 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 9 | WP489069 | Screw, 7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 10 | 944157 | Handle End |
|
- | |||||
| 11 | 935103 | Handle End, Side |
|
- | |||||
| 12 | 1106054 | Handle, Center |
|
- | |||||
| 12 | 1110378 | Handle, Center (for Platinum Model Only) |
|
- | |||||
| 13 | 935075 | Shim, Handle End (side) |
|
- | |||||
| 14 | 943188 | Spacer, Handle Door |
|
$ 7.80 | |||||
| 15 | WP939101 | Screw Anchor (2) (Replaces: 939101) |
|
$ 7.88 | |||||
| 16 | WP488920 | Screw, 8 X 5/8 (2) (Replaces: 488920) |
|
$ 7.98 | |||||
| 17 | WP250830 | Screw (Replaces: 489048) |
|
$ 8.78 | |||||
| 18 | 1108839 | Insert, Handle (platinum) |
|
- | |||||
| 18 | 1108838 | Insert, Handle (toast) |
|
- | |||||
| 18 | 1108837 | Insert, Handle (almond) |
|
- | |||||
| 18 | 1108836 | Insert, Handle (golden Harvest) |
|
- | |||||
| 18 | 1108835 | Insert, Handle (white) |
|
- | |||||
| 19 | 1106932 | Interior Door Panel |
|
- | |||||
| 20 | 1106959 | Trim, Door Compartment |
|
- | |||||
| 22 | 1106600 | Compartment Door, Utility |
|
- | |||||
| 24 | 843213 | Clip, Medallion |
|
- | |||||
| 25 | WP488729 | Screw, 8 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 26 | 989903 | Medallion (golden Harvest) |
|
- | |||||
| 26 | 1100194 | Medallion (toast) |
|
- | |||||
| 26 | 989904 | Medallion (almond) |
|
- | |||||
| 26 | 1100195 | Medallion (platinum) |
|
- | |||||
| 26 | 848382 | Medallion (white) |
|
- | |||||
| 27 | 520747 | Tray, Butter |
|
- | |||||
| 28 | 509929 | Cap, Hinge Sleeve (4) |
|
- | |||||
| 31 | 935871 | Retainer, Insert |
|
- | |||||
| 32 | 1105805 | Shim, Endcap |
|
- | |||||
| 33 | 1105804 | Endcap, Insert Retainer |
|
- | |||||
| 34 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 35 | 1106148 | Trim, Door |
|
- | |||||
| 36 | 1106864 | Retainer, Trim (6) |
|
- | |||||
| 37 | 1108631 | Trim, Interior Door (3) |
|
- | |||||
| 38 | 532154 | Bunper (2) |
|
- | |||||
| 39 | 1106978 | Trim, Door Shelf |
|
- | |||||
| 40 | 1105697 | Shelf, Cantilever (4) |
|
- |
