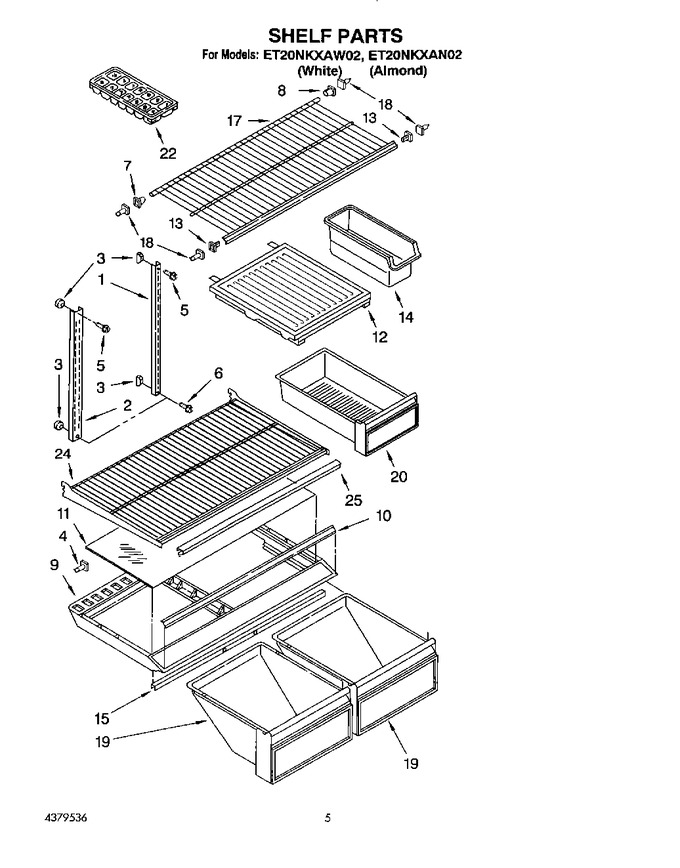

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114466		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (6)				$ 31.35
4	1106612		Shelf Stud (2)				$ 7.56
5	489345		Screw, 8-32 X 1-1/4		Appelez-nous	-
6	WP488163		Screw, 8 X 1-1/4   (Replaces: 488163)				$ 7.92
7	819091		Shelf Stud, L.s.   (Replaces: 946358)				$ 41.66
8	819091		Shelf Stud, R.s.   (Replaces: 946357)				$ 41.66
9	2148159		Crisper Cover		Appelez-nous	-
10	2172709		Trim, Crisper Cover		Appelez-nous	-
11	1106929		Glass, Crisper Cover		Appelez-nous	-
12	944739		Cover, Meat Pan		Appelez-nous	-
13	946356		Shelf Stud (2)		Appelez-nous	-
14	WP982704		Container   (Replaces: 2148079)				$ 32.55
15	WP2172748		Support, Crisper   (Replaces: 2172748)				$ 102.08
17	1106615		Shelf, Freezer		Appelez-nous	-
18	946355		Support Stud (4)		Appelez-nous	-
19	2148160		Pan, Crisper		Appelez-nous	-
20	1124976		Pan, Meat		Appelez-nous	-
22	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 47.84
24	2162582		Shelf, Full Cantilever (2)		Appelez-nous	-
25	1114436		Trim, Shelf		Appelez-nous	-
