SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf

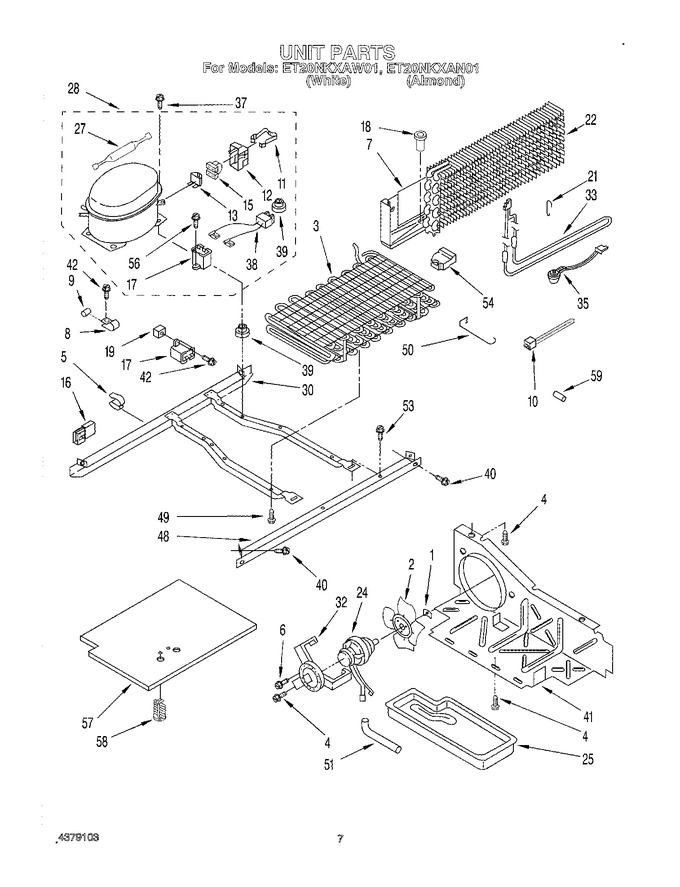

05 - Freezer Door


06 - Unit


07 - Refrigerator Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	851732		Fan, Blade		Appelez-nous	-
3	2154010		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489337)			Immediately	$ 8.38
5	548745		Clip, Wire		Appelez-nous	-
6	681390		Screw   (Replaces: 489019)				$ 13.71
7	2153974		Drain Pan/ Heat Shield		Appelez-nous	-
8	2159720		Tube Clamp		Appelez-nous	-
9	2149670		Dampener		Appelez-nous	-
10	WPW10339879		Strap   (Replaces: 2155774)				$ 8.30
11	938384		Spring, Relay Case Service Only		Appelez-nous	-
12	1108115		Case, Relay (service)		Appelez-nous	-
12	WP2162358		Case, Relay (production)   (Replaces: 2162358)				$ 95.29
13	4387535		Overload   (Replaces: 2154760)				$ 191.05
15	N/A		Relay (see Overload)		Appelez-nous	-
16	1118850		Housing Plug		Appelez-nous	-
17	2154565		Running Capacitor (service)		Appelez-nous	-
18	981629		Drain Fitting		Appelez-nous	-
19	509812		Grommet, Screw		Appelez-nous	-
21	2149120		Support, Heater		Appelez-nous	-
22	2153978		Evaporator		Appelez-nous	-
24	833697		Fan, Motor   (Replaces: 2154735)			Immediately	$ 88.15
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
27	W10843121		Drier   (Replaces: 2164409)			Immediately	$ 57.13
28	876765		Tube Kit				$ 90.65
28	W10309990		Compressor (includes Items 11 12, 13, 15, 17, 27, 38, 39 & 56) (also Order)   (Replaces: 2162354)			Immediately	$ 632.81
30	2160498		Unit Mounting Frame		Appelez-nous	-
32	2162062		Fan, Motor Bracket		Appelez-nous	-
33	2162019		Heater, Defrost		Appelez-nous	-
35	WP4387503		Bi-metal, Defrost   (Replaces: 2149643)			Immediately	$ 47.89
37	876811		Screw   (Replaces: 489373)				$ 7.79
38	WP2172890		Wire Asm   (Replaces: 1127675)				$ 8.51
39	876811		Grommet   (Replaces: 1100826)				$ 7.79
40	489340		Screw		Appelez-nous	-
41	1127938		Air, Baffle		Appelez-nous	-
42	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
48	2149717		Unit Mounting Rail		Appelez-nous	-
50	1105612		Guard, Fan				$ 42.61
51	2154119		Drain Extension		Appelez-nous	-
53	488454		Screw,		Appelez-nous	-
54	1118805		Support, Evaporator (r.s.)		Appelez-nous	-
54	2159708		Support-evaporator (l.s.)		Appelez-nous	-
56	W11693756		Screw   (Replaces: 487240)			Immediately	$ 14.76
57	2160505		Cover, Unit Bottom		Appelez-nous	-
58	489396		Clip				$ 11.26
59	978030		Valve, Access (3/4``)				$ 137.25
59	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
59	978029		Valve Access (5/8``)				$ 93.85
59	876764		Valve, Access(3/16``)			Immediately	$ 95.92
59	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
59	978026		Valve, Access (5/16``)			Immediately	$ 134.49
59	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
59	978028		Valve, Access (1/2)		Appelez-nous	-
