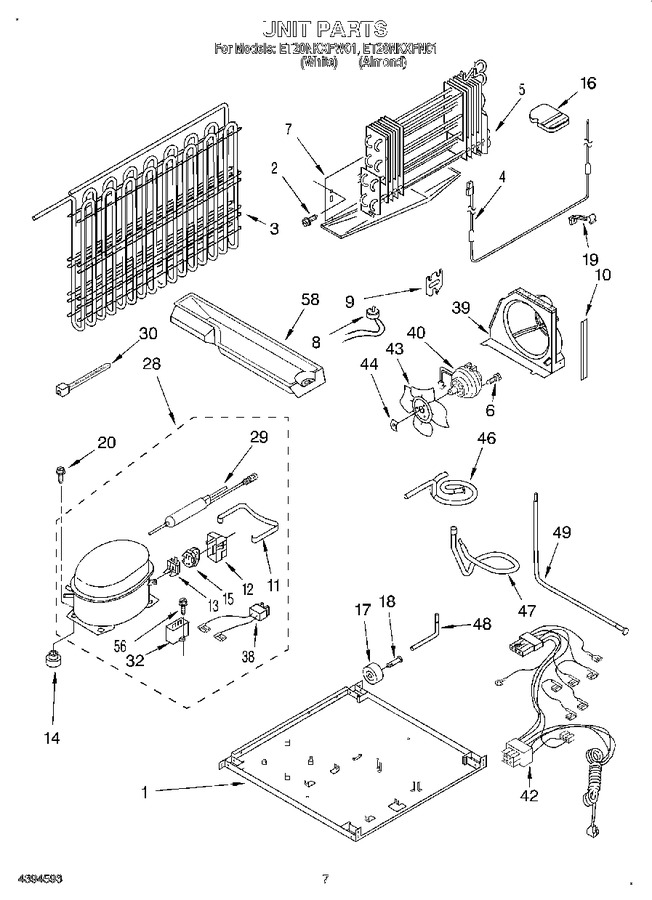

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet
02 - Door
03 - Liner
04 - Unit
05 - Shelf, Lit/optional
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2195272 | Plate, Unit Mounting |
|
- | |||||
| 2 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 3 | 2195400 | Condenser |
|
- | |||||
| 4 | WP2315530 | Heater, Defrost (Replaces: 2166124) |
|
$ 168.19 | |||||
| 5 | 2195390 | Evaporator Assy. |
|
$ 228.01 | |||||
| 6 | WP8281196 | Screw (Replaces: 489494) |
|
Immediately | $ 7.55 | ||||
| 7 | 2172620 | Drain Pan |
|
- | |||||
| 8 | WP4387503 | Defrost Bimetal (Replaces: 2182380) |
|
Immediately | $ 47.89 | ||||
| 9 | 2176301 | Bracket, Heater |
|
$ 6.37 | |||||
| 10 | 2163780 | Extension, Air Baffle |
|
- | |||||
| 11 | 943322 | Cover, Strap |
|
- | |||||
| 12 | 1105055 | Cover |
|
- | |||||
| 13 | 4387913 | Overload (includes Relay) (service) |
|
Immediately | $ 84.39 | ||||
| 13 | 2183409 | Overload (includes Relay) (production) |
|
$ 130.44 | |||||
| 14 | W11661108 | Grommet (4) (production) (Replaces: 2183042) |
|
$ 15.21 | |||||
| 14 | 876811 | Grommet, (service Compressor) (4) (Replaces: 1100826) |
|
$ 7.79 | |||||
| 15 | N/A | Relay (see Overload) |
|
- | |||||
| 16 | 2189906 | Support Block |
|
- | |||||
| 17 | 4388239 | Roller (2) (Replaces: 836054) |
|
Immediately | $ 75.99 | ||||
| 18 | W11594405 | Rivet (Replaces: 2179826) |
|
Immediately | $ 19.12 | ||||
| 19 | 2182338 | Clip, Heater |
|
$ 6.62 | |||||
| 20 | W11661574 | Screw (Replaces: 489473) |
|
$ 14.29 | |||||
| 28 | 482801 | Installation Kit |
|
$ 119.50 | |||||
| 28 | W10309988 | Compressor (includes Items 12, 13, 15, 29, 32, 38 & 56) (also Order) (Replaces: 2183439) |
|
Immediately | $ 587.29 | ||||
| 28 | 876765 | Tube Kit |
|
Immediately | $ 90.65 | ||||
| 29 | W10843121 | Drier (Replaces: 2174865) |
|
Immediately | $ 57.13 | ||||
| 30 | WPW10339879 | Clamp (Replaces: 2155774) |
|
$ 8.30 | |||||
| 32 | 2169137 | Capacitor (service Only) |
|
- | |||||
| 38 | WP2172890 | Wire Assembly (Replaces: 2172890) |
|
$ 8.51 | |||||
| 39 | 2195677 | Air Baffle |
|
- | |||||
| 40 | W10822259 | Motor, Condenser (Replaces: 2183437) |
|
Immediately | $ 221.30 | ||||
| 42 | 2189997 | Wire Assy. Unit |
|
- | |||||
| 43 | 2190685 | Blade, Fan |
|
$ 52.00 | |||||
| 44 | WP486692 | Nut (Replaces: 486692) |
|
$ 8.43 | |||||
| 46 | 2184451 | Tube, Discharge |
|
- | |||||
| 47 | 2182475 | Tube, Suction |
|
- | |||||
| 48 | 2154109 | Tube, Process |
|
$ 76.26 | |||||
| 49 | 2174670 | Tube, Condenser To Heat Loop |
|
- | |||||
| 56 | W11693756 | Screw (Replaces: 488687) |
|
Immediately | $ 14.76 | ||||
| 58 | 482278 | Start Kit |
|
- | |||||
| 58 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 58 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 58 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 58 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| 58 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 58 | 2176276 | Tray, Evaporator |
|
- | |||||
| 58 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| 58 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 |
