01 - Top And Console, Lit/optional


02 - Cabinet


03 - Bulkhead


04 - 3402845 Burner Assembly

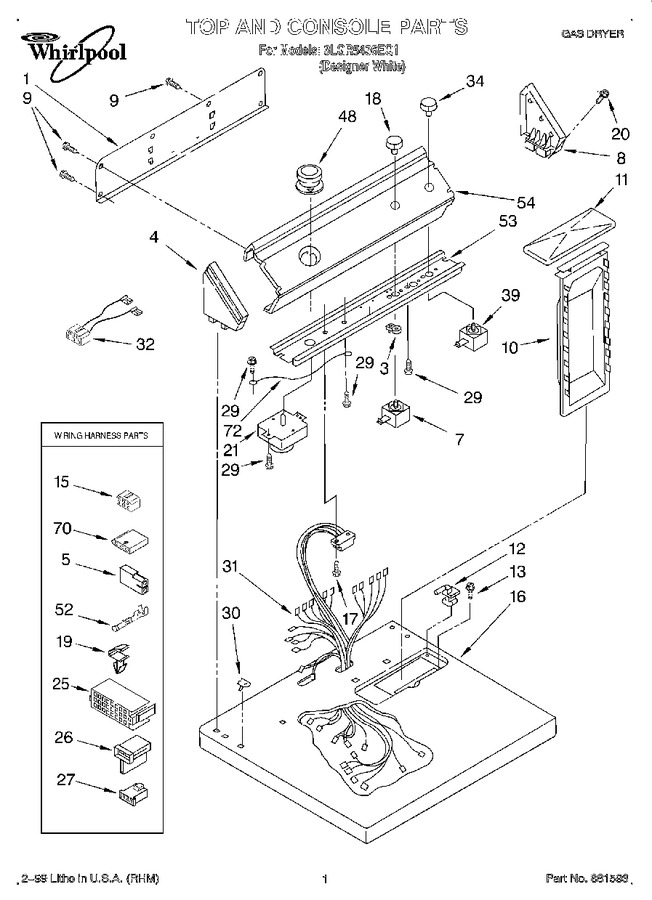

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3397545		Panel, Rear Console		Appelez-nous	-
3	279872		Resistor   (Replaces: 3388706)				$ 74.94
4	3358528		Cap, End (l.h.) (white)		Appelez-nous	-
5	717252		Plug, 2-way Terminal		Appelez-nous	-
7	3399638		Switch, Temperature				$ 129.75
8	3358513		Cap, End (r.h.) (white)		Appelez-nous	-
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.19
10	WP349639		Handle & Lint Screen Assembly   (Replaces: 349639)			Immediately	$ 37.21
11	688150		Cover, Lint Screen (white)		Appelez-nous	-
12	WPW10044470		Hinge, R.h.   (Replaces: 339229)				$ 7.72
12	WPW10044480		Hinge, L.h.   (Replaces: 339230)				$ 7.72
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
15	3347243		Connector 6-circuit		Appelez-nous	-
16	3396022		Top (white)		Appelez-nous	-
17	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
18	WP3957796		Knob, Control (1) (white)   (Replaces: 3950759)			Immediately	$ 54.83
19	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
20	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
21	3396215		Timer Assembly (50 Hz.)				$ 180.59
25	W10113937		Clip, Ground   (Replaces: 357572)				$ 10.83
26	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.73
27	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.95
29	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
31	3406625		Harness, Wiring		Appelez-nous	-
32	8283286		Wire, Jumper (temperature)   (Replaces: 3396028)		Appelez-nous	-
34	WP3957800		Knob, Push-to-start   (Replaces: 3406133)				$ 50.40
39	WP3395382		Relay, Push-to-start   (Replaces: 3395382)			Immediately	$ 43.80
48	WP3957752		Timer Knob Assembly (white)   (Replaces: 3406143)				$ 53.96
52	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
53	8054298		Bracket, Control		Appelez-nous	-
54	3401065		Panel, Control (white)		Appelez-nous	-
70	3936144		Connector (door Switch)				$ 20.21
72	690853		Wire, Ground		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 51.44
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
	LIT3406302		Label, Wiring Diagram		Appelez-nous	-
	LIT3401012		Use & Care Guide		Appelez-nous	-
	LIT3406438		Instructions, Installation		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 23.02
	LIT677818		Dryer		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	W10851673		Transformer   (Replaces: 3404388)				$ 397.59

    View Diagram in Separate Window       Print Part List
