SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Liner


04 - Unit

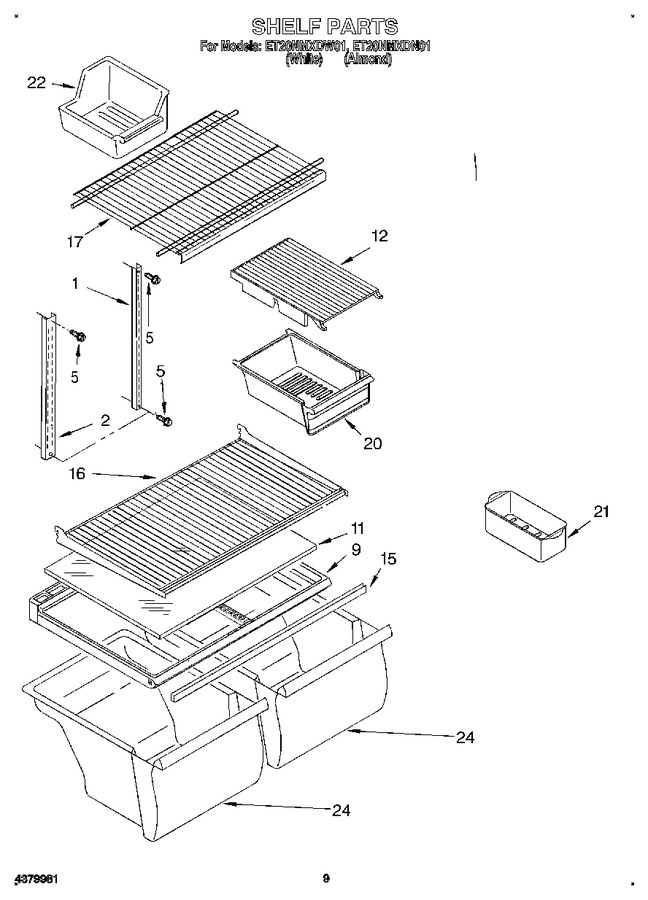

05 - Shelf


06 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2172637		Shelf, Ladder (2)		Appelez-nous	-
2	2172638		Shelf, Ladder Center		Appelez-nous	-
5	W11544659		Screw   (Replaces: 489415)				$ 14.35
9	WP2314549		Crisper Cover   (Replaces: 2176213)				$ 279.10
11	WP2176225		Insert, Crisper Cover   (Replaces: 2163843)				$ 264.41
12	2166213		Cover, Meat Pan		Appelez-nous	-
15	WP2172748		Crisper, Support   (Replaces: 2163832)				$ 102.08
16	2179836		Shelf, Full Cantilever		Appelez-nous	-
17	2163830		Shelf, Freezer		Appelez-nous	-
20	WP2218132K		Pan, Meat   (Replaces: 2172650)			Immediately	$ 171.43
21	W10136387A		Egg Bin   (Replaces: 2166748)				$ 19.54
22	W11625904		Pan, Ice Cube   (Replaces: 2166261)				$ 67.83
24	W10854037		Pan, Crisper   (Replaces: 2170954)			Immediately	$ 179.19

    View Diagram in Separate Window       Print Part List
