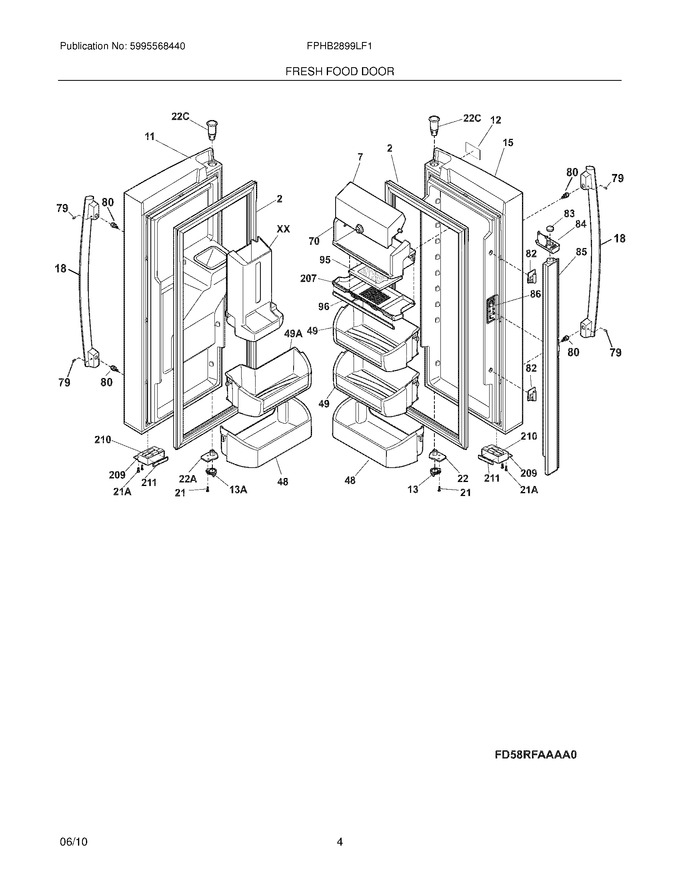

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	242011401		Door-dairy,removable		Appelez-nous	-
11	241988035		Door-refr,stainless ,lh				$ 420.01
12	242015101		Nameplate				$ 5.06
13	241868401		Door Stop,refrig Rh ,plated				$ 20.48
15	241988011		Door-refr,stainless ,rh				$ 277.31
18	241972501		Handle-door,stainless				$ 227.22
21	242017501		Screw,10-32 X 0.750				$ 17.33
22	242075601		Cam,upper Hinge ,rh				$ 23.31
22	5303918453		Cam,upper Hinge ,rh   (Replaces: 241869501)				$ 55.13
48	242071401		Bin-door,pseudo ,white			Immediately	$ 102.21
49	242037201		Bin-door,gallon			Immediately	$ 124.22
70	241804604		Compartment-dairy,removable		Appelez-nous	-
79	218755401		Screw-set,10-32 X 0.375			Immediately	$ 27.80
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 20.67
82	241779401		Hinge-mullion,upper/lower ,flipper			Immediately	$ 24.43
83	241812201		Magnet,door				$ 73.24
84	5303918644		Guide-mullion Flipper   (Replaces: 241779702)				$ 46.04
85	241778811		Flipper Mullion Assembly   (Replaces: 241778803)			Immediately	$ 296.89
86	241779802		Hinge-mullion,center ,flipper   (Replaces: 241779801)			Immediately	$ 45.83
95	EAFCBF		Filter-air   (Replaces: 242047801)			Immediately	$ 30.71
96	242048006		Door-air Filter   (Replaces: 242048002)				$ 18.54
136	242071501		Dispenser-can,white				$ 197.18
207	242047901		Housing-air Filter				$ 89.32
209	242291001		Housing-magnet,white   (Replaces: 242021001)				$ 22.75
210	241779101		Magnet,door   (Replaces: 241779103)			Immediately	$ 34.65
211	241979601		Bumper,rubber				$ 25.20
13A	241868402		Door Stop,refr Lh ,plated				$ 20.48
21A	5304453707		Screw,no.8-18   (Replaces: 241953901)			Immediately	$ 17.69
22A	242075602		Cam,upper Hinge ,lh				$ 27.80
22A	5303918453		Cam,upper Hinge ,lh   (Replaces: 241869502)				$ 55.13
22C	241760401		Bearing,hinge ,top			Immediately	$ 21.26
49A	242037202		Bin-door,2-liter			Immediately	$ 117.16
F2	241778315		Gasket-refr Door,gray ,magnetic   (Replaces: 241778307)			Immediately	$ 99.87
F49A	242012001		Liner-door Bin,2-l				$ 74.15
FNI	240451503		Screw   (Replaces: 242064001)				$ 4.21
NI	5304517889		Liner-door Bin,gallon   (Replaces: 242012201)				$ 72.47
NI	241701901		Screw Driver		Appelez-nous	-
NI	241601001		Wrench,allen		Appelez-nous	-
NI	242015001		Screw,no.10 8-19 X 1/2			Immediately	$ 18.11
NI	242068601		Bumper,rh Door				$ 16.01
NI	5304520993		Harness-wiring,flipper Mullion   (Replaces: 241788401)			Immediately	$ 46.63
NI	5303918596		Dispenser Heater Kit,115   (Replaces: 5303918371)				$ 352.64
