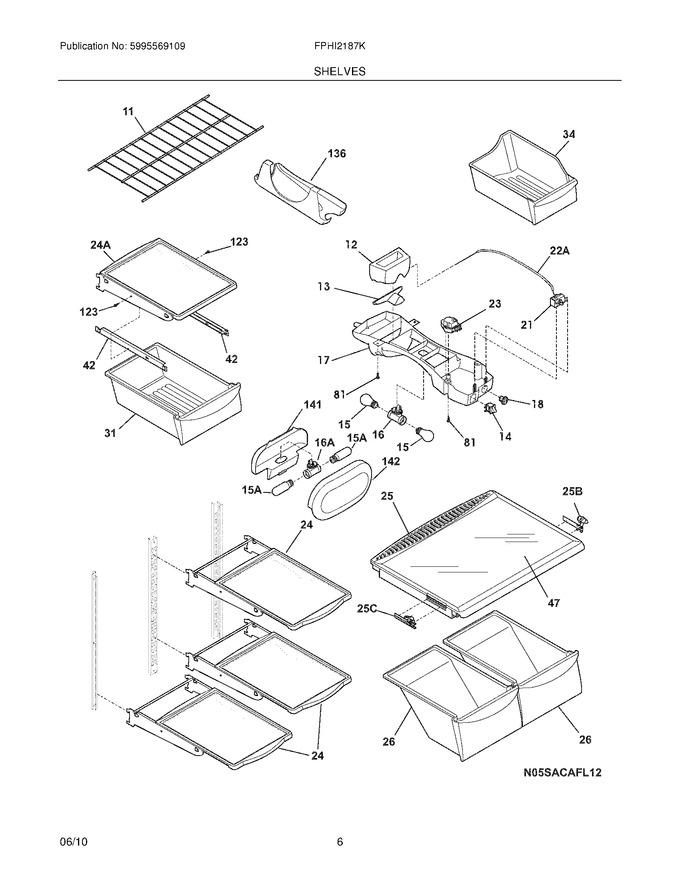

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 240358006 | Shelf,freezer ,full-width ,wire |
|
$ 45.41 | |||||
| 12 | 240545901 | Diffuser-air,top |
|
$ 77.96 | |||||
| 13 | 240362601 | Diffuser-air,bottom |
|
Immediately | $ 46.46 | ||||
| 15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 22.75 | ||||
| 16 | 240364201 | Socket-light/lamp,dual |
|
$ 111.67 | |||||
| 17 | 240368105 | Control Box (Replaces: 240368104) |
|
Immediately | $ 144.93 | ||||
| 18 | 240360801 | Knob-temp Control |
|
$ 43.95 | |||||
| 24 | 240350143 | Shelf-``spill-safe``,cantilever ,sliding |
|
$ 179.24 | |||||
| 25 | 240364790 | Cover-crisper Pan |
|
$ 135.66 | |||||
| 26 | 240343803 | Pan-crisper,(2) |
|
Immediately | $ 191.01 | ||||
| 31 | 240530811 | Pan-meat,w/o Graphics ,clear (Replaces: 240530803) |
|
Immediately | $ 150.86 | ||||
| 34 | 240385201 | Container,ice Bin |
|
$ 108.70 | |||||
| 42 | 240365401 | Track,meat Pan Hanger ,lh |
|
Immediately | $ 56.95 | ||||
| 42 | 240356501 | Track,meat Pan Hanger ,rh |
|
Immediately | $ 63.00 | ||||
| 47 | 240350609 | Insert-pan Cover,glass |
|
$ 180.33 | |||||
| 81 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 15.75 | |||||
| 123 | 215005101 | Screw,hanger/rlr Mtg ,8-10 X 7/16 |
|
$ 16.54 | |||||
| 136 | 241657701 | Dispenser-can,white |
|
$ 63.79 | |||||
| 141 | 241562101 | Shield-heat,mid Level |
|
$ 66.57 | |||||
| 142 | 241562202 | Shield-light Mid Level |
|
$ 76.23 | |||||
| 15A | 241552802 | Light Bulb |
|
Immediately | $ 56.05 | ||||
| 16A | 241622802 | Socket-light (Replaces: 241507803) |
|
$ 73.25 | |||||
| 22A | 240468202 | Tube,sensor Sleeve ,31 Inch ,plastic ,white |
|
$ 10.11 | |||||
| 24A | 240355261 | Shelf-``spill-safe``,fixed |
|
$ 168.53 | |||||
| 25B | 241613501 | Control-humidity,rh |
|
Immediately | $ 13.39 | ||||
| 25C | 241613502 | Control-humidity,lh |
|
$ 53.09 | |||||
| F14 | 241554901 | Switch-light/lamp |
|
$ 78.75 | |||||
| F16A | 241593901 | Harness-wiring |
|
$ 54.29 | |||||
| F21 | 241537103 | Control-temperature (Replaces: 5304445058) |
|
Immediately | $ 80.34 | ||||
| F23 | 215846602 | Timer,defrost ,60 Hz ,0.25 W ,120 V ,10 Hour/30 Min (Replaces: 215846606) |
|
Immediately | $ 31.33 | ||||
| NI | 5304535377 | Tape,aluminum ,3`` Wide (Replaces: 240570304) |
|
$ 34.84 | |||||
| NI | 241566801 | Harness-wiring,c/box M/level |
|
$ 59.96 | |||||
| NI | 5304455649 | Screw,pan Hd ,6-20 X 0.438 |
|
$ 18.90 | |||||
| NI | 241935555 | Energy Guide |
|
- |
