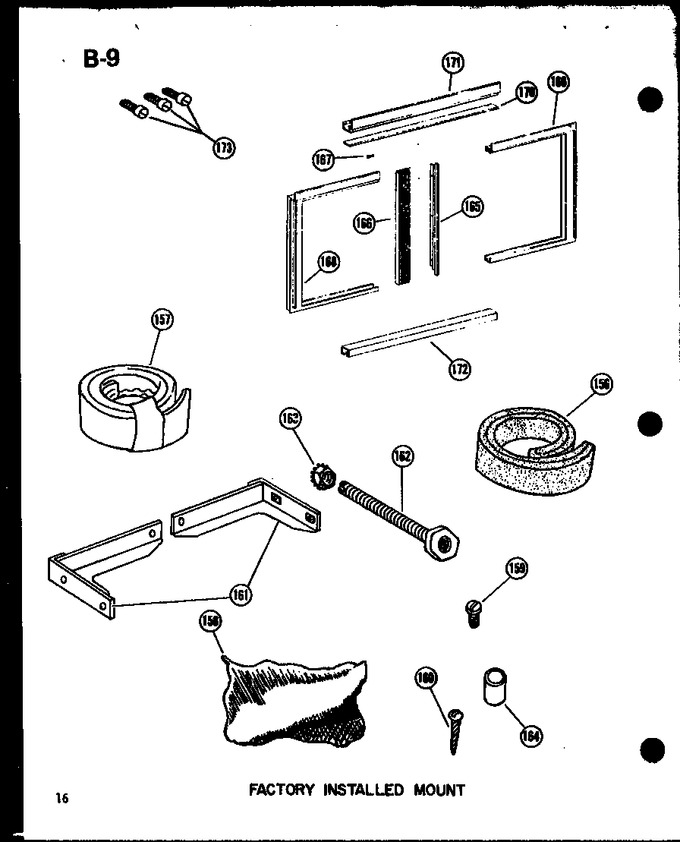

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 156 | A4660601 | Gasket, Sash Seal Strip |
|
- | |||||
| 157 | A3030302 | Gasket |
|
- | |||||
| 158 | B1139003 | Accessory Kit |
|
- | |||||
| 159 | M0206557 | Screw |
|
- | |||||
| 160 | M0212062 | Screw |
|
- | |||||
| 161 | C5872102 | Weldment, Angle Support, L.h. |
|
- | |||||
| 161 | C5872101 | Weldment, Angle Support, R.h. |
|
- | |||||
| 162 | M0200003 | Screw Adjusting |
|
- | |||||
| 163 | M0282019 | Nut-keps |
|
- | |||||
| 164 | A4065501 | Spacer K |
|
- | |||||
| 165 | B1124801 | Strip-backer |
|
- | |||||
| 166 | D5481201 | Curtain, Sliding Frame, 1 Each |
|
- | |||||
| 167 | M1250031 | Screw |
|
- | |||||
| 168 | D5481101 | Frame, Sliding, L.h. |
|
- | |||||
| 168 | C5905806 | Frame Assy |
|
- | |||||
| 169 | D5481102 | Frame, Sliding, R.h. |
|
- | |||||
| 169 | C5905805 | Frame Assy |
|
- | |||||
| 170 | A3030301 | Gasket (inch) |
|
- | |||||
| 171 | C5903404 | Top Rail-painted |
|
- | |||||
| 172 | B1124704 | Bottom Rail-painted |
|
- | |||||
| 173 | WP4312464 | Screw (Replaces: M0211029) |
|
$ 7.30 |
