SELECT A DIAGRAM

01 - Base Pan & Controls


02 - Compressor Parts


03 - Evap Parts

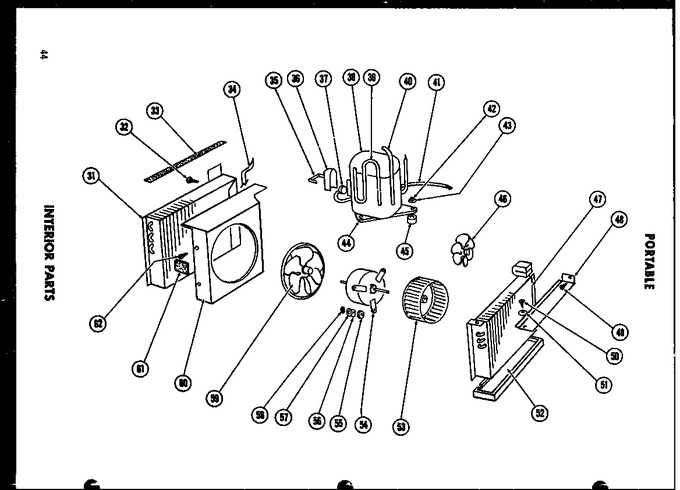

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
31	C5800401		Condenser Assy		Appelez-nous	-
32	W11233072		Screw   (Replaces: M0211631)			Immediately	$ 14.72
34	B4143102		Strainer		Appelez-nous	-
35	A4635901		Strap		Appelez-nous	-
36	B5150201		Terminal Cover		Appelez-nous	-
37	D4976645		Overload		Appelez-nous	-
38	M0400401		Compressor Ae5455e		Appelez-nous	-
39	C5801901		Tube, Suction		Appelez-nous	-
40	C5801801		Tube, Discharge		Appelez-nous	-
41	B5150301		Wiring Harness		Appelez-nous	-
42	A4588801		Sleeve		Appelez-nous	-
43	M0283610		Nut		Appelez-nous	-
44	C5801301		Mounting Plate		Appelez-nous	-
45	B4796301		Cord Set		Appelez-nous	-
46	C5801501		Fan Blade Evap		Appelez-nous	-
47	C5800101		Evaporator Assembly		Appelez-nous	-
49	W11233072		Use M0214931   (Replaces: M0211531)			Immediately	$ 14.72
50	W11233072		Screw   (Replaces: M0211631)			Immediately	$ 14.72
51	M0270509		Washer		Appelez-nous	-
52	D5403301		Filler Block		Appelez-nous	-
54	B5153802		Motor		Appelez-nous	-
55	M0500501		Grommet		Appelez-nous	-
56	M0270504		Washer		Appelez-nous	-
57	M0270519		Washer		Appelez-nous	-
58	M0282009		Nut				$ 14.07
59	C5801401		Fan, Condenser		Appelez-nous	-
60	D5401301		Shroud Condenser		Appelez-nous	-
61	A4639501		Baffle, Condenser		Appelez-nous	-
62	W11233072		Screw   (Replaces: M0211631)			Immediately	$ 14.72
NI	A3030323		Gasket, Cond. Base Pan Flange-		Appelez-nous	-
NI	M0281308		Nut		Appelez-nous	-
NI	W11233072		Screw   (Replaces: M0211631)			Immediately	$ 14.72
NI	A4636101		Spring		Appelez-nous	-
NI	M0110502		Clip		Appelez-nous	-
NI	A4636001		Gasket		Appelez-nous	-
NI	M0206116		Screw		Appelez-nous	-
NI	A4635601		Spring K		Appelez-nous	-
NI	A3030325		Gasket, Closure Plate Flange,		Appelez-nous	-
NI	M0102501		Clamp		Appelez-nous	-
NI	M0310008		Plug Button		Appelez-nous	-
NI	M0204563		Screw		Appelez-nous	-
NI	M0204506		Screw		Appelez-nous	-
NI	A3030301		Gasket (inch)		Appelez-nous	-
NI	B5153601		Wire, Ground		Appelez-nous	-
NI	B5195001		Retainer, Evaporator Shroud		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
