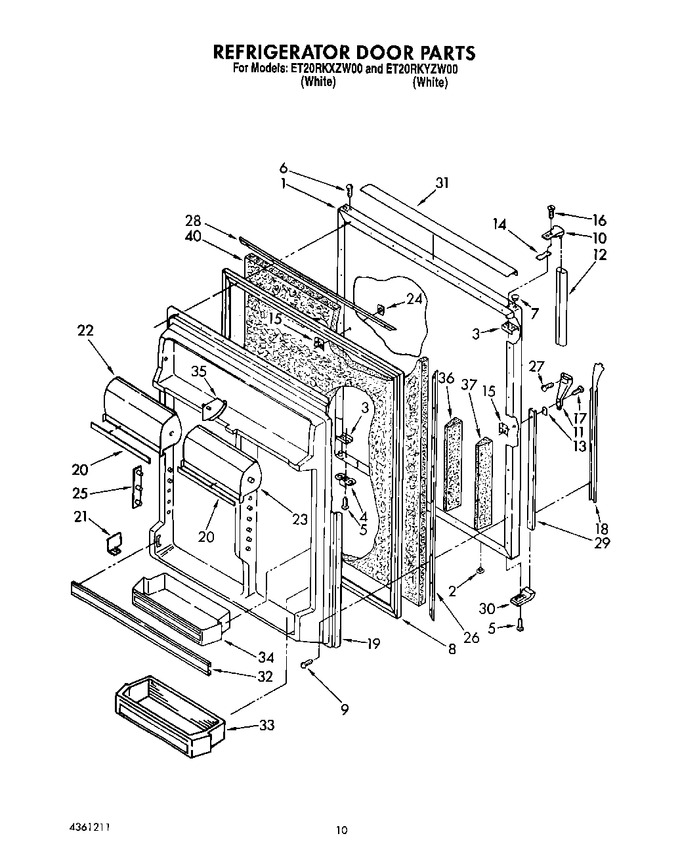

| 1 | 1122549 | Panel, Refrigerator Door (also Order Item 40) (white) |
|
- | |||||
| 2 | 534927 | Hole Plug (2) |
|
- | |||||
| 3 | 943185 | Plate, Tap (4) |
|
- | |||||
| 4 | 944036 | Bracket, Door Stop |
|
- | |||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 6 | WP8281206 | Screw, 8-15 X 1/2 (Replaces: 489028) |
|
$ 8.37 | |||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 8 | 2188450A | Door Gasket, Magnetic (Replaces: 2148565) |
|
$ 284.09 | |||||
| 9 | WPW10141645 | Screw (repair) (Replaces: 489084) |
|
$ 8.05 | |||||
| 9 | WP489069 | Screw, 7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 10 | 944157 | Handle End |
|
- | |||||
| 11 | 1109189 | Handle End, Side |
|
- | |||||
| 12 | 2150150 | Handle, Center |
|
- | |||||
| 13 | 935075 | Shim, Handle End (side) |
|
- | |||||
| 14 | 943188 | Spacer, Handle Door |
|
$ 7.80 | |||||
| 15 | WP939101 | Screw Anchor (2) (Replaces: 2151669) |
|
$ 7.88 | |||||
| 16 | WP488920 | Screw, 8 X 5/8 (Replaces: 489006) |
|
$ 7.98 | |||||
| 17 | WP488729 | Screw, 8 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 18 | 2150153 | Insert, Handle |
|
- | |||||
| 19 | 1126757 | Interior Door Panel |
|
- | |||||
| 20 | 1122750 | Trim, Door Compartment (2) |
|
- | |||||
| 21 | 2152335 | Divider, Door Shelf |
|
- | |||||
| 22 | 2148809 | Compartment Door, Left Side |
|
- | |||||
| 23 | 2148807 | Compartment Door, Right Side |
|
- | |||||
| 24 | WP2189000 | Hole Plug, Handle (white) (Replaces: 1122653) |
|
Immediately | $ 7.77 | ||||
| 25 | 1116986 | Pin Plate (8) |
|
$ 12.10 | |||||
| 26 | 1122551 | Retainer, Gasket |
|
- | |||||
| 27 | 489022 | Screw, 6-20 X 3/8 |
|
- | |||||
| 28 | 1122552 | Retainer, Gasket |
|
- | |||||
| 29 | 935871 | Retainer, Insert |
|
- | |||||
| 30 | 1105804 | Endcap, Insert Retainer |
|
- | |||||
| 31 | 1106148 | Trim, Door |
|
- | |||||
| 32 | 2148551 | Trim, Door Shelf |
|
- | |||||
| 33 | 2148549 | Bin, Door Shelf (2) |
|
- | |||||
| 34 | 2148550 | Bin, Door Shelf (deep) (2) |
|
- | |||||
| 35 | WP1118001 | Hinge Pin, Center (Replaces: 1118001) |
|
$ 8.06 | |||||
| 36 | 1122711 | Door Dike, Center |
|
- | |||||
| 37 | 1122709 | Door Dike, Side (2) |
|
- | |||||
| 40 | 876029 | Foam Insulation (required When Replacing Exterior Door Panel) |
|
- |
