Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 1116220 Shelf & Slide (freezer) Appelez-nous -
2 1119505 Trim, Shelf Appelez-nous -
3 1116216 Basket, Freezer Appelez-nous -
4 1119507 Trim, Basket Appelez-nous -
5 1119651 Divider Appelez-nous -
6 1106817 Slide, Ice Compartment Appelez-nous -
7 W11624204 Screw, 8 X 1/2   (Replaces: 486194) Special Order $ 14.72

8 1119508 Door, Ice Compartment Appelez-nous -
9 W11625904 Ice Cube Pan   (Replaces: 1119541) Special Order $ 67.83


    View Diagram in Separate Window     Print Icon   Print Part List

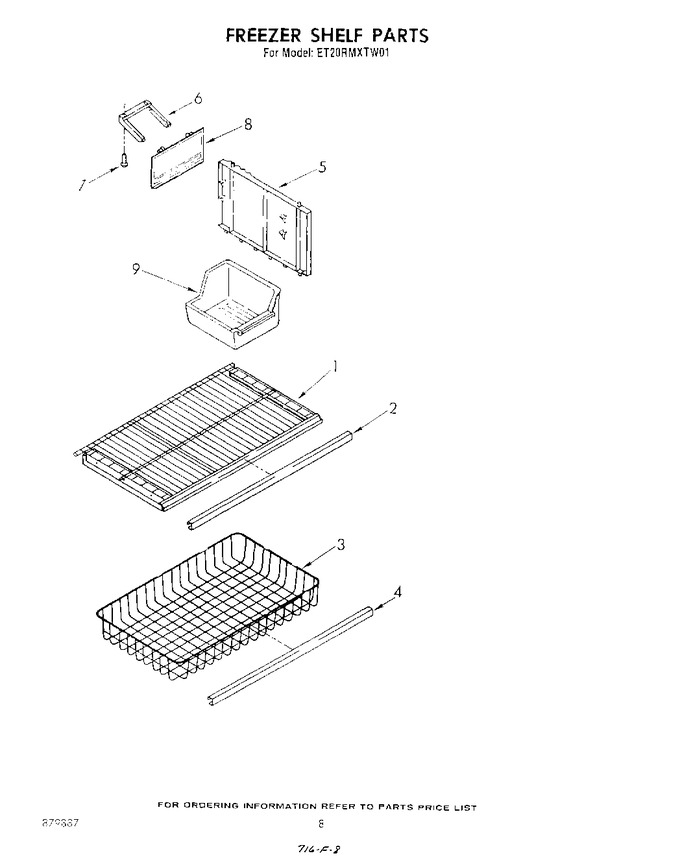

Diagram for ET20RMXTF01
