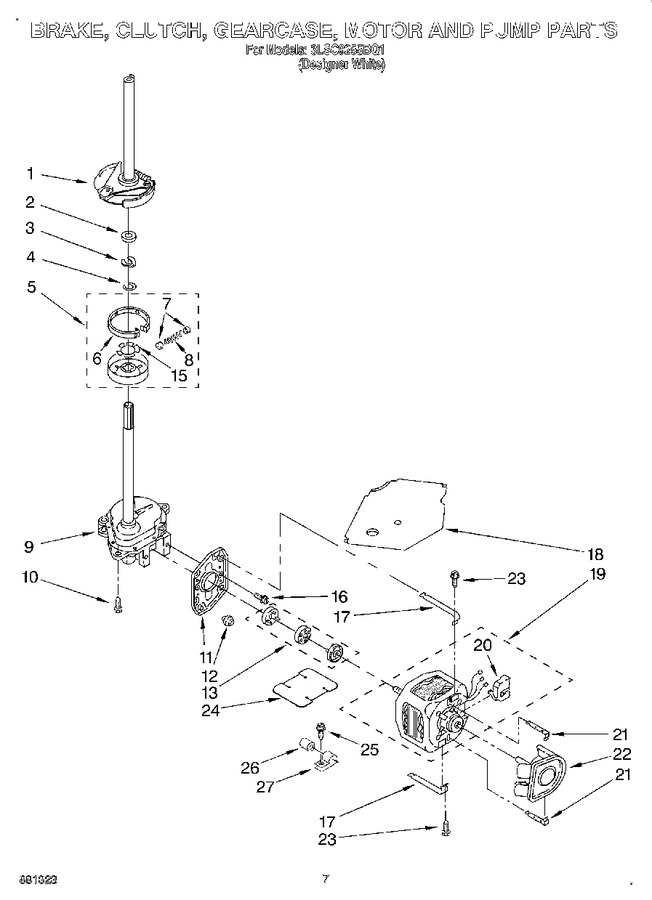

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10820043 | Brake & Drive Tube (complete) (refer To Brake & Drive Tube Parts Page For Further Breakdown) (Replaces: 388952) |
|
Immediately | $ 217.31 | ||||
| 2 | WP63292 | Washer, Spin Tube Thrust (Replaces: 63292) |
|
Immediately | $ 7.71 | ||||
| 3 | WPW10080230 | Ring, Spin Tube Support (Replaces: 62697) |
|
$ 12.02 | |||||
| 4 | 285353 | Ring, Retainer (Replaces: 63283) |
|
$ 8.11 | |||||
| 5 | 285785 | Clutch (complete) (Replaces: 3351343) |
|
Immediately | $ 68.02 | ||||
| 6 | 285790 | Band & Lining, Clutch (includes Illus. 7 & 8) (Replaces: 3946793) |
|
Immediately | $ 43.24 | ||||
| 7 | WP62646 | Cap, Clutch Spring (2) (Replaces: 62646) |
|
$ 7.55 | |||||
| 8 | WP3946792 | Spring, Clutch (Replaces: 3363337) |
|
$ 7.49 | |||||
| 9 | 3363395 | Gearcase (complete) (refer To Gearcase Parts Page For Further Breakdown) (Replaces: 3363361) |
|
$ 433.73 | |||||
| 10 | WP3400516 | Screw, Gearcase To Base (3) (Replaces: 3357334) |
|
Immediately | $ 7.19 | ||||
| 11 | WP62611 | Plate, Motor Mount To Gearcase (Replaces: 62611) |
|
$ 117.10 | |||||
| 12 | WP62691 | Grommet, Motor (4) (Replaces: 62691) |
|
$ 11.82 | |||||
| 13 | 285753A | Coupling, Motor & Isolation (Replaces: 3364003) |
|
Immediately | $ 25.90 | ||||
| 15 | WP3355454 | Clip, Anti-rattle (Replaces: 3355454) |
|
$ 7.84 | |||||
| 16 | WP3400516 | Screw (Replaces: 3357334) |
|
Immediately | $ 7.19 | ||||
| 17 | WPW10086010 | Retainer, Motor (2) (Replaces: 3349637) |
|
$ 7.94 | |||||
| 18 | W10838408 | Shield, Tub To Motor (Replaces: 3362089) |
|
$ 37.43 | |||||
| 19 | 3946895 | Motor, Main Drive |
|
- | |||||
| 20 | 62850 | Switch, Main Drive Motor |
|
- | |||||
| 21 | WP8546127 | Retainer, Pump (2) (Replaces: 62700) |
|
$ 8.14 | |||||
| 22 | WP3363892 | Pump (complete) (Replaces: 3363892) |
|
Immediately | $ 84.09 | ||||
| 23 | WP273556 | Screw, 10-16 X 5/8 (Replaces: 3387485) |
|
Immediately | $ 7.82 | ||||
| 24 | WP3946532 | Shield, Motor (Replaces: 3946532) |
|
$ 31.28 | |||||
| 25 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.82 | |||||
| 26 | WP8572717 | Capacitor (Replaces: 357021) |
|
Immediately | $ 80.14 | ||||
| 27 | 357030 | Clamp, Capacitor |
|
$ 21.09 |
