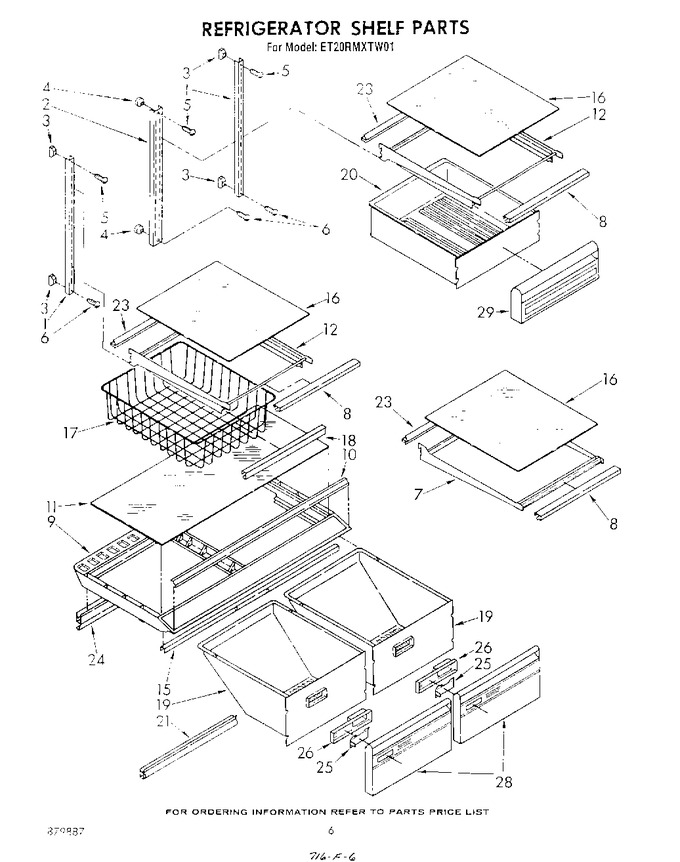

05 - Refrigerator Shelf


06 - Freezer Shelf


07 - Freezer Door


08 - Unit


09 - Refrigerator Door , Lit/optional


10 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114466		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (4)				$ 31.35
4	520959		Screw, Support Center (2)		Appelez-nous	-
5	489148		Screw, 8-32 X 1-1/4 (3)		Appelez-nous	-
5	488980		Screw (repair)		Appelez-nous	-
6	WP488163		Screw, 8 X 1-1/4 (3)   (Replaces: 488163)				$ 7.92
7	1110739		Shelf, Cantilever (2)		Appelez-nous	-
8	1119490		Trim, Shelf		Appelez-nous	-
9	1119640		Crisper Cover		Appelez-nous	-
10	1119480		Trim, Crisper Cover		Appelez-nous	-
11	1119481		Glass, Crisper Cover		Appelez-nous	-
12	1119493		Pan Shelf, Cantilever		Appelez-nous	-
15	WP2172748		Crisper, Support   (Replaces: 1106613)				$ 102.08
16	1119491		Shelf, Glass		Appelez-nous	-
17	1116217		Basket, Utility		Appelez-nous	-
18	1119500		Trim, Basket		Appelez-nous	-
19	1108688		Pan, Crisper		Appelez-nous	-
20	1108693		Pan, Meat		Appelez-nous	-
21	1116512		Crisper, Gasket Front		Appelez-nous	-
23	1106768		Reflector, Shelf		Appelez-nous	-
24	1105653		Crisper, Gasket Rear		Appelez-nous	-
25	1119486		Slide, Humidity Control		Appelez-nous	-
26	1119487		Housing, Humidity Control		Appelez-nous	-
28	1119484		Crisper, Pan Front		Appelez-nous	-
29	1119498		Meat Pan, Front		Appelez-nous	-
