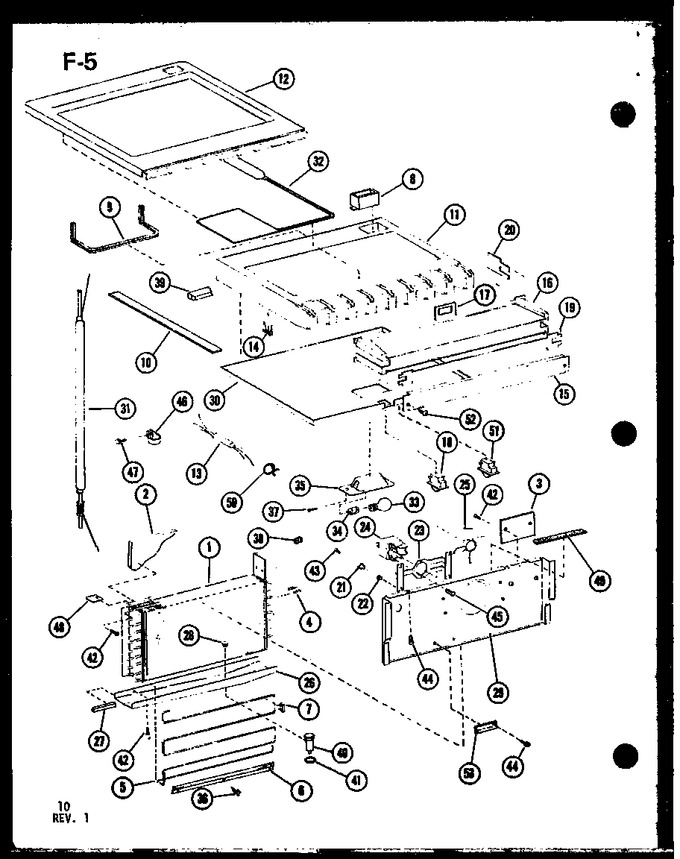

01 - Interior Parts
02 - Page 2
03 - Page 3
04 - Page 5
05 - Page 6
06 - Page 7
07 - Ref Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7321801 | Evaporator |
|
- | |||||
| 2 | B5692303 | Gasket-evap |
|
- | |||||
| 3 | B5762302 | Terminal Board |
|
- | |||||
| 4 | C8770402 | Thermostat |
|
- | |||||
| 5 | D7295601 | Heater-evap |
|
- | |||||
| 6 | B5763101 | Clamp-heat |
|
- | |||||
| 7 | M0110301 | Clip |
|
- | |||||
| 8 | B5762501 | Air Duct |
|
- | |||||
| 9 | M0900204 | Gasket-per Ft |
|
- | |||||
| 10 | B5757701 | Gasket, Sealing, Divider Block |
|
- | |||||
| 11 | D7327102 | Insulation |
|
- | |||||
| 12 | D7296001 | Bottom-ref |
|
- | |||||
| 13 | D7493201 | Wiring Harness |
|
- | |||||
| 14 | A3195601 | Clamp-wiring |
|
- | |||||
| 15 | C8807102 | Ctr Mullion C |
|
- | |||||
| 15 | C8807101 | Center Mullion, White |
|
- | |||||
| 15 | C8807103 | Ctr Mullion A |
|
- | |||||
| 15 | C8807104 | Ctr Mullion-g |
|
- | |||||
| 15 | C8807105 | Center Mull.-pnt |
|
- | |||||
| 16 | D7296902 | Breaker Mullion |
|
- | |||||
| 17 | B5770801 | Barrier-mullion |
|
- | |||||
| 18 | 18805 | Switch (Replaces: C3680306) |
|
$ 21.59 | |||||
| 19 | C8777701 | Center Heater Kit |
|
- | |||||
| 20 | B5763701 | Gasket-mullion |
|
- | |||||
| 21 | YA0381501 | Clip, Waterline |
|
- | |||||
| 22 | A0381401 | Eyelet K |
|
- | |||||
| 23 | C3681601 | Bracket |
|
- | |||||
| 24 | D7241406 | Motor |
|
- | |||||
| 25 | B5739301 | Fan Blade |
|
- | |||||
| 26 | D7296801 | Drip Tray |
|
- | |||||
| 27 | B5764901 | Gasket |
|
- | |||||
| 28 | A3113702 | Drain Screen |
|
- | |||||
| 29 | D7296701 | Orifice Plate |
|
- | |||||
| 30 | D7296301 | Top-fr |
|
- | |||||
| 31 | D7324802 | Heat Ex |
|
- | |||||
| 32 | D7374201 | Hot Gas Loop |
|
- | |||||
| 33 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 34 | C8708801 | Socket-light |
|
- | |||||
| 35 | C8758501 | Housing-light |
|
- | |||||
| 37 | 67006425 | Screw (Replaces: M0230917) |
|
Immediately | $ 7.30 | ||||
| 38 | B5733302 | Clip, Ground |
|
- | |||||
| 39 | B5757804 | Gasket, Sealing |
|
- | |||||
| 40 | B5758502 | Drain Tube |
|
- | |||||
| 41 | B5766401 | Plug Button |
|
- | |||||
| 42 | M0212932 | Screw |
|
- | |||||
| 43 | M0233106 | Screw |
|
- | |||||
| 44 | WP489464 | Screw A (Replaces: M0236717) |
|
Immediately | $ 8.38 | ||||
| 45 | WP3400094 | Screw (Replaces: M0258055) |
|
$ 9.26 | |||||
| 46 | B5794201 | Clamp |
|
- | |||||
| 47 | M0210916 | Screw |
|
- | |||||
| 48 | B5771301 | Cover-evap Block |
|
- | |||||
| 49 | A3030301 | Gasket (inch) |
|
- | |||||
| 50 | M0585203 | Tie, Wire |
|
- | |||||
| 51 | W11384469 | Switch (Replaces: C3680304) |
|
Immediately | $ 39.09 | ||||
| 52 | R9800670 | Kit, Screw (Replaces: M0257244) |
|
$ 10.58 | |||||
| 53 | B5754001 | Clamp, Control Bulb |
|
- |
