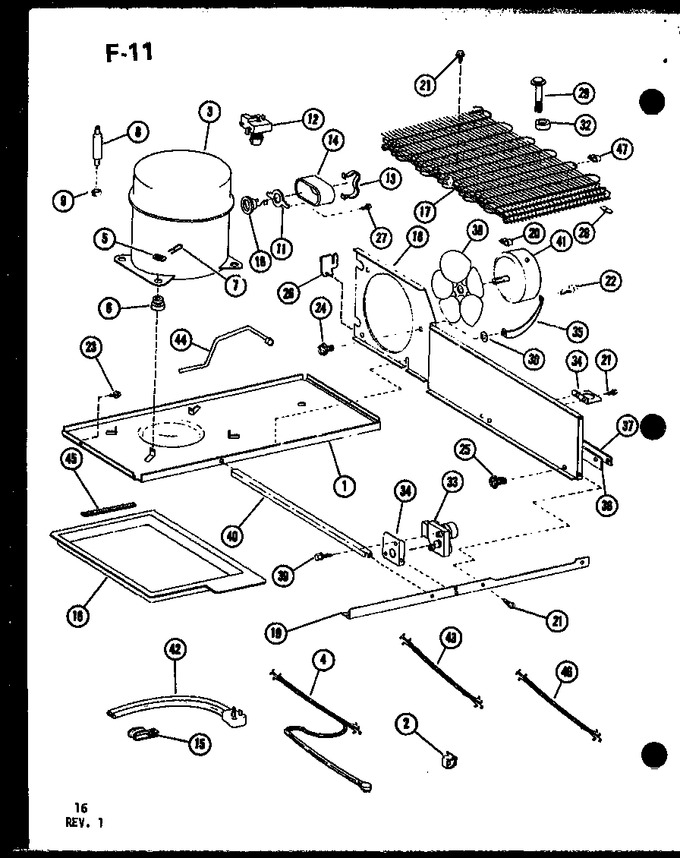

ESBFC16EG (BOM: P7493502W G) | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	D7336902	Support-comp	Appelez-nous	-
2	M0110505	Clip-cable	Appelez-nous	-
3	D7507251	Kit, Compressor (dan Nf7ak)	Appelez-nous	-
4	D7388801	Wiring Harness	Appelez-nous	-
5	M0590101	Washer, Nylon K	Appelez-nous	-
6	A3026101	Grommet K	Appelez-nous	-
7	A3140801	Clip K	Appelez-nous	-
8	WPB2150504	Drier (Replaces: B5715001)			$ 136.98
9	M0104001	Clamp,drier	Appelez-nous	-
10	C8866901	Overload	Appelez-nous	-
11	A3043601	Spring K	Appelez-nous	-
12	C3553401	Relay	Appelez-nous	-
13	A3041801	Strap K	Appelez-nous	-
14	B0559501	Cover K	Appelez-nous	-
15	M0103901	Clamp	Appelez-nous	-
16	D7001001	Pan, Drain	Appelez-nous	-
17	D7577202	Cond Assy	Appelez-nous	-
18	D7532402	Fan Shroud Pntd	Appelez-nous	-
19	D7335101	Front Rail	Appelez-nous	-
21	WP90767	Screw, Sm (Replaces: M0211016)		Immediately	$ 8.25
22	M0220101	Screw	Appelez-nous	-
23	M0233844	Screw, T F	Appelez-nous	-
24	M0221332	Screw, Shoulder	Appelez-nous	-
25	WP489399	Screw (Replaces: M0233103)			$ 7.30
26	B5791401	Retainer Suction Lin	Appelez-nous	-
27	M0253916	Screw	Appelez-nous	-
28	M0286003	Nut A	Appelez-nous	-
29	M0257092	Screw	Appelez-nous	-
30	M0500107	Grommet K	Appelez-nous	-
32	B8346302	Spacer Cond A	Appelez-nous	-
33	D7004111	Timer-defrost	Appelez-nous	-
34	C8791502	Brkt-def Timer	Appelez-nous	-
35	B0598701	Bracket, Cond Motor	Appelez-nous	-
36	B8314103	Seal Fan Shroud	Appelez-nous	-
38	B5772301	Fan Blade K	Appelez-nous	-
39	M0230017	Screw,tc	Appelez-nous	-
40	C8792002	Side Rail	Appelez-nous	-
41	833697	Motor, Fan (Replaces: C8809801)		Immediately	$ 88.15
42	R0157154	Power Cord	Appelez-nous	-
43	D7334201	Wiring Harness	Appelez-nous	-
44	D7329501	Drain Tube	Appelez-nous	-
45	B5691701	Pad A	Appelez-nous	-
46	D7300301	Wiring Harness	Appelez-nous	-
47	M0102301	Clamp	Appelez-nous	-
