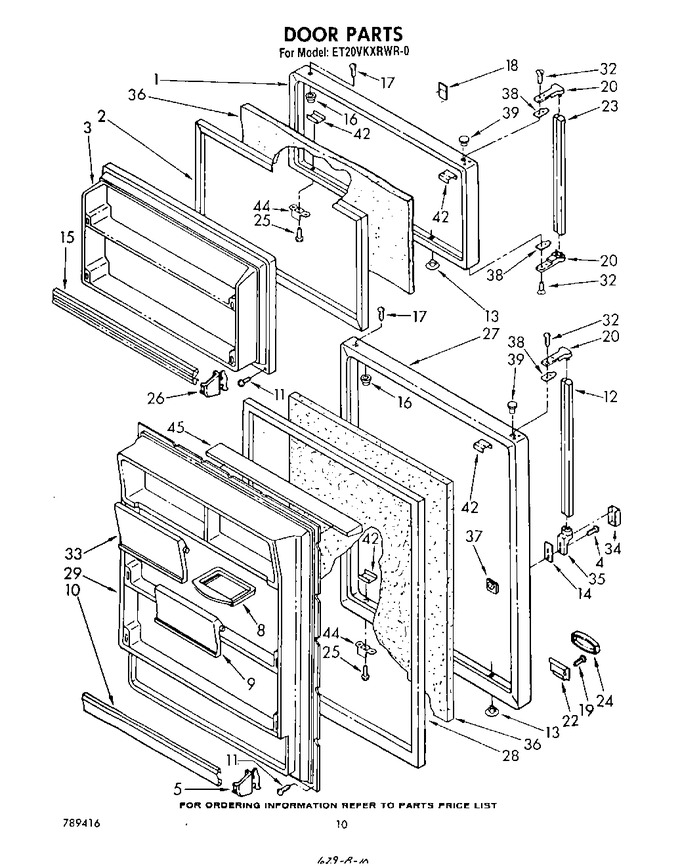

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 944318 | Door, Freezer (also Order Item 36) (almond) |
|
- | |||||
| 1 | 944316 | Door, Freezer (also Order Item 36) (golden Harvest) |
|
- | |||||
| 1 | 944315 | Door, Freezer (also Order Item 36) (coffee) |
|
- | |||||
| 1 | 944314 | Door, Freezer (also Order Item 36) (white) |
|
- | |||||
| 1 | 1103194 | Door, Freezer (also Order Item 36) (platinum) |
|
- | |||||
| 1 | 1103193 | Door, Freezer (also Order Item 36) (toast) |
|
- | |||||
| 2 | 2188460A | Gasket, Freezer Door (Replaces: 945833) |
|
$ 231.51 | |||||
| 3 | 945208 | Panel, Interior |
|
- | |||||
| 4 | WPW10141645 | Screw, 8 X 1/2 (Replaces: 489084) |
|
$ 8.05 | |||||
| 5 | WP849996 | Retainer, Trim (4) (Replaces: 849996) |
|
$ 7.95 | |||||
| 8 | 520747 | Tray, Butter |
|
- | |||||
| 9 | 1108977 | Door, Butter |
|
- | |||||
| 10 | 1108975 | Trim, Shelf (2) |
|
- | |||||
| 11 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 11 | WP489069 | Screw, 7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 12 | 1108942 | Handle, Center |
|
- | |||||
| 12 | 1109181 | Handle, Center (for Platinum Model Only |
|
- | |||||
| 13 | 534927 | Plug, Hole (2) |
|
- | |||||
| 14 | 935076 | Shim, Handle |
|
- | |||||
| 15 | 986542 | Trim, Shelf (2) |
|
- | |||||
| 16 | 509929 | Cap, Hinge Sleeve |
|
- | |||||
| 17 | WP8281206 | Screw, 8-15 X 1/2 (Replaces: 489028) |
|
$ 8.37 | |||||
| 18 | 1110077 | Nameplate (for Platinum Model Only) |
|
- | |||||
| 18 | 1106060 | Nameplate |
|
- | |||||
| 19 | WP488729 | Screw, 8 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 20 | 944157 | Cap, Handle (3) |
|
- | |||||
| 22 | 843213 | Clip, Medallion |
|
- | |||||
| 23 | 1108983 | Handle, Center (for Platinum Model Only) |
|
- | |||||
| 23 | 1108981 | Handle, Center |
|
- | |||||
| 24 | 1100194 | Medallion (toast) |
|
- | |||||
| 24 | 989903 | Medallion (golden Harvest) |
|
- | |||||
| 24 | 989904 | Medallion (almond) |
|
- | |||||
| 24 | 1100195 | Medallion (platinum) |
|
- | |||||
| 24 | 848382 | Medallion (white) |
|
- | |||||
| 24 | 989901 | Medallion (coffee) |
|
- | |||||
| 25 | 488930 | Screw (repair) |
|
- | |||||
| 25 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 26 | WP986540 | Retainer, Trim (4) (Replaces: 986540) |
|
$ 8.07 | |||||
| 27 | 944309 | Door, Refrigerator (also Order Item 36) (coffee) |
|
- | |||||
| 27 | 944310 | Door, Refrigerator (also Order Item 36) (golden Harvest) |
|
- | |||||
| 27 | 944312 | Door, Refrigerator (also Order Item 36) (almond) |
|
- | |||||
| 27 | 944308 | Door, Refrigerator (also Order Item 36) (white) |
|
- | |||||
| 27 | 1103191 | Door, Refrigerator (also Order Item 36) (toast) |
|
- | |||||
| 27 | 1103192 | Door, Refrigerator (also Order Item 36) (platinum) |
|
- | |||||
| 28 | 2188450A | Gasket, Refrigerator Door (Replaces: 945832) |
|
$ 284.09 | |||||
| 29 | 945207 | Panel, Interior |
|
- | |||||
| 32 | WP488920 | Screw, 8 X 5/8 (Replaces: 488920) |
|
$ 7.98 | |||||
| 32 | 488923 | Screw (repair) |
|
- | |||||
| 33 | 1108978 | Door, Utility |
|
- | |||||
| 34 | 987873 | Cover, End Cap |
|
- | |||||
| 35 | 935105 | Cap, Handle |
|
$ 32.80 | |||||
| 36 | 876029 | Kit, Foam Slab (required When Replacing Exterior Door Panel) |
|
- | |||||
| 37 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.88 | |||||
| 38 | 943188 | Spacer |
|
$ 7.80 | |||||
| 39 | 989892 | Plug, Hole (coffee) |
|
- | |||||
| 39 | 989196 | Plug, Hole (almond) |
|
- | |||||
| 39 | 1100188 | Hole Plug (toast) |
|
- | |||||
| 39 | 1100189 | Hole Plug (platinum) |
|
- | |||||
| 39 | WP2212648 | Plug, Hole (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 39 | WP2212648 | Plug, Hole (golden Harvest) (Replaces: 989893) |
|
Immediately | $ 8.19 | ||||
| 42 | 943185 | Plate, Tap (4) |
|
- | |||||
| 44 | 944036 | Bracket, Door Stop |
|
- | |||||
| 45 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 45 | 285368 | Enamel, Platinum (1 Qt. Uncut) |
|
- | |||||
| 45 | 833938 | Kit, Terminal Connector |
|
$ 8.47 | |||||
| 45 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 | |||||
| 45 | 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 243.14 | |||||
| 45 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | ||||
| 45 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | ||||
| 45 | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| 45 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 45 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | |||||
| 45 | 350956 | Xenamel, Almond (13 Oz. Spray Can) |
|
$ 54.01 | |||||
| 45 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 45 | 849802 | Support, Dike Top |
|
- | |||||
| 45 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | ||||
| 45 | 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | |||||
| 45 | 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 243.14 | |||||
| 45 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 45 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 51.75 | |||||
| 45 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 82.37 | |||||
| 45 | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 45 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 45 | 799908 | Silicone (spray) |
|
- | |||||
| 45 | 350942 | Primer White (13 Oz. Spray Can) |
|
$ 94.14 | |||||
| 45 | 350941 | Leveler, Enamel (13 Oz. Spray Can) |
|
- | |||||
| 45 | 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 59.89 | |||||
| 45 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | ||||
| 45 | 261886 | Enamel, Coffee (13 Oz. Spray Can) |
|
- | |||||
| 45 | 261890 | Xenamel, Gold (13 Oz. Spray Can) |
|
- | |||||
| 45 | 285365 | Paint, Spray (13 Oz.) (toast) |
|
- | |||||
| 45 | 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | |||||
| 45 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 109.25 | |||||
| 45 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | |||||
| 45 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 45 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 117.11 | |||||
| 45 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 45 | 261887 | Enamel, Coffee (1 Qt. Uncut) |
|
- | |||||
| 45 | 261891 | Enamel, Gold (1 Qt. Uncut) |
|
- | |||||
| 45 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 45 | 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | |||||
