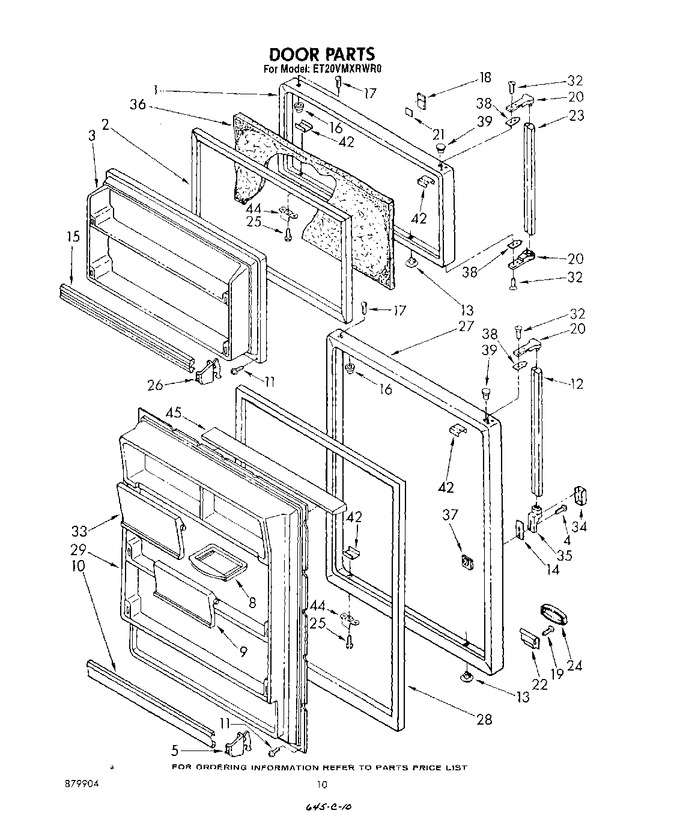

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 944316 | Door, Freezer (also Order Item 36) (golden Harvest) |
|
- | |||||
| 1 | 1103194 | Door, Freezer (also Order Item 36) (platinum) |
|
- | |||||
| 1 | 1103193 | Door, Freezer (also Order Item 36) (toast) |
|
- | |||||
| 1 | 944314 | Door, Freezer (also Order Item 36) (white) |
|
- | |||||
| 1 | 944318 | Door, Freezer (also Order Item 36) (almond) |
|
- | |||||
| 2 | 2188460A | Gasket, Freezer Door (Replaces: 945833) |
|
$ 231.51 | |||||
| 3 | 945208 | Panel, Interior |
|
- | |||||
| 4 | WPW10141645 | Screw, 8 X 1/2 (Replaces: 489084) |
|
$ 8.05 | |||||
| 5 | WP849996 | Retainer, Trim (4) (Replaces: 849996) |
|
$ 7.95 | |||||
| 8 | 520747 | Tray, Butter |
|
- | |||||
| 9 | 1108977 | Door, Butter |
|
- | |||||
| 10 | 1108975 | Trim, Shelf (2) |
|
- | |||||
| 11 | WP489069 | Screw, 7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 11 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 12 | 1109181 | Handle, Center (for Platinum Model Only |
|
- | |||||
| 12 | 1108942 | Handle, Center |
|
- | |||||
| 13 | 989197 | Plug, Hole (almond) |
|
- | |||||
| 13 | 534927 | Plug, Hole (white) |
|
- | |||||
| 13 | 989879 | Plug, Hole (golden Harvest) |
|
- | |||||
| 13 | 1100196 | Hole Plug (toast) |
|
- | |||||
| 13 | 1100197 | Hole Plug (platinum) |
|
- | |||||
| 14 | 935076 | Shim, Handle |
|
- | |||||
| 15 | 986542 | Trim, Shelf (2) |
|
- | |||||
| 16 | 509929 | Cap, Hinge Sleeve |
|
- | |||||
| 17 | WP8281206 | Screw, 8-15 X 1/2 (Replaces: 489028) |
|
$ 8.37 | |||||
| 18 | 945120 | Nameplate |
|
- | |||||
| 19 | WP488729 | Screw, 8 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 20 | 944157 | Cap, Handle (3) |
|
- | |||||
| 21 | 991259 | Tape Strip |
|
- | |||||
| 22 | 843213 | Clip, Medallion |
|
- | |||||
| 23 | 1111549 | Handle, Center (for Platinum Model Only) |
|
- | |||||
| 23 | 1108981 | Handle, Center |
|
- | |||||
| 24 | 1100194 | Medallion (toast) |
|
- | |||||
| 24 | 1100195 | Medallion (platinum) |
|
- | |||||
| 24 | 989904 | Medallion (almond) |
|
- | |||||
| 24 | 989903 | Medallion (golden Harvest) |
|
- | |||||
| 24 | 848382 | Medallion (white) |
|
- | |||||
| 25 | 488930 | Screw (repair) |
|
- | |||||
| 25 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 26 | WP986540 | Retainer, Trim (4) (Replaces: 986540) |
|
$ 8.07 | |||||
| 27 | 1103191 | Door, Refrigerator (toast) |
|
- | |||||
| 27 | 944312 | Door, Refrigerator (almond) |
|
- | |||||
| 27 | 1103192 | Door, Refrigerator (platinum) |
|
- | |||||
| 27 | 944308 | Door, Refrigerator (white) |
|
- | |||||
| 27 | 944310 | Door, Refrigerator (golden Harvest) |
|
- | |||||
| 28 | 2188450A | Gasket, Refrigerator Door (Replaces: 945832) |
|
$ 284.09 | |||||
| 29 | 945207 | Panel, Interior |
|
- | |||||
| 32 | WP488920 | Screw, 8 X 5/8 (Replaces: 488920) |
|
$ 7.98 | |||||
| 32 | 488923 | Screw (repair) |
|
- | |||||
| 33 | 1108978 | Door, Utility |
|
- | |||||
| 34 | 987873 | Cover, End Cap |
|
- | |||||
| 35 | 935105 | Cap, Handle |
|
$ 32.80 | |||||
| 36 | 876029 | Kit, Foam Slab (required When Replacing Exterior Door Panel) |
|
- | |||||
| 37 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.88 | |||||
| 38 | 943188 | Spacer |
|
$ 7.80 | |||||
| 39 | 1100188 | Hole Plug (toast) |
|
- | |||||
| 39 | WP2212648 | Plug, Hole (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 39 | 989196 | Plug, Hole (almond) |
|
- | |||||
| 39 | 1100189 | Hole Plug (platinum) |
|
- | |||||
| 39 | WP2212648 | Plug, Hole (golden Harvest) (Replaces: 989893) |
|
Immediately | $ 8.19 | ||||
| 42 | 943185 | Plate, Tap (4) |
|
- | |||||
| 44 | 944036 | Bracket, Door Stop |
|
- | |||||
| 45 | 849802 | Support, Dike Top |
|
- |
