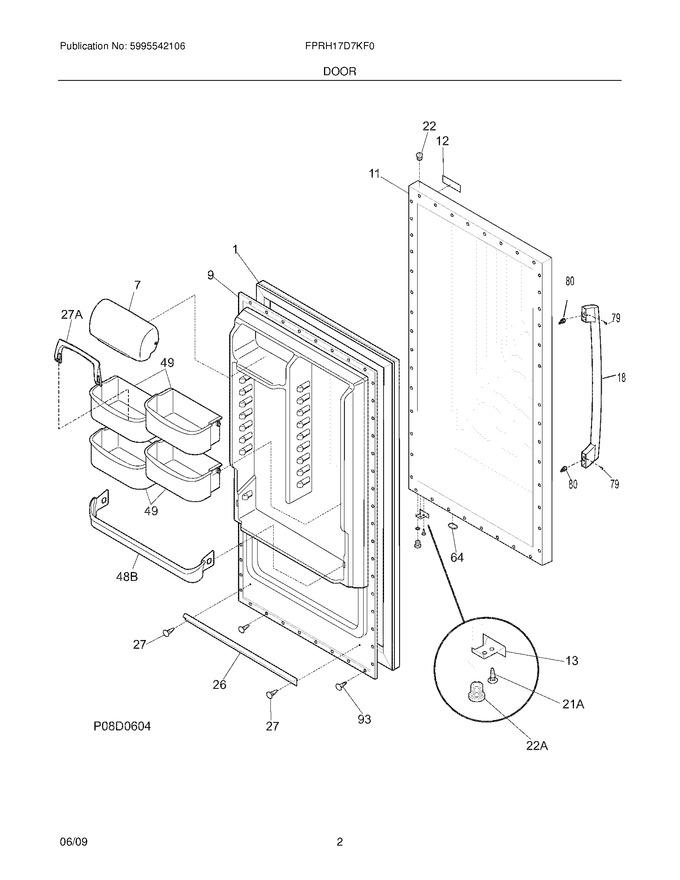

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304507206 | Gasket-door,black (Replaces: 216522311) |
|
Immediately | $ 207.49 | ||||
| 7 | 240338313 | Door,dairy ,clear |
|
Immediately | $ 89.78 | ||||
| 9 | 216953600 | Panel-inner Door,refr |
|
$ 226.01 | |||||
| 11 | 297316517 | Panel-outer Door,stainless |
|
$ 452.71 | |||||
| 12 | 242015101 | Label-nameplate |
|
$ 5.06 | |||||
| 13 | 297257000 | Door Stop,chrome ,rh/lh |
|
$ 18.48 | |||||
| 18 | 241972501 | Handle-door,stainless |
|
$ 227.22 | |||||
| 22 | 216970802 | Bearing,hinge W/o`ring ,top (Replaces: 216970800) |
|
Immediately | $ 12.05 | ||||
| 26 | 216524201 | Gasket,secondary |
|
$ 55.13 | |||||
| 27 | 5304472186 | Clip,panel Mtg |
|
$ 12.85 | |||||
| 49 | 216959802 | Bin-door,2-liter ,(4) |
|
Immediately | $ 92.77 | ||||
| 64 | 216403700 | Plug-button,hole Filler ,door Base |
|
$ 64.58 | |||||
| 79 | 218755401 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 27.80 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 20.67 | ||||
| 93 | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5304460605) |
|
Immediately | $ 12.05 | ||||
| 21A | 297197500 | Screw,door Stop Mtg ,fh38-16x.750 ,p Twin |
|
$ 16.07 | |||||
| 22A | 297006800 | Bearing-hinge,btm, W/o`ring |
|
$ 13.66 | |||||
| 27A | 240396102 | Retainer,tall Bottle |
|
$ 21.26 | |||||
| 48B | 240338001 | Bin-door,pseudo ,gallon ,refr |
|
Immediately | $ 38.84 | ||||
| NI | 5304406520 | Clip,panel Mtg Kit ,(40) |
|
$ 139.81 | |||||
| NI | 240537301 | Nut-anchor,door Hdl Screw |
|
$ 12.60 | |||||
| NI | 297048000 | Screw,anchor ,no.8 ,white |
|
$ 13.39 |
