SELECT A DIAGRAM

01 - Cabinet, Literature

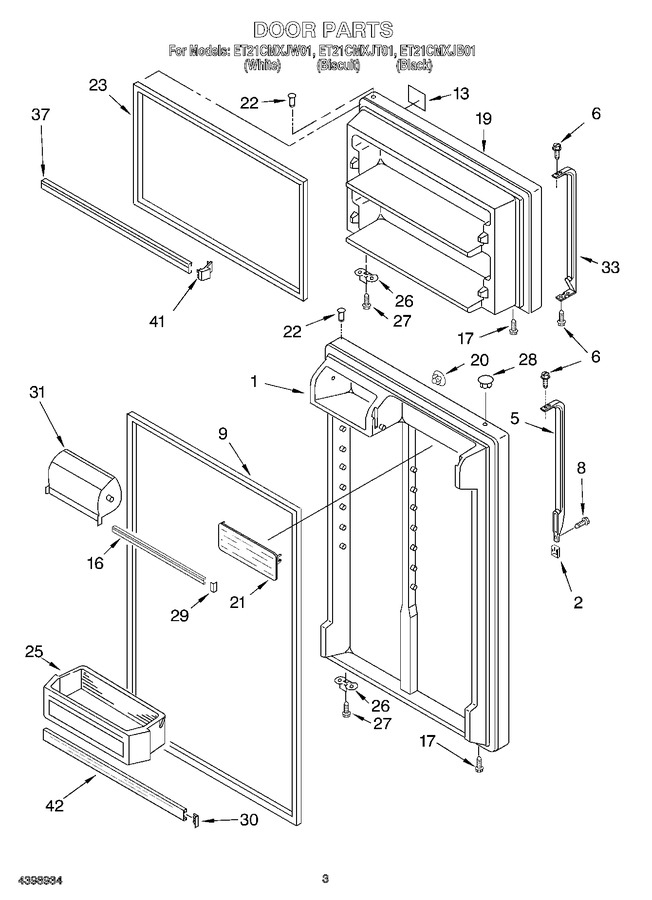

02 - Door


03 - Liner


04 - Unit


05 - Shelf, Optional


06 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11023679		Refrigerator Door (includes No.9 & No.22) (white)   (Replaces: 2183920)				$ 758.35
1	W11023688		Refrigerator Door (includes No.9 & No.22) (biscuit)   (Replaces: 2205284)		Appelez-nous	-
1	W11023687		Refrigerator Door (includes No.9 & No.22) (black)   (Replaces: 2200714)				$ 805.44
2	2193353B		Handle, Trim (black)				$ 5.85
2	2193353T		Handle, Trim (biscuit)		Appelez-nous	-
2	WP2193353W		Handle, Trim (white)   (Replaces: 2193353W)				$ 8.52
5	4388947		Handle Center (white)   (Replaces: 2193351W)				$ 204.47
5	2193351T		Handle Center (biscuit)		Appelez-nous	-
5	4388950		Handle Center (black)   (Replaces: 2193351B)				$ 235.81
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
8	WP8281146		Screw   (Replaces: 8281146)				$ 8.18
9	2177311		Door Gasket, Magnetic (black)				$ 330.95
9	2159061		Door Gasket, Magnetic (mist Beige)			Immediately	$ 183.67
13	2200944		Nameplate (black)		Appelez-nous	-
13	2175383		Nameplate (white)		Appelez-nous	-
13	2205769		Nameplate (biscuit Model)		Appelez-nous	-
16	WP2201061		Trim, Door Shelf   (Replaces: 2195378)				$ 124.32
17	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
19	W11023687		Freezer Door (includes No.22 & No.23) (black)   (Replaces: 2200711)				$ 805.44
19	W11023679		Freezer Door (includes No.22 & No.23) (white)   (Replaces: 2182489)				$ 758.35
19	W11023688		Freezer Door (includes No.22 & No.23) (biscuit)   (Replaces: 2205280)		Appelez-nous	-
20	WP2200936		Hole Plug (biscuit)   (Replaces: 2200936)				$ 7.97
20	WP2189009		Hole Plug (black)   (Replaces: 2189009)				$ 7.61
20	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 7.77
21	WP2188236		Shelf, Flip-up   (Replaces: 2188236)				$ 64.38
22	WP2188236		Thimble   (Replaces: 2188236)				$ 64.38
23	2159060		Door Gasket, Magnetic (mist Beige)				$ 336.01
23	2177310		Door Gasket, Magnetic (black)				$ 335.31
25	WP2204812		Bin, Door Shelf   (Replaces: 2195395)				$ 80.45
26	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 13.37
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
28	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
28	WP2212649		Hole Plug (biscuit)   (Replaces: 2200934)				$ 7.99
28	WP2212651		Hole Plug (black)   (Replaces: 2160808)				$ 24.21
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 8.03
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
31	WP2218118		Door, Compartment   (Replaces: 2188397)				$ 81.92
33	4388950		Handle, F.c. (black)   (Replaces: 2193350B)				$ 235.81
33	2193350T		Handle, F.c. (biscuit)		Appelez-nous	-
33	4388947		Handle, F.c. (white)   (Replaces: 2193350W)				$ 204.47
37	2195947		Trim-door (2)				$ 50.94
41	WP2195916K		Endcap (4)   (Replaces: 2195916)			Immediately	$ 13.18
42	WPW10421486		Trim, Door   (Replaces: 2195948)				$ 114.74

    View Diagram in Separate Window       Print Part List
