SELECT A DIAGRAM

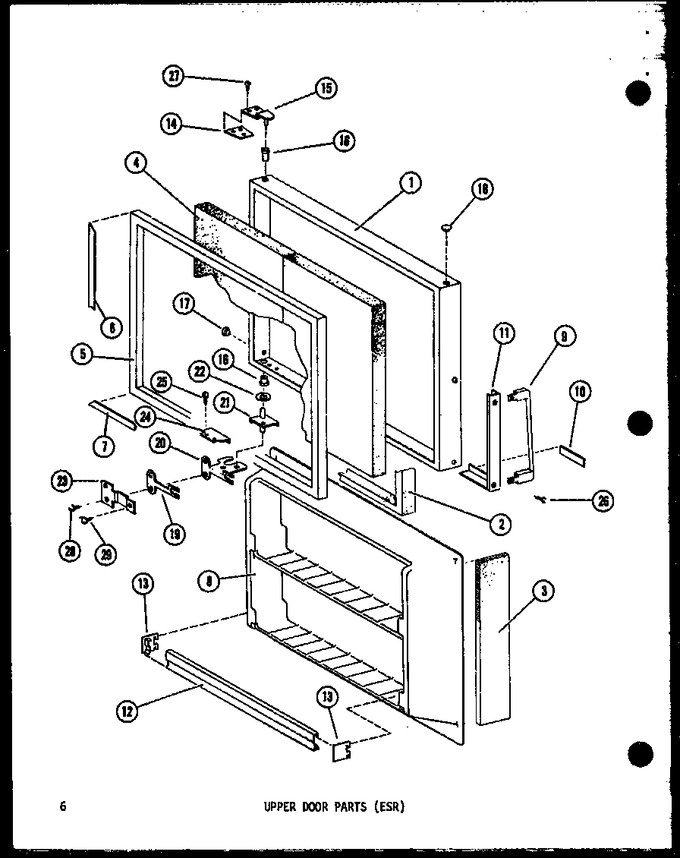

01 - Compressor Parts (esr)


02 - Fz-ref Parts (esr)


03 - Lower Parts (esr)


04 - Upper Door Parts (esr)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7274934		Door Fr-l-p-esr512		Appelez-nous	-
1	D7274904		Door Fr-g-p-esrf14		Appelez-nous	-
1	D7274903		Door Fr-a-p-esrf14		Appelez-nous	-
1	D7274902		Door Fr-c-p-esrf14		Appelez-nous	-
1	D7274901		Upper Door Weldment, White		Appelez-nous	-
2	B0523563		Insulation Ft. K		Appelez-nous	-
3	B5629037		Insulation		Appelez-nous	-
4	C8767001		Foam Slab		Appelez-nous	-
5	D3928219		Gasket		Appelez-nous	-
6	D3928114		Retainer-gasket		Appelez-nous	-
7	D3928118		Retainer-gasket		Appelez-nous	-
8	D7263101		Inner Dr Panel		Appelez-nous	-
9	D7254201		Handle		Appelez-nous	-
10	C8757303		Nameplate		Appelez-nous	-
11	D7257902		Handle Pad Kit		Appelez-nous	-
12	D3976727		Retainer-package		Appelez-nous	-
13	C3680903		Support K		Appelez-nous	-
13	C3680904		Support K		Appelez-nous	-
14	A3270301		Shim, Top Hinge		Appelez-nous	-
14	A3270303		Shim Kit		Appelez-nous	-
14	A3270302		Shim-top Hinge K		Appelez-nous	-
15	B5744301		Hinge		Appelez-nous	-
16	C3652901		Bushing, Hinge Pin		Appelez-nous	-
16	C3652902		Bushing		Appelez-nous	-
17	M0310715		Plug		Appelez-nous	-
17	WP67001130		Plug   (Replaces: M0310705)			Immediately	$ 5.98
17	M0310706		Plug		Appelez-nous	-
17	M0310707		Plug		Appelez-nous	-
17	M0310708		Plug		Appelez-nous	-
18	M0310601		Plug		Appelez-nous	-
18	M0310603		Plug Button, Hinge Bushing Avo		Appelez-nous	-
18	M0310606		Plug		Appelez-nous	-
18	M0310602		Plug		Appelez-nous	-
18	M0310604		Plug Button, Hinge Bushing Aut		Appelez-nous	-
19	A3143502		Shim K		Appelez-nous	-
19	A3143501		Shim K		Appelez-nous	-
19	A3143503		Shim K		Appelez-nous	-
20	B5742801		Center Hinge Assy		Appelez-nous	-
21	B5750901		Center Hinge Assy		Appelez-nous	-
22	A3145101		Washer K		Appelez-nous	-
23	B5740902		Kit, Tap Plate & Screw		Appelez-nous	-
24	A3139801		Stop Door		Appelez-nous	-
25	M0205631		Machine Screw		Appelez-nous	-
26	M0222317		Screw		Appelez-nous	-
27	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58
28	M0226831		Screw		Appelez-nous	-
29	M0254231		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
